Pump
Cast iron pump body and support
Stainless steel/Brass/PPO impeller
Max.liquid temperature: +40 ℃
Max.Suction: +9m
Motor
Motor with copper winding
Shaft: Stainless steel welded shaft/45# steel shaft
Insulation Class:B or F
Protection class: IPX4
Max.Ambient temperature: +40℃
Cooling: External ventilation
Pump Installation And Application
It can be used to transfer clean water or other liquids similar to water in physical and chemical properties. It is suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting of running water, and supporting equipment etc.

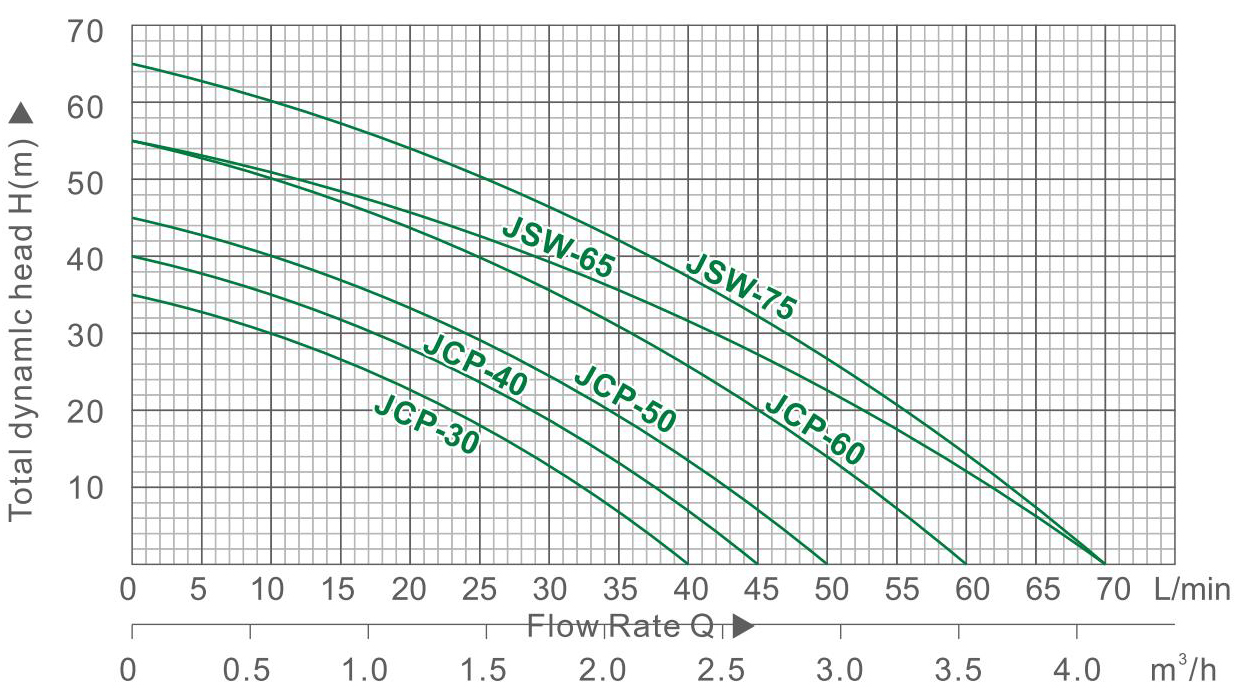

Performance Chart At N=2850rpm
MODEL | POWER | MAX.FLOW (L/min) | MAX.HEAD (m) | MAX.SUCT (m) | INLET/OUTLET (in) | GW (kg) | PACKING DIMENSION (mm) | |
kW | HP | |||||||
JCP-30 | 0.45 | 0.6 | 40 | 35 | 9 | 1"×1" | 13.0 | 425×200×230 |
JCP-40 | 0.6 | 0.8 | 45 | 40 | 9 | 1"×1" | 13.8 | 425×200×230 |
JCP-50 | 0.75 | 1.0 | 50 | 45 | 9 | 1"×1" | 14.5 | 425×200×230 |
JCP-60 | 1.1 | 1.5 | 60 | 55 | 9 | 1"×1" | 16.0 | 450×200×230 |
JSW-45 | 0.45 | 0.6 | 40 | 35 | 9 | 1"×1" | 11.0 | 435×200×230 |
JSW-55 | 0.75 | 1.0 | 55 | 45 | 9 | 1"×1" | 17.5 | 435×200×230 |
JSW-65 | 1.1 | 1.5 | 70 | 55 | 9 | 1¼"×1" | 21.5 | 570×225×250 |
JSW-75 | 1.5 | 2.0 | 70 | 65 | 9 | 1¼"×1" | 23.5 | 570×225×250 |
