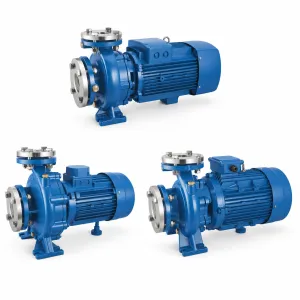

MHF 6AR Centrifugal Pump

2 pole induction motor 3~230/400v-220v-380v-440v-660v50hz

联系我们

在线询价

邮箱：sales1@chimppump.com

详细介绍

Construction features

Pump body: Cast iron

Motor bracket: Cast iron/aluminum Impeller: cast iron/stainless steel 304

Mechanical seal: Ceramic/Graphite

Motor shaft: Stainless steel AISI 304/316/416

Liquid temperature: -10℃~+90℃

Max.operating pressure: 10bar

Motor

2 pole induction motor 3~230/400v-220v-380v-440v-660v50hz

Insulation class: F

Protectionclass: Ip55

Monobloc horizontal Centrifugal Pumps,complies with 733 standards, widely used in water supply,pressurization andfire- fighting systems, cooling,heating,irrigaton,industrial and agricultural applications

Dimensions

DIMENSIONS(MM)
DN	D	K	Holes
DN	D	K	n°	Φ
32	140	100	4	18
40	150	110	4	18
50	165	125	4	18
65	185	145	4	18
80	200	160	4	18
100	220	180	8	18

TIPO/TYPE MODELO/	DIMENSIONS(mm)																		KG
TIPO/TYPE MODELO/	DNm	DNa	a	h1	h2	m1	m2	n1	n2	b	x	s	C	B	H	I	L	M	KG
CM 32-160 C	32	50	80	132	160	100	70	240	190	50	12	14	490	240	292	520	260	355	38
CM 32-160 B	32	50	80	132	160	100	70	240	190	50	12	14	490	240	292	520	260	355	39
CM 32-160 A	32	50	80	132	160	100	70	240	190	50	12	14	490	240	292	520	260	355	42
CM 32-200 C	32	50	80	160	180	100	70	240	190	50	12	14	505	268	340	530	305	400	51.5
CM 32-200 B	32	50	80	160	180	100	70	240	190	50	12	14	565	268	340	615	310	460	63
CM 32-200 A	32	50	80	160	180	100	70	240	190	50	12	14	565	268	340	615	310	460	69
CM 40-160 B	40	65	80	132	160	100	70	240	190	50	12	14	500	245	292	520	260	355	47
CM 40-160 A	40	65	80	132	160	100	70	240	190	50	15	14	500	245	292	520	260	355	50
CM 40-200 B	40	65	100	160	180	100	70	265	212	50	15	14	590	273	340	615	310	460	65
CM 40-200 A	40	65	100	160	180	100	70	265	212	50	15	14	590	273	340	615	310	460	71
CM 40-250 B	40	65	100	180	225	125	95	320	250	65	15	14	630	322	405	665	335	535	91
CM 40-250 A	40	65	100	180	225	125	95	320	250	65	15	14	700	322	405	735	355	535	121
CM 50-160 B	50	65	100	150	180	100	70	265	212	50	12	14	590	270	340	615	310	460	65
CM 50-160 A	50	65	100	150	180	100	70	265	212	50	12	14	590	270	340	615	310	460	71
CM 50-200 C	50	65	100	160	200	100	70	265	212	50	12	14	635	290	360	665	335	535	82
CM 50-200 B	50	65	100	160	200	100	70	265	212	50	12	14	635	290	360	665	335	535	89
CM 50-200 A	50	65	100	160	200	100	70	265	212	50	12	14	705	290	360	735	355	535	122
CM 65-160 C	65	80	100	160	200	125	95	280	212	65	14	14	635	290	360	665	335	535	84
CM 65-160 B	65	80	100	160	200	125	95	280	212	65	14	14	635	290	360	665	335	535	90
CM 65-160 A	65	80	100	160	200	125	95	280	212	65	14	14	705	290	360	735	355	535	120
CM 65-200 C	65	80	100	180	225	125	95	320	250	65	14	14	705	330	405	735	355	535	122
CM 65-200 B	65	80	100	180	225	125	95	320	250	65	14	14	750	330	405	815	355	535	138
CM 65-200 A	65	80	100	180	225	125	95	320	250	65	14	14	750	330	405	815	355	535	148
CM 65-250 B	65	80	100	200	250	160	120	360	280	80	16	19	850	370	450	850	380	490	239
CM 65-250 A	65	80	100	200	250	160	120	360	280	80	16	19	850	370	450	850	380	490	253

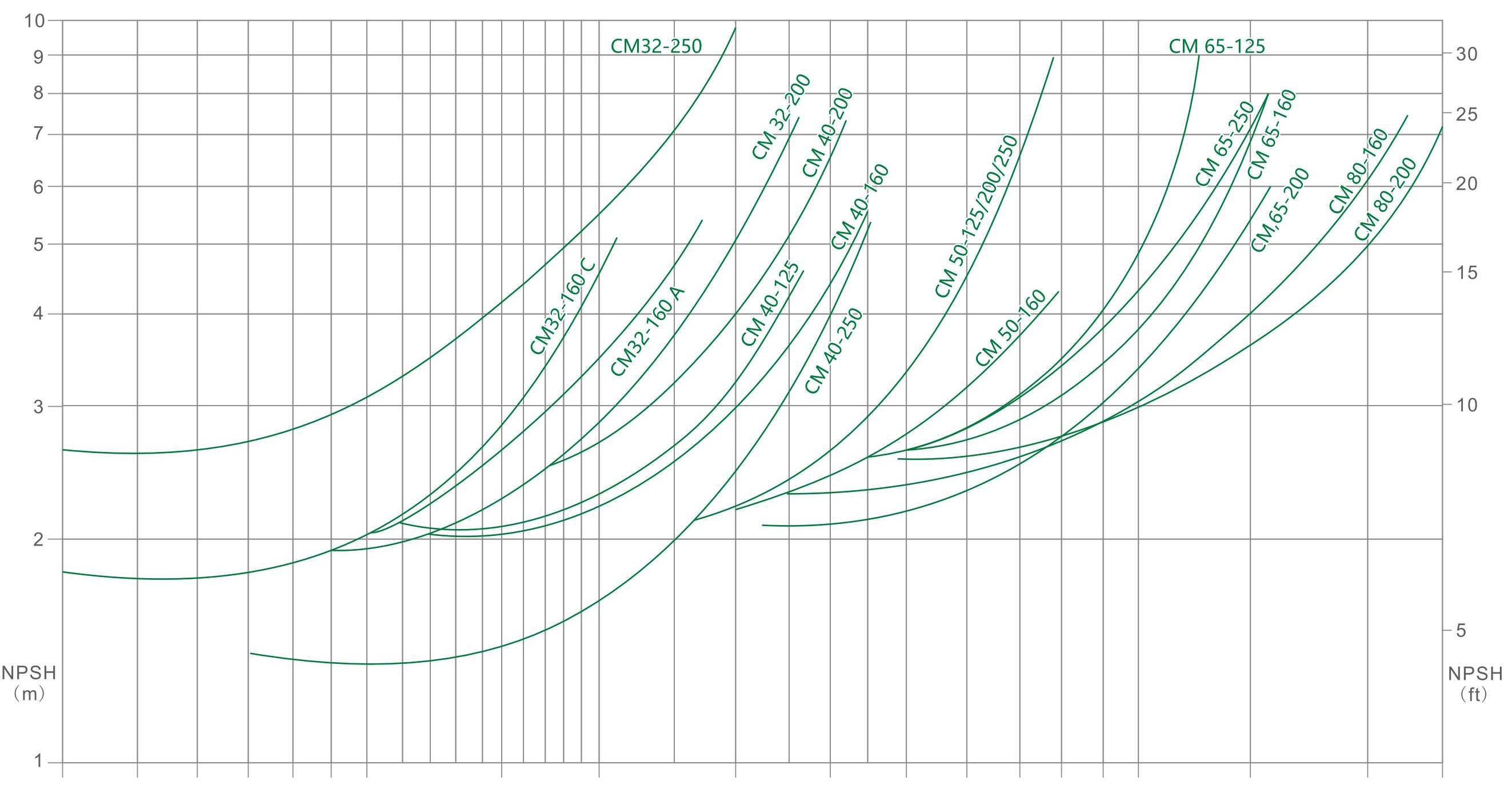

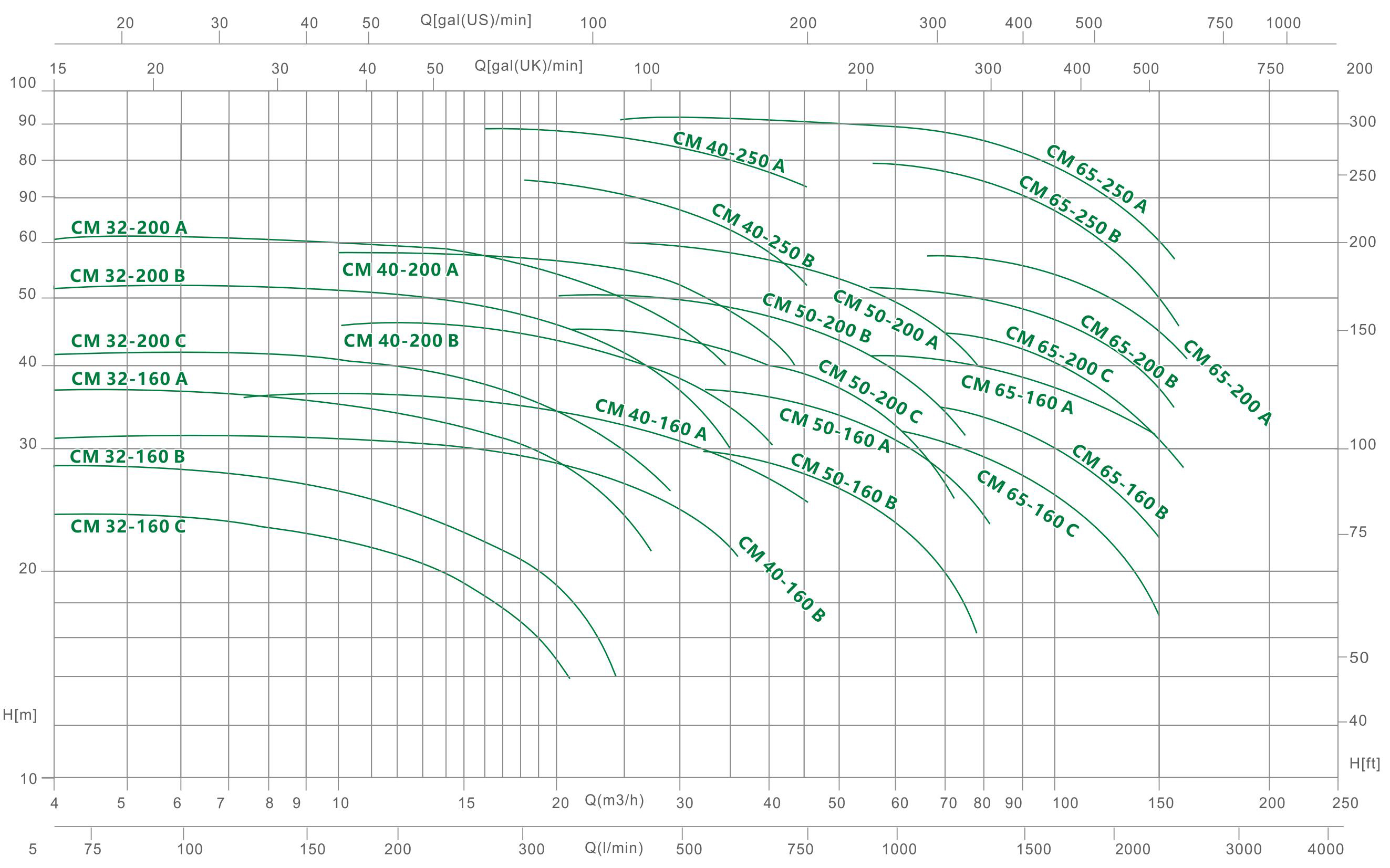

TIPO/TYPE MODELO/ MODELE	HP/kW	kW	A	Q (m³/h - L/min)
				0	4.5	6	7.5	9	12	15	18	21	24	27	30	33	36	39	42	48	54	60	66	72	78	84	96	108	120	132	144
				0	75	100	125	150	200	250	300	350	400	450	500	550	600	650	700	800	900	1000	1100	1200	1300	1400	1600	1800	2000	2200	2400
					H(m)
CM 32-160 C (*)	2/1.5	2.3	4.0	24.7	24.4	24.1	23.6	23.0	21.5	19.6	17.2	14.1
CM 32-160 B (*)	3/2.2	2.9	5.2	29.0		28.5	28.0	27.3	25.7	23.8	21.4	18.5	14.8
CM 32-160 A	4/3	4.1	7.1	36.8		36.4	36.0	35.4	34.2	32.8	31.1	28.8	26.0	22.3
CM 32-200 C (*)	5.5/4	5.2	9.4	41.0		40.0	39.5	38.8	37.5	36.0	34.2	32.2	30.0	27.0
CM 32-200 B	7.5/5.5	8.6	14.2	53.0		52.0	51.5	51.0	50.0	48.5	46.8	45.0	42.7	40.1	37.0	33.3	28.7
CM 32-200 A	10/7.5	9.9	16.5	61.0		60.5	60.0	59.5	58.5	57.2	55.5	53.7	51.5	49.0	46.2	42.7	38.5
CM 40-160 B (*)	4/3	4.4	7.4	30.0				30.1	30.0	29.6	29.0	28.2	27.1	25.9	24.4	22.8	21.0
CM 40-160 A (*)	5.5/4	5.7	9.9	35.4				35.6	35.5	35.3	35.0	34.2	33.2	32.0	30.6	29.0	27.3	25.4
CM 40-200 B	7.5/5.5	7.8	13.2	46.7				47.0	46.8	46.4	45.6	44.5	43.2	41.6	39.9	37.9	35.8	33.4
CM 40-200 A	10/7.5	10.2	16.8	56.4				57.8	58.0	57.9	57.6	56.9	56.0	54.7	53.0	51.1	48.9	46.5	43.9
CM 40-250 B	15/11	14.4	24.2	75.5				74.6	74.2	73.5	72.7	71.7	70.4	69.0	67.2	65.0	62.5	59.5	56.0
CM 40-250 A	20/15	19	32.0	91.5				90.4	89.8	89.3	88.5	87.5	86.6	85.5	84.0	82.5	80.5	78.5	76.0
CM 50-160 B	7.5/5.5	6.7	11.6	30.2								30.5	30.3	30.1	29.8	29.5	29.0	28.5	28.0	26.7	25.1	23.3	21.3	19.1	16.8
CM 50-160 A	10/7.5	9.4	15.8	36.3								37.0	36.9	36.8	36.6	36.4	36.1	35.6	35.1	34.0	32.6	31.0	29.1	26.9	24.5
CM 50-200 C	12.5/9.2	10.8	18.5	47.0									45.7	45.1	44.5	43.7	42.9	42.0	40.2	38.5	35.9	33.0	29.0	24.5
CM 50-200 B	15/11	12.4	21.0	52.0									51.0	50.5	50.0	49.3	48.5	47.7	46.8	44.7	42.2	39.5	35.9	32.0
CM 50-200 A	20/15	15.4	27.0	58.5									58.1	58.0	57.5	57.0	56.4	55.7	55.0	53.2	51.3	49.0	46.3	42.8	38.8
CM 65-160 C	12.5/9.2	11.7	19.5	30.4														31.2	31.1	30.8	30.5	30.1	29.6	29.0	28.3	26.6	24.6	22.1	19.3	16.0
CM 65-160 B	15/11	13	22.5	34.0														34.6	34.4	34.2	34.0	33.7	33.3	32.8	32.1	30.6	28.8	26.7	24.1	21.1
CM 65-160 A	20/15	18	30.0	39.0														40.6	40.6	40.4	40.2	40.0	39.7	39.4	38.9	37.7	36.2	34.3	32.2	29.8
CM 65-200 C	20/15	20	32.5	43.0																44.8	44.5	44.1	43.7	43.0	42.3	40.5	38.0	35.3	32.0
CM 65-200 B	25/18.5	23	41.5	47.5																49.5	49.3	49.0	48.5	48.0	47.3	45.5	43.5	41.0	38.0
CM 65-200 A	30/22.5	28.5	51.5	56.5																56.7	56.5	56.2	55.7	55.2	54.7	53.3	51.6	49.6	47.1	44.0
CM 65-250 B	40/30	37.8	63.5	81.0																79.5	78.5	77.3	76.0	74.5	73.0	69.3	65.0	60.0	54.5	48.5
CM 65-250 A	50/37	45	74.5	90.0																89.5	88.5	87.5	86.5	85.5	84.0	80.5	76.5	72.0	66.5	60.5	54.0
