Pump
Rust-free stainless steel inserts prevent impeller's block when starting after the pump is unused for a long time.
Brass impeller with evenly arranged radial vanes
Max. liquid temperature: 35°C or 60°C
Max. Suction:+8m
Cast iron pump body and support
Motor
Motor with copper winding
Insulation class: B or F
Protection class: IPX4
Max. Ambient temperature:+40°C
Cooling: External ventilation
Shaft: Stainless steel welded shaft/45# steel
Pump Installation And Application
It can be used to transfer clean water or other liquid similar to water in physical and chemical properties. It is suitable for small living water supply, automatic water sprinkler system, small air conditioner system and supporting equipment etc.

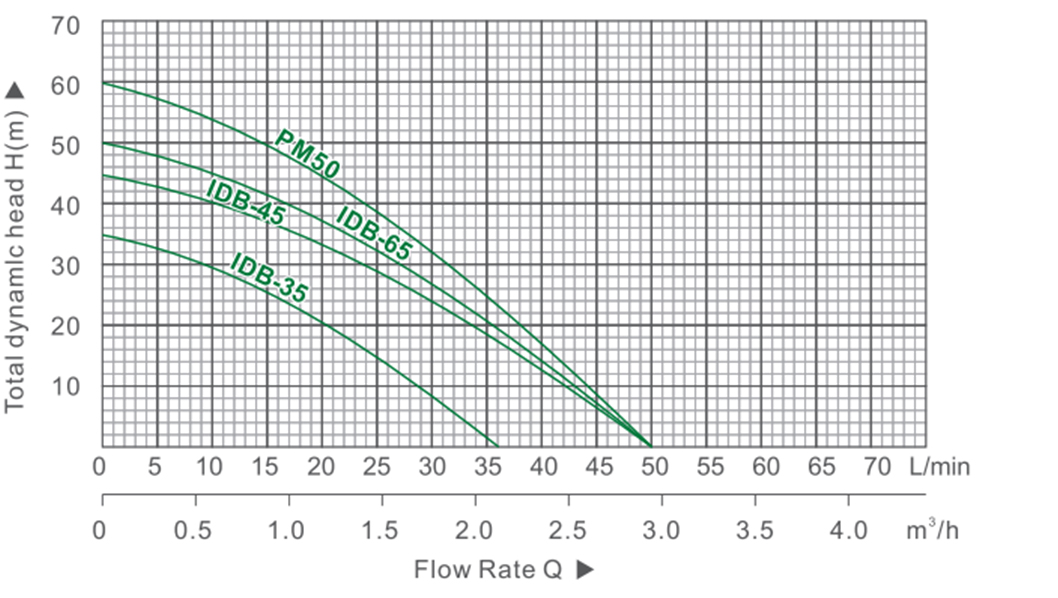

Performance Chart At N=2850rpm
Parameter
MODEL | POWER | MAX.FLOW | MAX.HEAD | MAX.SUCT | INLET/OUTLET | GW | PACKING | |
kW | HP | |||||||
PM45 | 0.37 | 0.5 | 38 | 35 | 8 | 1"×1" | 5.8 | 265×144×155 |
PM50 | 0.75 | 1.0 | 50 | 60 | 8 | 1"×1" | 9.5 | 335×175×215 |
IDB-35 | 0.37 | 0.5 | 36 | 35 | 8 | 1"×1" | 5.3 | 285×150×175 |
IDB-45 | 0.55 | 0.75 | 50 | 45 | 8 | 1"×1" | 8.2 | 305×175×195 |
IDB-65 | 0.75 | 1.0 | 50 | 50 | 8 | 1"×1" | 9.0 | 305×175×195 |
