Product Description
1. The motor standard uses the large hole motor movement dedicated to the swimming pool pump, and the copper wire is 30% more than the general movement, with higher efficiency and stronger performance.
2. Polymer multi-functional engineering plastics, strong resistance, stable chemical substances.
3. It has the characteristics of high strength, high temperature resistance, acid and alkali resistance.

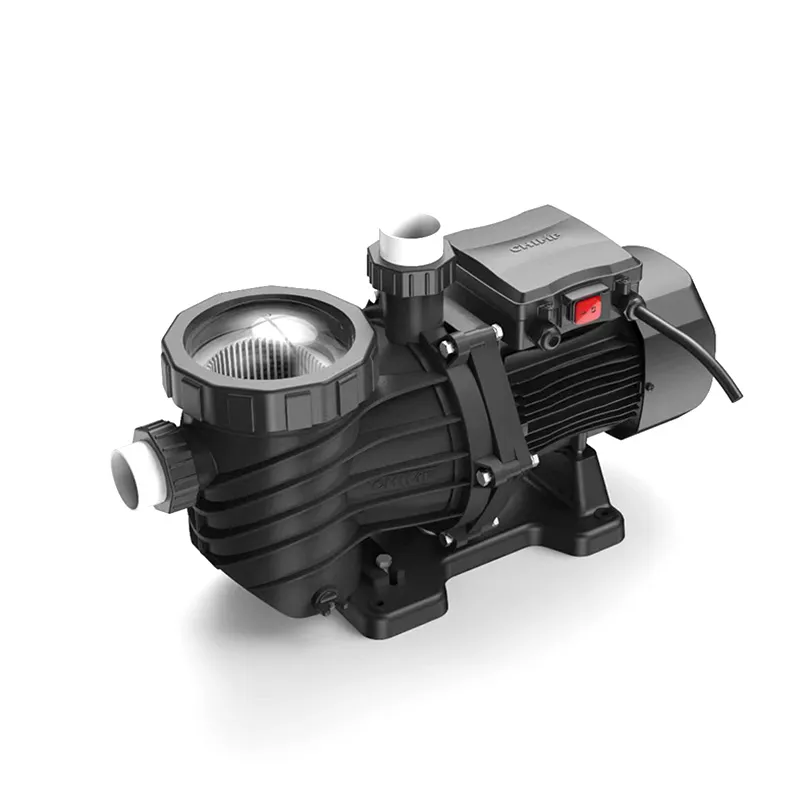

Swimming Pool Pump
■ Mechanical seal: S silicon carbide + 316SS + fluorine rubber [super wear-resistant] | ■ Medium temperature: ≤75° |
■ Bearing: (BUT)2RS1 Made in UK | ■ Insulation class: Class F |
■ Motor Material: 50W600 High efficiency heat dissipation | ■ Motor protection: Front and rear double skeleton sealing structure |
■ Protection class: IP66 | ■ Junction box: Aluminum alloy flame retardant structure |
■ Shaft: 316SS Food grade stainless steel +40Cr tempered steel | ■ Pump body material: PA material [high temperature resistant] |
Scope Of Application
Suitable for various household and commercial swimming pools, hot springs, landscape baths, aquariums and other environments that require filtration.

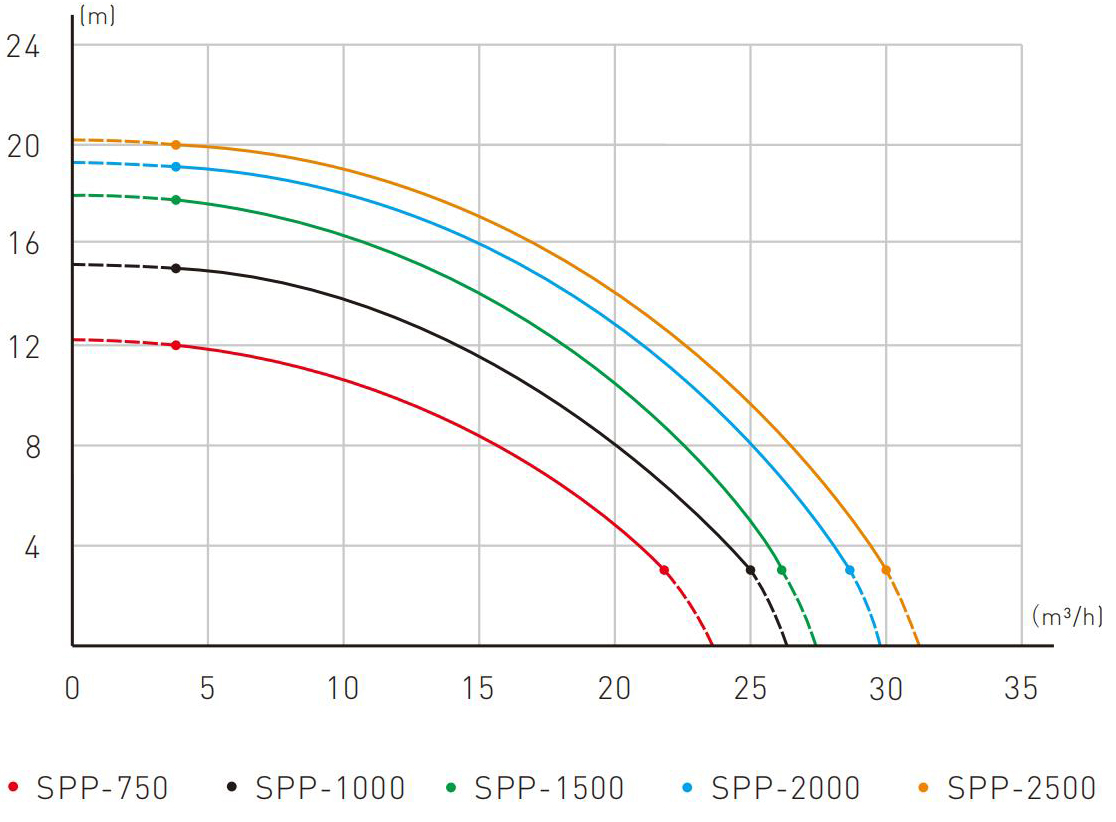

Technical Parameters
Model | Input powerb (HP) | Input power (KW) | MAX Flow rate (m³/h) | MAX Head (m) | Outlet (mm) | Voltage (V) |
SPP-750 | 0.75 | 0.55 | 22 | 12 | 40-50-63 | 220-380 |
SPP-1000 | 1 | 0.75 | 25 | 15 | 40-50-63 | 220-380 |
SPP-1500 | 1.5 | 1.1 | 26 | 18 | 40-50-63 | 220-380 |
SPP-2000 | 2 | 1.5 | 28 | 19 | 40-50-63 | 220-380 |
SPP-2500 | 2.5 | 1.8 | 30 | 20 | 40-50-63 | 220-380 |
