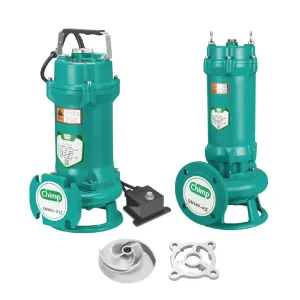

WQ Sewage Pump With Cutting Impeller

WQ pumps are designed to lift dirty water in industrial, mining and architectural operation. These pumps are particularly suitable for installation in sewages, galleries, excavation sites, wells, channels, underground car parks, etc.

联系我们

在线询价

邮箱：sales1@chimppump.com

详细介绍

Pump

Max.immersion depth:5m

Max.liquid temperature:+40 ℃

Fluid temperature up to:+35 ℃

Pump Body:Cast Iron

Impeller:Cast Iron

Motor

Copper winding

Single Phase/Three Phase/Continuous Work

Motor Housing:Cast iron

Shaft:Stainless steel welded shaft/45# steel be electroplated

Insulation class:B or F

Protection class:IPX8

Pump Installation And Features

These pumps are very special with cast iron impeller, which with the function of cutting.This serie of pumps has compact structure, easy to move, easy for installation,good resistance to jam and tagle -free, which is widely used in agricultural pollution, the rural road construction, houses infrastructure, animal husbandry of sewage discharge and poof of sewage discharge.

Performance Chart At N=2850rpm

MODEL	POWER kW	RATED FLOW (m³/h)	MAX.FLOW (m³/h)	RATED HEAD (m)	MAX.HEAD (m)	PIPING INNER DIAMETER (mm)	POWER SUPPLY (V/Hz)	SYNCHRONOUS SPEED (r/min)
50GNWQ(D)10-10-0.75(F)	0.75	10	22	10	15	50	220/50 380/50	3000
50GNWQ(D)12-10-1.1(F)	1.1	12	22	10	17	50	220/50 380/50	3000
50GNWQ(D)15-13-1.5(F)	1.5	15	31	13	20	50	220/50 380/50	3000
65GNWQ(D)20-10-1.5(F)	1.5	20	40	10	18	65	220/50 380/50	3000
50GNWQ(D)10-20-2.2(F)	2.2	10	36	20	22	50	220/50 380/50	3000
65GNWQ(D)25-15-2.2(F)	2.2	25	50	15	22	65	220/50 380/50	3000
80GNWQ(D)35-10-2.2(F)	2.2	35	53	10	22	80	220/50 380/50	3000
50GNWQ30-15-3	3	30	40	15	23	50	380/50 660/50	3000
65GNWQ35-13-3	3	35	60	13	23	65	380/50 660/50	3000
80GNWQ45-10-3	3	45	62	10	24	80	380/50 660/50	3000
50GNWQ30-20-4	4	35	70	20	27	50	380/50 660/50	3000
65GNWQ45-17-4	4	45	75	17	26	65	380/50 660/50	3000
80GNWQ75-10-4	4	75	80	10	25	80	380/50 660/50	3000
100GNWQ85-8-4	4	85	90	8	25	100	380/50 660/50	3000
65GNWQ50-20-5.5	5.5	50	85	20	26	65	380/50 660/50	3000
80GNWQ65-15-5.5	5.5	65	92	15	30	80	380/50 660/50	3000
100GNWQ80-12-5.5	5.5	80	102	12	28	100	380/50 660/50	3000
65GNWQ70-20-7.5	7.5	70	104	20	31	65	380/50 660/50	3000
80GNWQ80-15-7.5	7.5	80	?	15	?	80	380/50 660/50	3000
100GNWQ100-13-7.5	7.5	100	110	13	27	100	380/50 660/50	3000
150GNWQ120-12-7.5	7.5	120	150	12	32	150	380/50 660/50	3000
100GNWQ120-18-11	11	120	175	18	27	100	380/50 660/50	1500
150GNWQ150-15-11	11	150	180	15	25	150	380/50 660/50	1500
50GNWQ40-50-15	15	40	60	50	63	50	380/50 660/50	3000
100GNWQ120-22-15	15	120	185	22	30	100	380/50 660/50	1500
150GNWQ200-15-15	15	200	250	15	28	150	380/50 660/50	1500
