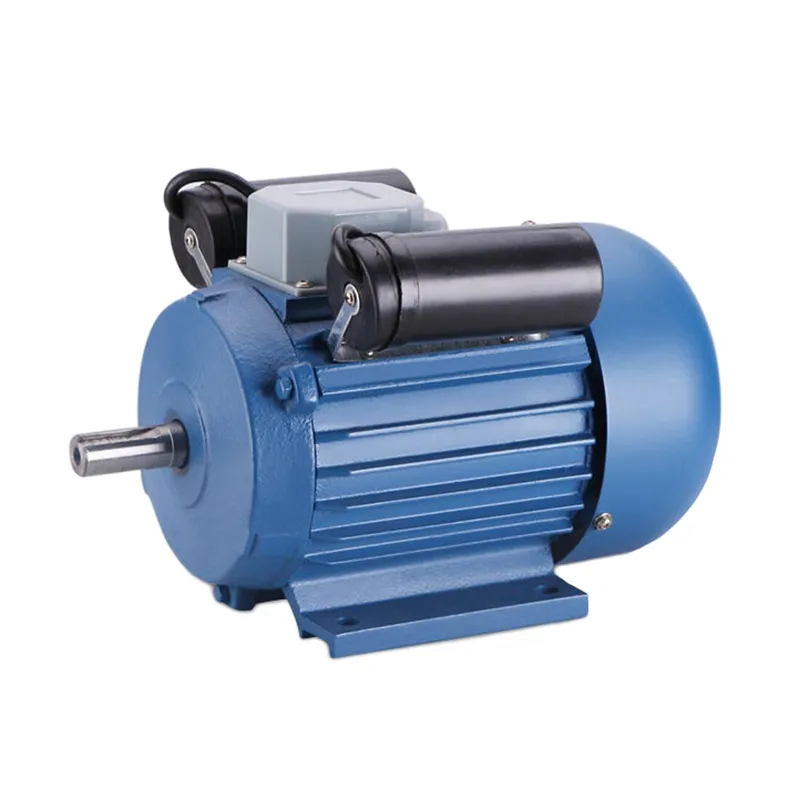

YL Series Single Phase Electric Motor

YL series single phase dual-capacitor induction motor is designed and manufactured according to national standard, newly developed by our company with low noise, compact construction, light weight, easy maintenance, etc. medical instruments, small size machines, etc. especially for occasion where only single-phase power supply is available.

联系我们

在线询价

邮箱：sales1@chimppump.com

详细介绍

Product features

Application

Ambient temperature：-15℃ ≤ θ ≤ 40℃

Elevation：< 1000m

Rated voltage：220V±5%

Technical Parameters

Type	Output(kw)	Rated speed (r/min)	Voltage (V)	Frequency (Hz)	Rated current (A)	Eff(%)	Power factor (cosφ)	Locked rotor torque Rated torque	Locked rotor current Rated current	Pull out torque Rated torque
YL711-2	0.37	2800	220	50	2.73	67.0	0.92	1.8	16	1.7
YL712-2	0.55	2800	220	50	3.88	70.0	0.92	1.8	21	1.7
YL801-2	0.75	2800	220	50	5.15	72.0	0.92	1.8	29	1.7
YL802-2	1.1	2800	220	50	6.85	75.0	0.95	1.8	40	1.7
YL90S-2	1.5	2800	220	50	9.44	76.0	0.95	1.7	55	1.7
YL90L-2	2.2	2800	220	50	13.67	77.0	0.95	1.7	80	1.7
YL100L-2	3	2800	220	50	18.2	79.0	0.95	1.7	110	1.7
YL112M-2	3.7	2900	220	50	21.9	80.0	0.96	1.7	130	1.7
YL132S-2	5.5	2900	220	50	31	82.0	0.97	1.7	/	1.7
YL132M-2	7.5	2900	220	50	43	84.0	0.97	1.7	/	1.7
YL711-4	0.25	1400	220	50	2.02	62.0	0.92	1.8	12	1.7
YL712-4	0.37	1400	220	50	2.81	65.0	0.92	1.8	16	1.7
YL801-4	0.55	1400	220	50	3.88	68.0	0.92	1.8	21	1.7
YL802-4	0.75	1400	220	50	5.22	71.0	0.92	1.8	29	1.7
YL90S-4	1.1	1400	220	50	7.21	73.0	0.95	1.7	40	1.7
YL90L-4	1.5	1400	220	50	9.57	76.0	0.95	1.7	55	1.7
YL100L1-4	2.2	1400	220	50	13.9	77.0	0.95	1.7	80	1.7
YL100L2-4	3	1400	220	50	18.6	78.0	0.95	1.7	110	1.7
YL112M-4	3.7	1400	220	50	23	79.0	0.95	1.7	140	1.7
YL132M1-4	5.5	1400	220	50	32	81.0	0.96	1.7	/	1.7
YL132M2-4	7.5	1400	220	50	45	83.0	0.96	1.7	/	1.7
