IDENTIFICATION CODE
2.5SD
2.5: Well diameter: 69mm(2.5")
SD: SD Series submersible pump
M: Single phase motor(Three phase without M)
1.5: Capacity(m³/h)
12: Stage
0.18: Motor power(KW)
APPLICATIONS
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
OPERATING CONDITIONS
Maximum fluid temperature up to +35 ℃.
Maximum sand content: 0.25%.
Maximum immersion: 100m.
Minimum well diameter: 2.5"
MOTOR AND PUMP
Rewindable motor or full obturated screen motor
Three-phase: 380V-415V/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
OPTIONS ON REQUEST
Special mechanical seal
Other voltages or frequency 60 Hz

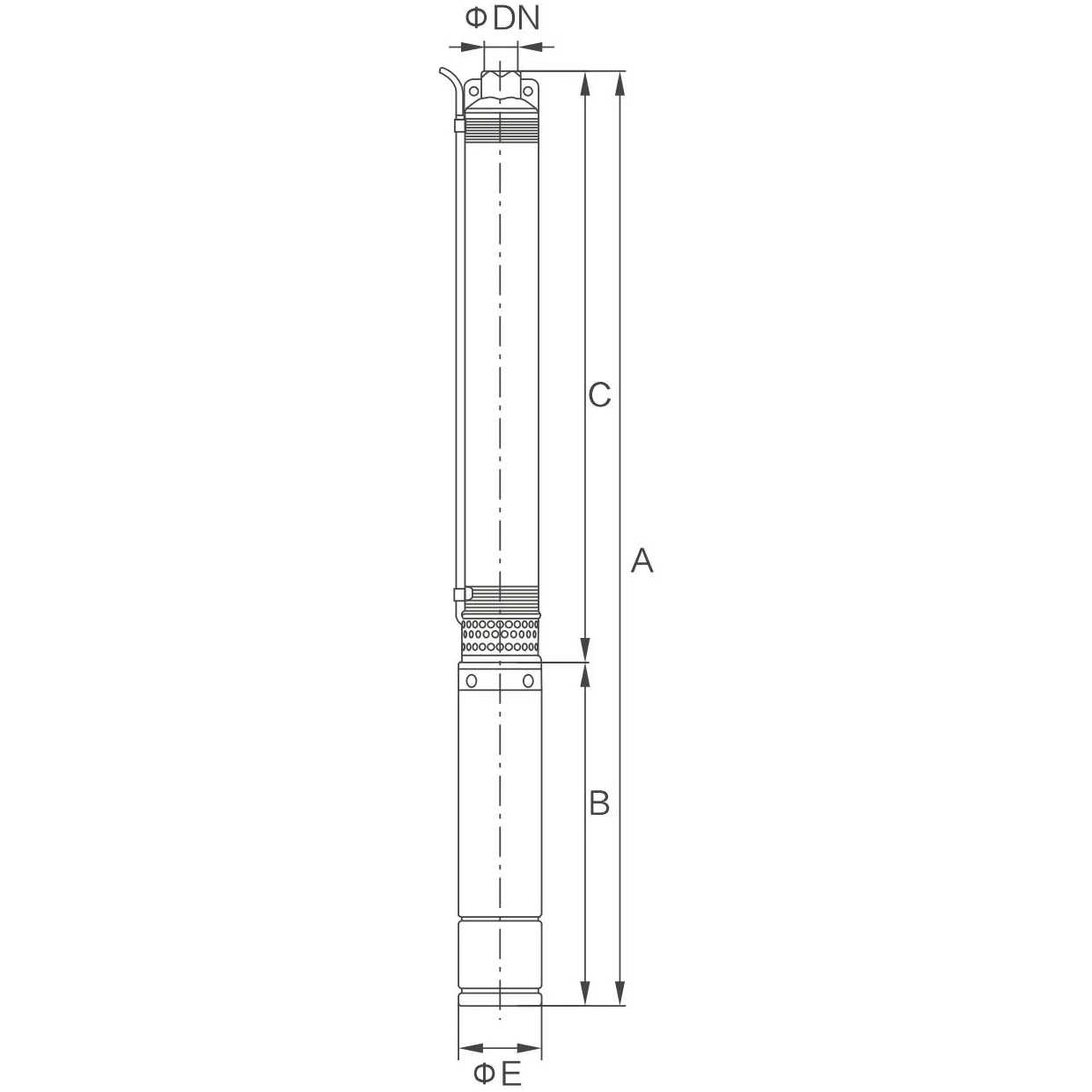

OVERALL DIMENSIONS
SIZE PARATEMER TABLE | |||||
MODEL | A | B | C | D | E |
2.5SDM1.5/12-0.18 | 875 | 382 | 493 | 1" | Φ64 |
2.5SDM1.5/17-0.25 | 1057 | 407 | 650 | 1" | Φ64 |
2.5SDM1.5/24-0.37 | 1302 | 442 | 860 | 1" | Φ64 |
2.5SDM1.5/31-0.55 | 1562 | 492 | 1070 | 1" | Φ64 |
2.5SDM1.5/41-0.75 | 1879 | 542 | 1337 | 1" | Φ64 |

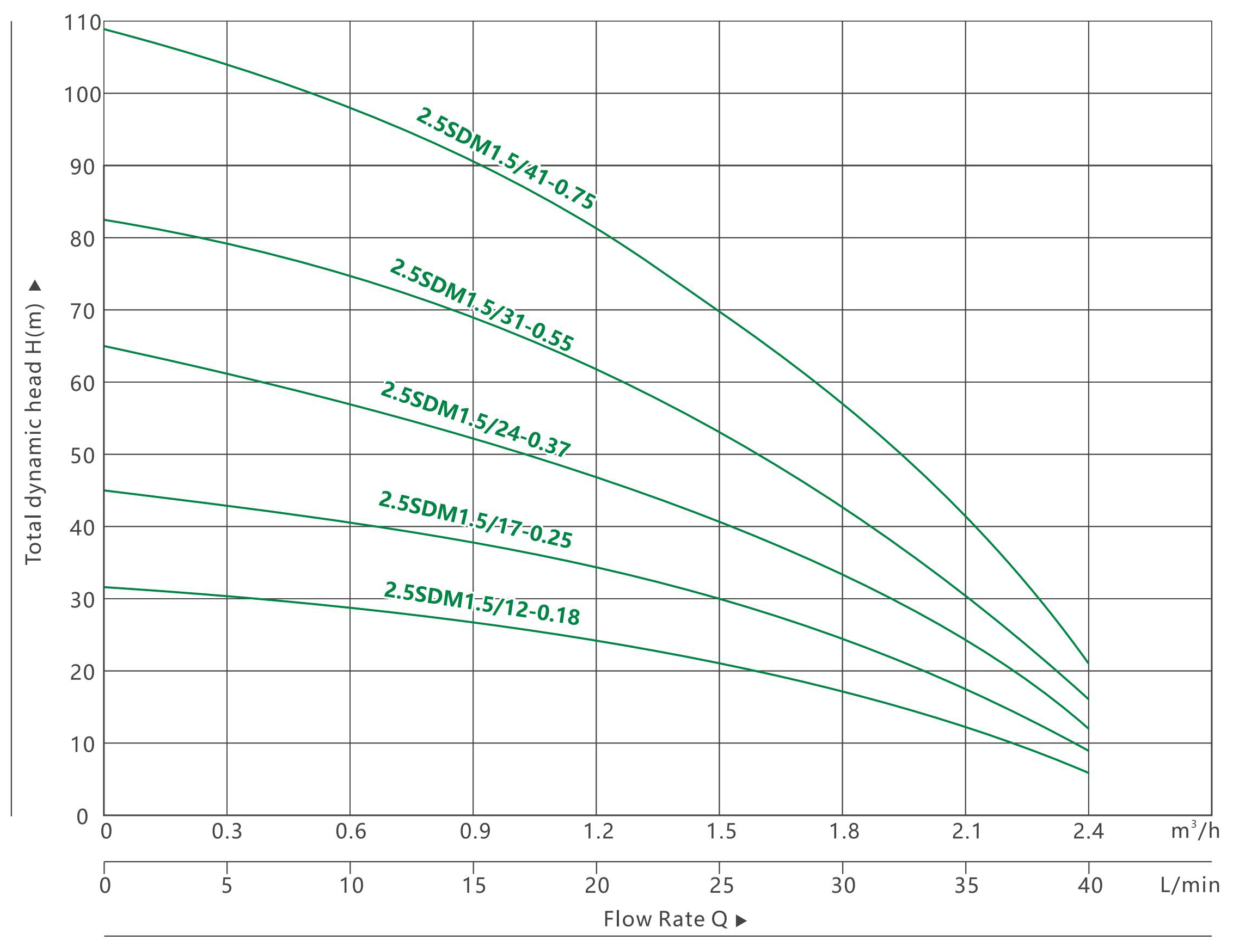

PERFORMANCE DATA 50 HZ
MODEL | P2 | DELIVERY n=2850 l/min | ||||||||||
1~ 220V/240V | KW | HP | Q l/min m³/h | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | ||||
2.5SDM1.5/12-0.18 | 0.18 | 0.25 | H(m) | 32 | 29 | 27 | 25 | 23 | 19 | 16 | 12 | 6 |
2.5SDM1.5/17-0.25 | 0.25 | 0.33 | 45 | 42 | 38 | 35 | 32 | 27 | 23 | 16 | 8 | |
2.5SDM1.5/24-0.37 | 0.37 | 0.5 | 64 | 59 | 54 | 50 | 45 | 38 | 32 | 23 | 11 | |
2.5SDM1.5/31-0.55 | 0.55 | 0.75 | 83 | 76 | 70 | 64 | 58 | 50 | 41 | 30 | 14 | |
2.5SDM1.5/41-0.75 | 0.75 | 1 | 109 | 100 | 92 | 85 | 77 | 66 | 55 | 39 | 19 | |
