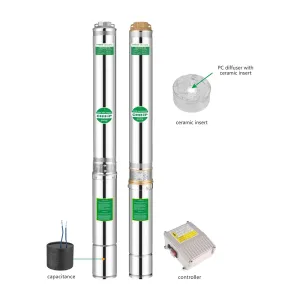

IDENTIFICATION CODE
75QJ
75: Well diameter: 78mm(3")
QJ: QJ Series submersible pump
D: Single phase motor(Three phase without D)
1.8: Capacity(m³/h)
10: Stage
0.25: Motor power(KW)
APPLICATIONS
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
OPERATING CONDITIONS
Maximum fluid temperature up to +35 °C.
Maximum sand content: 0.25%.
Maximum immersion: 100m.
Minimum well diameter: 3".
MOTOR AND PUMP
Rewindable motor or full obturated screen motor
Three-phase: 380V-415V/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
OPTIONS ON REQUEST
Special mechanical seal
Other voltages or frequency 60 Hz

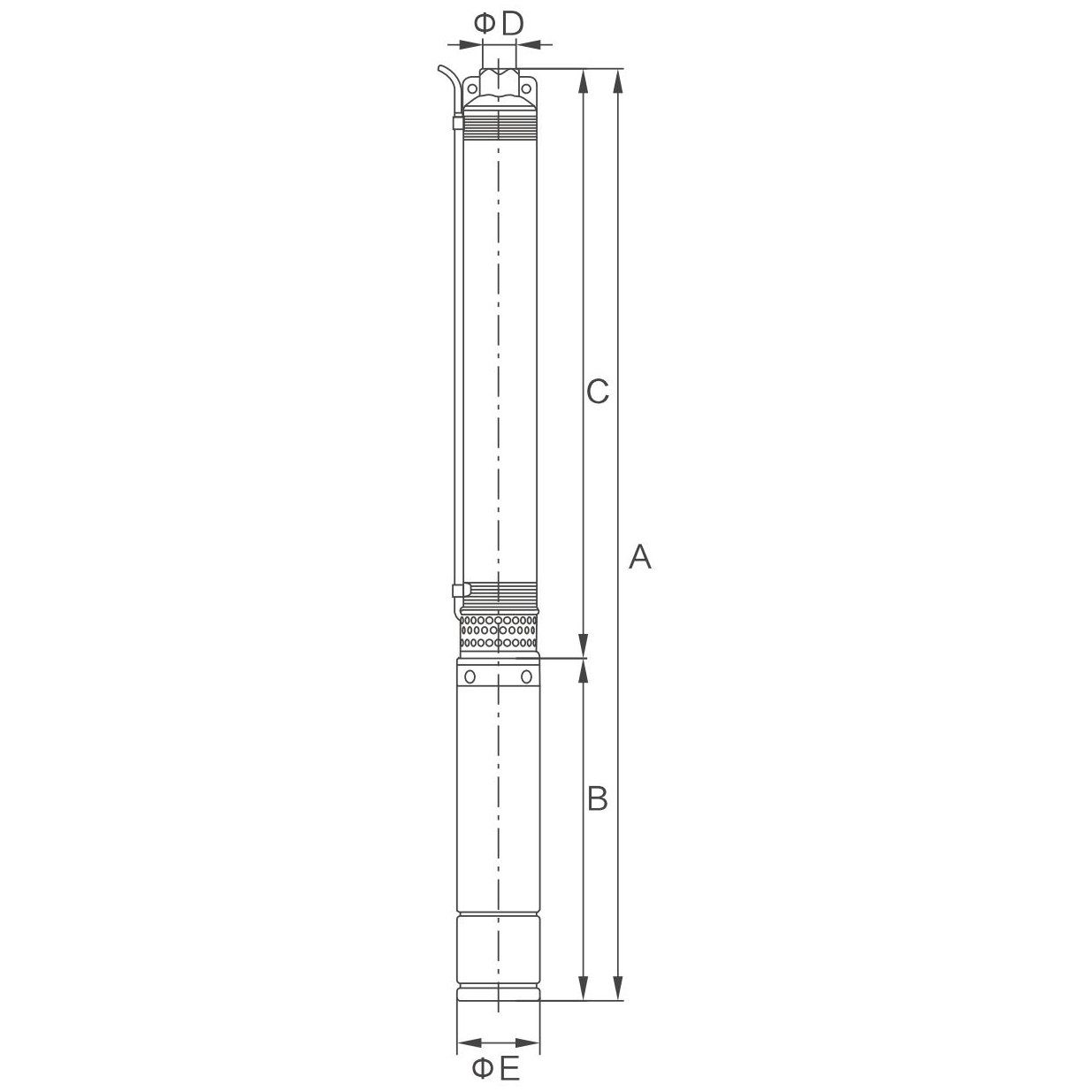

OVERALL DIMENSIONS
SIZE PARATEMER TABLE | |||||
MODEL | A | B | C | D | E |
75QJD1.8/10-0.25 | 661 | 303 | 358 | 1 1/4"-1 1/2" | Φ73 |
75QJD1.8/14-0.37 | 786 | 333 | 453 | 1 1/4"-1 1/2" | Φ73 |
75QJD1.8/20-0.55 | 956 | 373 | 583 | 1 1/4"-1 1/2" | Φ73 |
75QJD1.8/27-0.75 | 1149 | 403 | 746 | 1 1/4"-1 1/2" | Φ73 |
75QJD1.8/37-1.1 | 1522 | 488 | 1034 | 1 1/4"-1 1/2" | Φ73 |
75QJD1.8/45-1.5 | 1698 | 538 | 1160 | 1 1/4"-1 1/2" | Φ73 |
75QJD2.5/8-0.25 | 695 | 303 | 392 | 1 1/4"-1 1/2" | Φ73 |
75QJD2.5/10-0.37 | 782 | 333 | 449 | 1 1/4"-1 1/2" | Φ73 |
75QJD2.5/15-0.55 | 998 | 373 | 625 | 1 1/4"-1 1/2" | Φ73 |
75QJD2.5/20-0.75 | 1204 | 403 | 801 | 1 1/4"-1 1/2" | Φ73 |
75QJD2.5/30-1.1 | 1605 | 488 | 1117 | 1 1/4"-1 1/2" | Φ73 |
75QJD2.5/36-1.5 | 1859 | 538 | 1321 | 1 1/4"-1 1/2" | Φ73 |

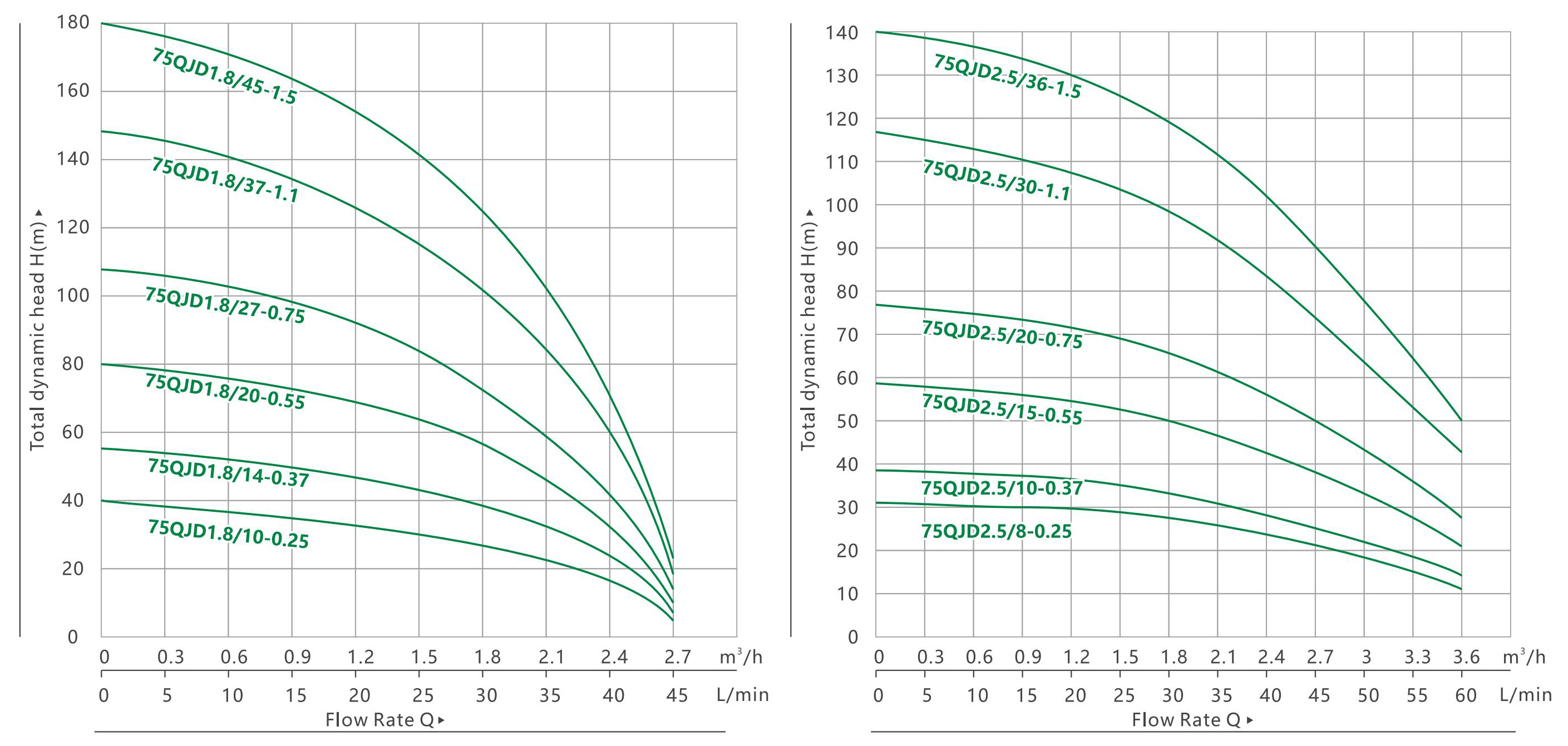

PERFORMANCE DATA 50 HZ
MODEL | P2 | Q l/min | DELIVERY n=2850 l/min | |||||||||||
1~ 220V/240V | 3~ 380V/415V | KW | HP | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | |
0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | |||||
75QJD1.8/10-0.25 | 75QJ1.8/10-0.25 | 0.25 | 0.33 | H(m) | 40 | 39 | 38 | 37 | 35 | 31 | 28 | 22 | 16 | 5 |
75QJD1.8/14-0.37 | 75QJ1.8/14-0.37 | 0.37 | 0.5 | 56 | 55 | 53 | 51 | 49 | 43 | 39 | 31 | 22 | 7 | |
75QJD1.8/20-0.55 | 75QJ1.8/20-0.55 | 0.55 | 0.75 | 80 | 78 | 76 | 73 | 70 | 62 | 55 | 44 | 31 | 10 | |
75QJD1.8/27-0.75 | 75QJ1.8/27-0.75 | 0.75 | 1 | 108 | 105 | 103 | 99 | 95 | 84 | 74 | 59 | 42 | 14 | |
75QJD1.8/37-1.1 | 75QJ1.8/37-1.1 | 1.1 | 1.5 | 148 | 144 | 141 | 136 | 130 | 115 | 102 | 81 | 57 | 19 | |
75QJD1.8/45-1.5 | 75QJ1.8/45-1.5 | 1.5 | 2 | 180 | 176 | 171 | 165 | 158 | 140 | 124 | 99 | 70 | 23 | |
MODEL | P2 | Q l/min | DELIVERY n=2850 l/min | ||||||||||||||
1~ 220V/240V | 3~ 380V/415V | KW | HP | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | |
0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | |||||
75QJD2.5/8-0.25 | 75QJ2.5/8-0.25 | 0.25 | 0.33 | H(m) | 31 | 31 | 30 | 30 | 29 | 28 | 26 | 25 | 22 | 20 | 18 | 14 | 11 |
75QJD2.5/10-0.37 | 75QJ2.5/10-0.37 | 0.37 | 0.5 | 39 | 39 | 38 | 37 | 36 | 35 | 33 | 31 | 28 | 25 | 22 | 18 | 14 | |
75QJD2.5/15-0.55 | 75QJ2.5/15-0.55 | 0.55 | 0.75 | 59 | 58 | 57 | 56 | 54 | 53 | 50 | 47 | 42 | 38 | 33 | 27 | 21 | |
75QJD2.5/20-0.75 | 75QJ2.5/20-0.75 | 0.75 | 1 | 78 | 77 | 76 | 74 | 72 | 70 | 66 | 62 | 56 | 50 | 44 | 36 | 28 | |
75QJD2.5/30-1.1 | 75QJ2.5/30-1.1 | 1.1 | 1.5 | 117 | 116 | 114 | 111 | 108 | 105 | 99 | 93 | 84 | 75 | 66 | 54 | 42 | |
75QJD2.5/36-1.5 | 75QJ2.5/36-1.5 | 1.5 | 2 | 140 | 139 | 137 | 133 | 130 | 126 | 119 | 112 | 101 | 90 | 79 | 65 | 50 | |
