IDENTIFICATION CODE
2.5SD
2.5: Well diameter: 69mm(2.5")
SD: SD Series submersible pump
M: Single phase motor(Three phase without M)
2: Capacity(m³/h)
8: Stage
APPLICATIONS
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
OPERATING CONDITIONS
Maximum fluid temperature up to +35℃.
Maximum sand content: 0.25%.
Maximum immersion: 100m.
Minimum well diameter: 2.5"
MOTOR AND PUMP
Rewindable motor or full obturated screen motor
Single-phase:110V-220V/60Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
OPTIONS ON REQUEST
Special mechanical seal
Other voltages or frequency 50 Hz

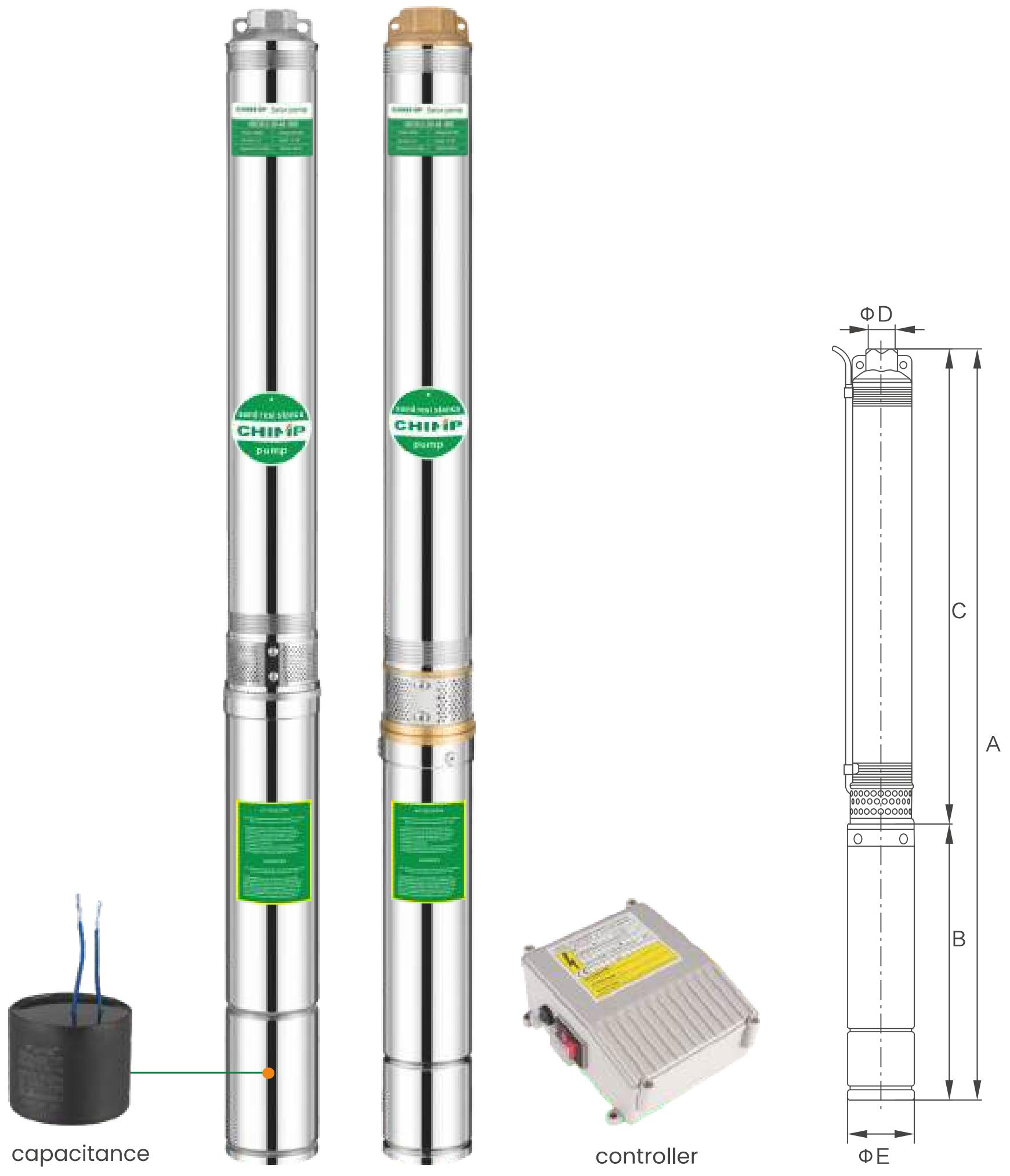

OVERALL DIMENSIONS
SIZE PARATEMER TABLE | |||||
MODEL | A | B | C | D | E |
2.5SDM2/8 | 770 | 382 | 388 | 1" | Φ64 |
2.5SDM2/11 | 875 | 407 | 468 | 1" | Φ64 |
2.5SDM2/16 | 1067 | 442 | 625 | 1" | Φ64 |
2.5SDM2/21 | 1251 | 492 | 759 | 1" | Φ64 |
2.5SDM2/29 | 1537 | 542 | 995 | 1" | Φ64 |

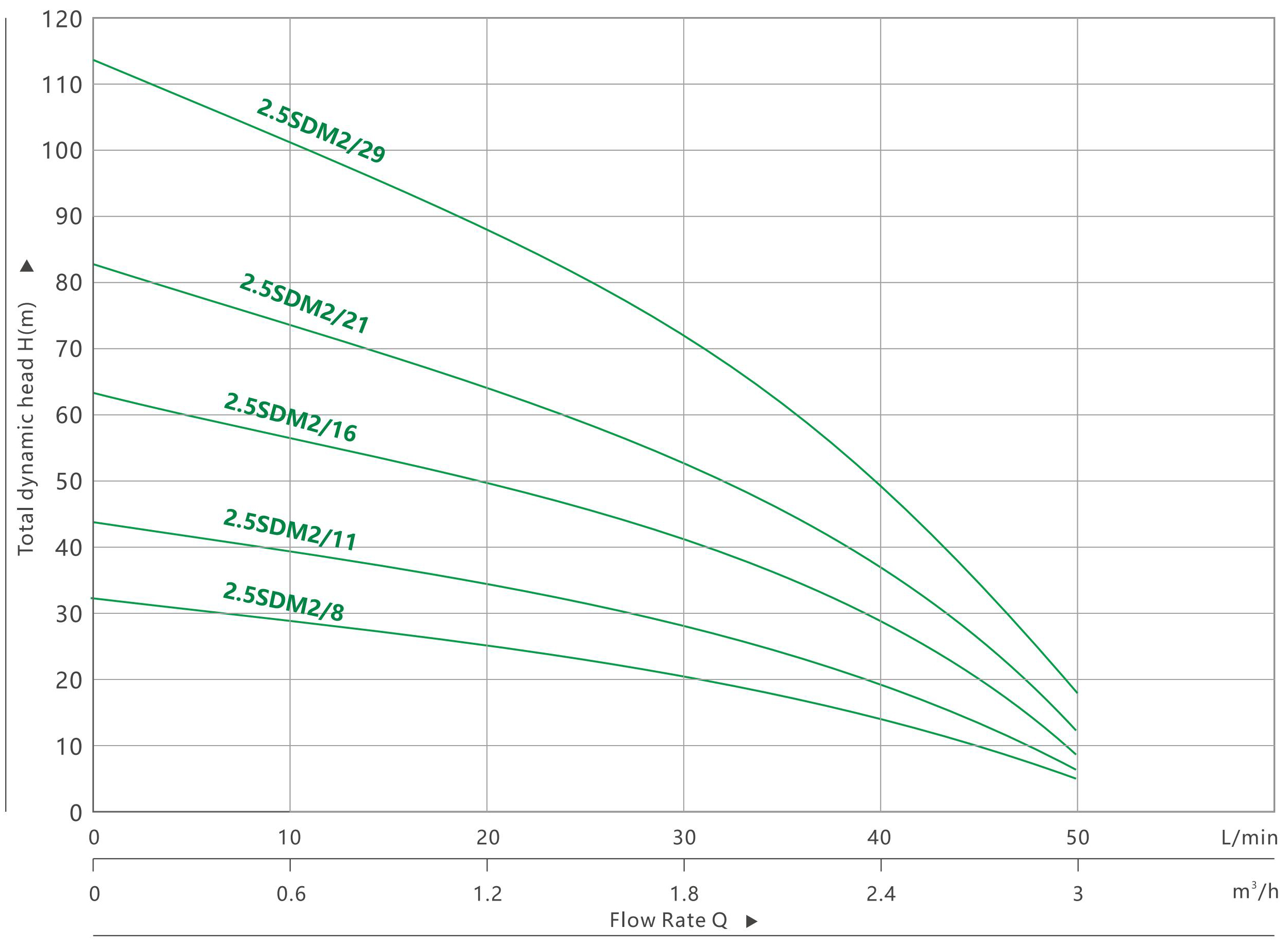

PERFORMANCE DATA 60 HZ
MODEL | Power | Flow | ||||||||||||
1~110v/220v | KW | HP | Q | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | ||||
2.5SDM2/8 | 0.18 | 0.25 | H(m) | 31 | 30 | 28 | 26 | 24 | 22 | 20 | 17 | 13 | 8 | 5 |
2.5SDM2/11 | 0.25 | 0.33 | 43 | 41 | 38 | 36 | 34 | 30 | 27 | 23 | 18 | 11 | 6 | |
2.5SDM2/16 | 0.37 | 0.5 | 62 | 59 | 55 | 52 | 49 | 44 | 39 | 34 | 26 | 16 | 9 | |
2.5SDM2/21 | 0.55 | 0.75 | 82 | 78 | 72 | 68 | 64 | 58 | 51 | 44 | 34 | 21 | 12 | |
2.5SDM2/29 | 0.75 | 1 | 114 | 108 | 100 | 94 | 88 | 80 | 71 | 61 | 47 | 29 | 17 | |
