IDENTIFICATION CODE
3SD
3: Well diameter: 78mm(3")
SD: SD Series submersible pump
M: Single phase motor(Three phase without M)
2: Capacity(m³/h)
6: Stage
APPLICATIONS
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
OPERATING CONDITIONS
Maximum fluid temperature up to +35 °C.
Maximum sand content: 0.25%.
Maximum immersion: 100m.
Minimum well diameter: 3".

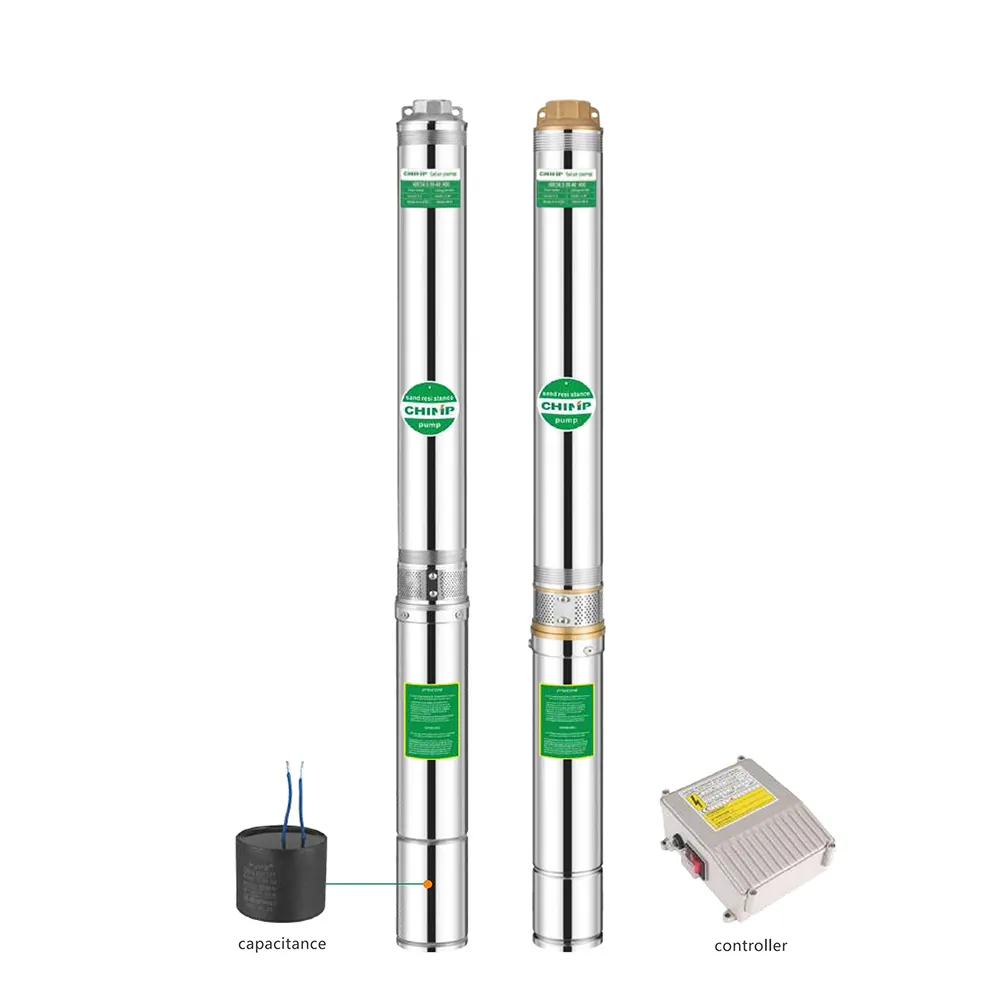

MOTOR AND PUMP
Rewindable motor or full obturated screen motor
Three-phase:220V-380V/60HZ
Single-phase:110V-220V/60Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
OPTIONS ON REQUEST
Special mechanical seal
Other voltages or frequency 50 Hz

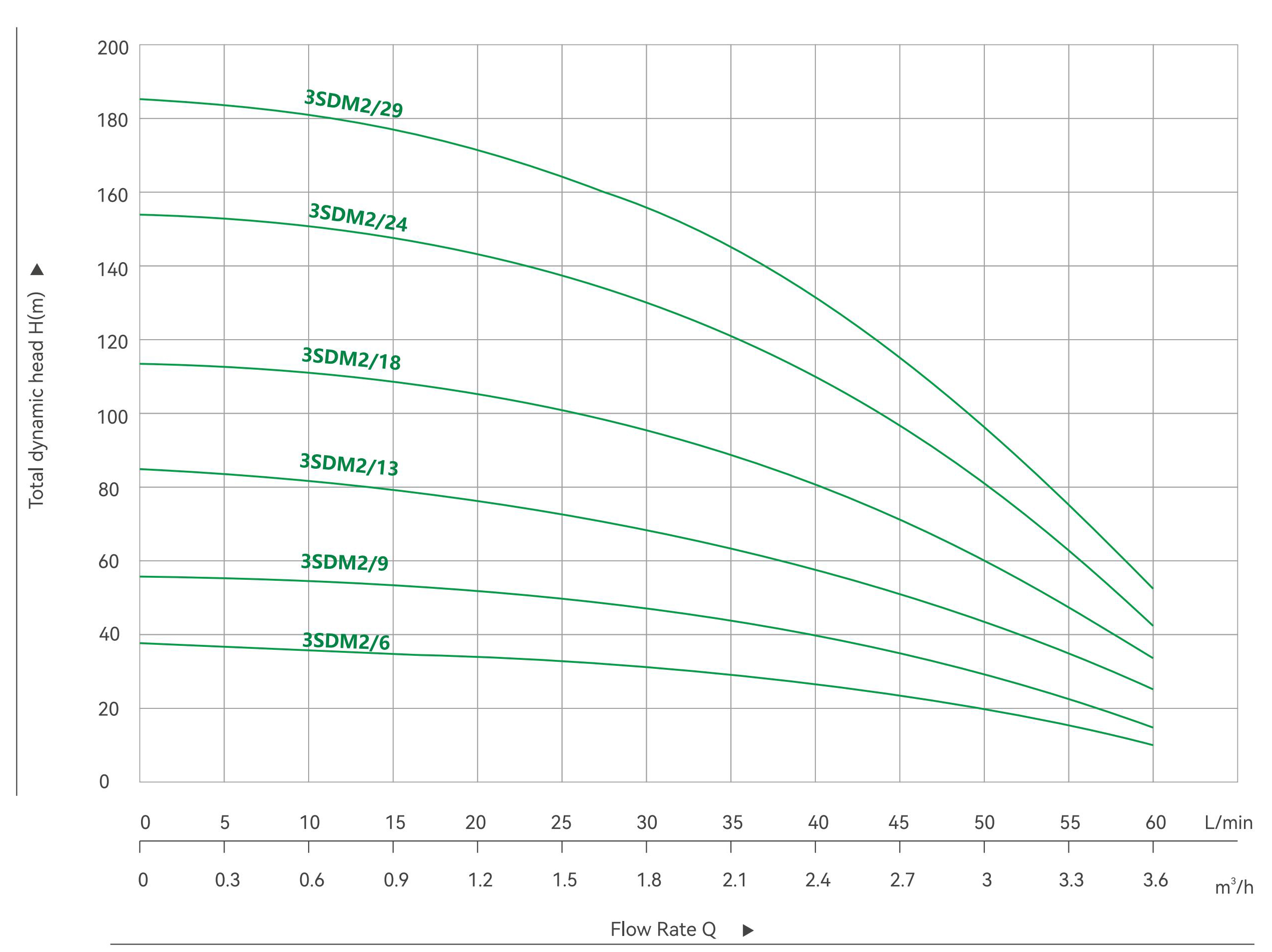

PERFORMANCE DATA 60 HZ
MODEL | Power | Flow | |||||||||||||||
1~ | 3~ | KW | HP | Q | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 |
0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | |||||
3SDM2/6 | 3SD2/6 | 0.25 | 0.33 | H(m) | 38 | 38 | 37 | 37 | 36 | 34 | 32 | 30 | 27 | 24 | 20 | 16 | 11 |
3SDM2/9 | 3SD2/9 | 0.37 | 0.5 | 57 | 57 | 56 | 55 | 53 | 50 | 48 | 46 | 40 | 36 | 30 | 23 | 16 | |
3SDM2/13 | 3SD2/13 | 0.55 | 0.75 | 83 | 82 | 81 | 80 | 77 | 73 | 70 | 66 | 58 | 52 | 43 | 34 | 23 | |
3SDM2/18 | 3SD2/18 | 0.75 | 1 | 115 | 113 | 112 | 111 | 107 | 101 | 97 | 91 | 80 | 72 | 59 | 47 | 32 | |
3SDM2/24 | 3SD2/24 | 1.1 | 1.5 | 153 | 151 | 150 | 148 | 142 | 135 | 129 | 122 | 107 | 96 | 79 | 62 | 42 | |
3SDM2/29 | 3SD2/29 | 1.5 | 2 | 185 | 183 | 181 | 178 | 172 | 163 | 156 | 147 | 129 | 116 | 96 | 75 | 51 | |

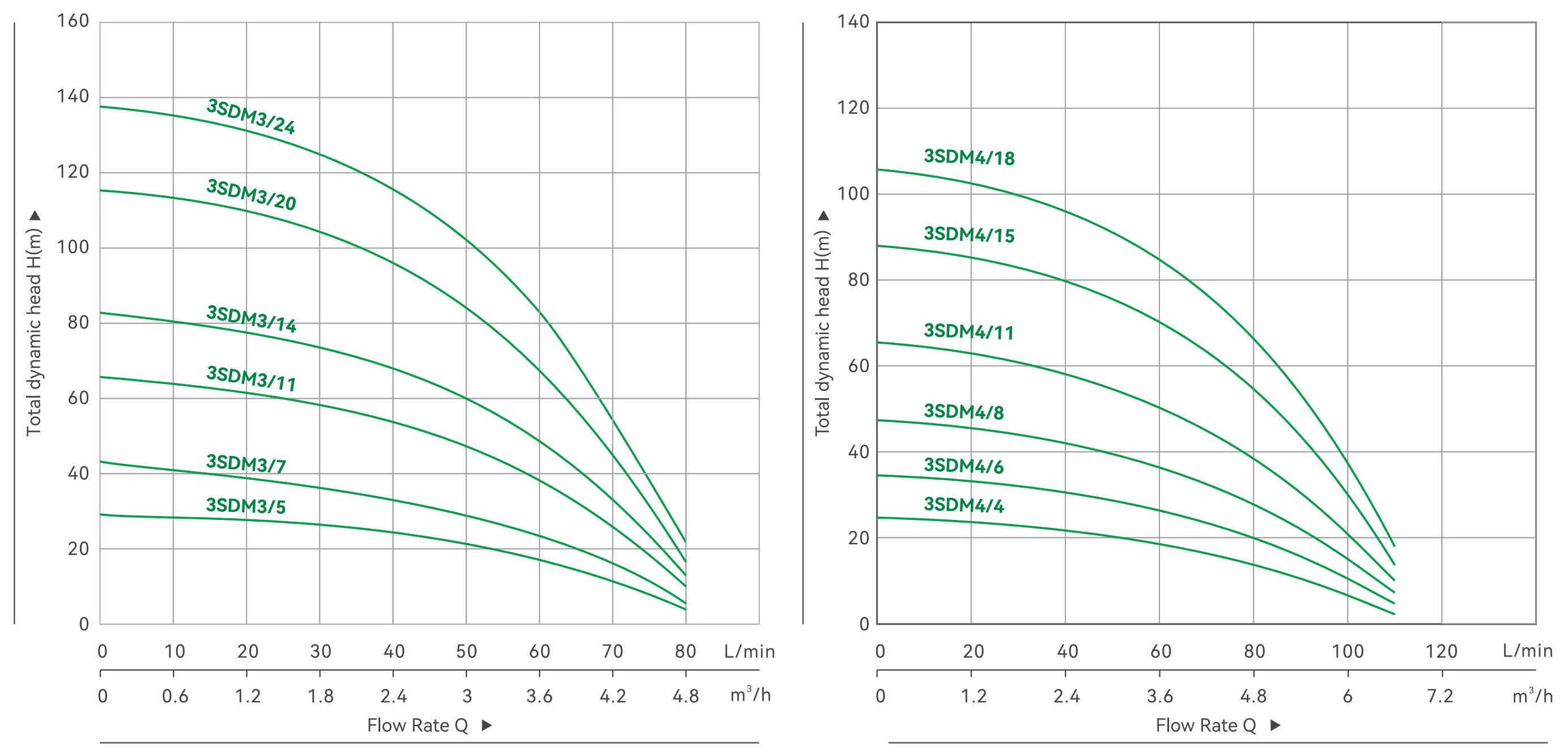

PERFORMANCE DATA 60 HZ
MODEL | Power | Flow | |||||||||||
1~ | 3~ | KW | HP | Q | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | |||||
3SDM3/5 | 3SD3/5 | 0.25 | 0.33 | H(m) | 29 | 29 | 27 | 26 | 24 | 21 | 17 | 11 | 5 |
3SDM3/7 | 3SD3/7 | 0.37 | 0.5 | 41 | 40 | 38 | 36 | 33 | 30 | 24 | 16 | 6 | |
3SDM3/11 | 3SD3/11 | 0.55 | 0.75 | 64 | 63 | 60 | 57 | 53 | 47 | 38 | 25 | 10 | |
3SDM3/14 | 3SD3/14 | 0.75 | 1 | 81 | 80 | 76 | 73 | 67 | 60 | 49 | 32 | 13 | |
3SDM3/20 | 3SD3/20 | 1.1 | 1.5 | 116 | 114 | 109 | 104 | 96 | 86 | 69 | 45 | 18 | |
3SDM3/24 | 3SD3/24 | 1.5 | 2 | 139 | 137 | 130 | 125 | 115 | 103 | 83 | 54 | 22 | |
MODEL | Power | Flow | ||||||||||||||
1~ | 3~ | KW | HP | Q | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 |
0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | 6.6 | |||||
3SDM4/4 | 3SD4/4 | 0.25 | 0.33 | H(m) | 23 | 23 | 22 | 22 | 21 | 20 | 19 | 17 | 14 | 11 | 8 | 4 |
3SDM4/6 | 3SD4/6 | 0.37 | 0.5 | 35 | 34 | 33 | 32 | 32 | 30 | 28 | 25 | 21 | 17 | 13 | 6 | |
3SDM4/8 | 3SD4/8 | 0.55 | 0.75 | 47 | 46 | 44 | 43 | 42 | 40 | 38 | 33 | 29 | 22 | 17 | 8 | |
3SDM4/11 | 3SD4/11 | 0.75 | 1 | 65 | 63 | 61 | 59 | 58 | 55 | 52 | 46 | 39 | 31 | 23 | 11 | |
3SDM4/15 | 3SD4/15 | 1.1 | 1.5 | 88 | 86 | 83 | 81 | 80 | 75 | 71 | 63 | 54 | 42 | 32 | 15 | |
3SDM4/18 | 3SD4/18 | 1.5 | 2 | 106 | 103 | 99 | 97 | 95 | 90 | 85 | 75 | 64 | 50 | 38 | 18 | |

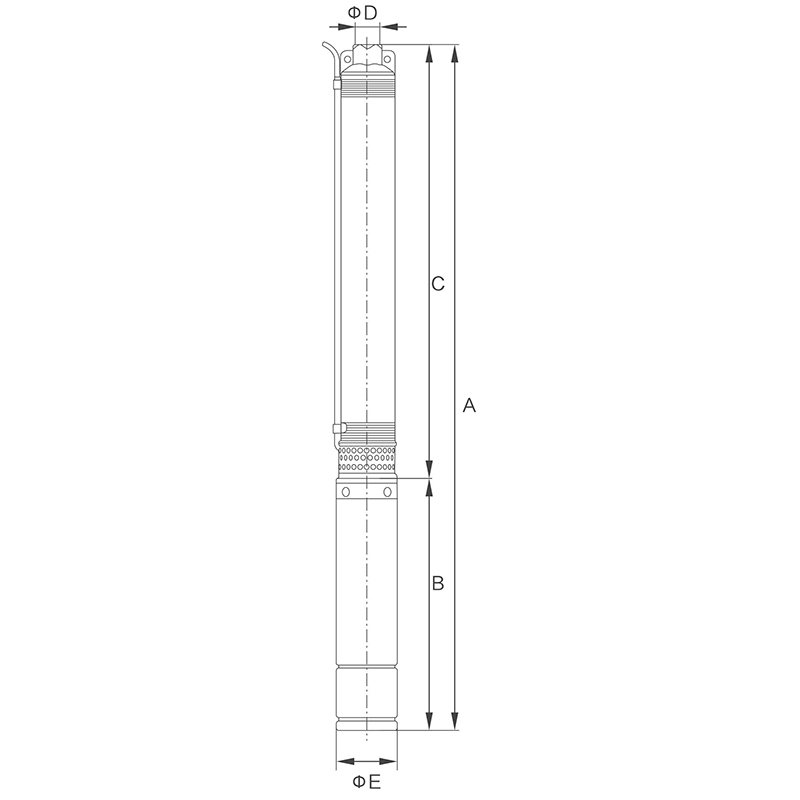

OVERALL DIMENSIONS
MODEL | A | B | C | D | E |
3SDM2/6 | 600 | 303 | 297 | 1"-1¼" | Φ73 |
3SDM2/9 | 697 | 333 | 364 | 1"-1¼" | Φ73 |
3SDM2/13 | 862 | 373 | 489 | 1"-1¼" | Φ73 |
3SDM2/18 | 1040 | 403 | 637 | 1"-1¼" | Φ73 |
3SDM2/24 | 1299 | 488 | 811 | 1"-1¼" | Φ73 |
3SDM2/29 | 1461 | 538 | 923 | 1"-1¼" | Φ73 |
3SDM3/5 | 596 | 303 | 293 | 1"-1¼" | Φ73 |
3SDM3/7 | 678 | 333 | 345 | 1"-1¼" | Φ73 |
3SDM3/11 | 858 | 373 | 485 | 1"-1¼" | Φ73 |
3SDM3/14 | 966 | 403 | 563 | 1"-1¼" | Φ73 |
3SDM3/20 | 1246 | 488 | 758 | 1"-1¼" | Φ73 |
3SDM3/24 | 1436 | 538 | 898 | 1"-1¼" | Φ73 |
3SDM4/4 | 592 | 303 | 289 | 1¼"-1½" | Φ73 |
3SDM4/6 | 685 | 333 | 352 | 1¼"-1½" | Φ73 |
3SDM4/8 | 788 | 373 | 415 | 1¼"-1½" | Φ73 |
3SDM4/11 | 949 | 403 | 546 | 1¼"-1½" | Φ73 |
3SDM4/15 | 1200 | 488 | 712 | 1¼"-1½" | Φ73 |
3SDM4/18 | 1345 | 538 | 807 | 1¼"-1½" | Φ73 |
