4SDM Borehole Pump

APPLICATIONS For water supply from wells or reservoirs. For domestic use, for civil and industrial applications. For garden use and irrigation.

分享：

联系我们

在线询价

邮箱：sales1@chimppump.com

详细介绍

IDENTIFICATION CODE

4SD

4: Well diameter: 100mm(4")

SD: SD Series submersible pump

M: Single phase motor(Three phase without M)

2: Capacity(m³/h)

6: Stage

APPLICATIONS

For water supply from wells or reservoirs.

For domestic use, for civil and industrial applications.

For garden use and irrigation.

OPERATING CONDITIONS

Maximum fluid temperature up to +35 ℃.

Maximum sand content: 0.25%.

Maximum immersion: 100m.

Minimum well diameter: 4"

MOTOR AND PUMP

Rewindable motor or full obturated screen motor

Three-phase:220V-380V/60HZ

Single-phase:110V-220V/60Hz

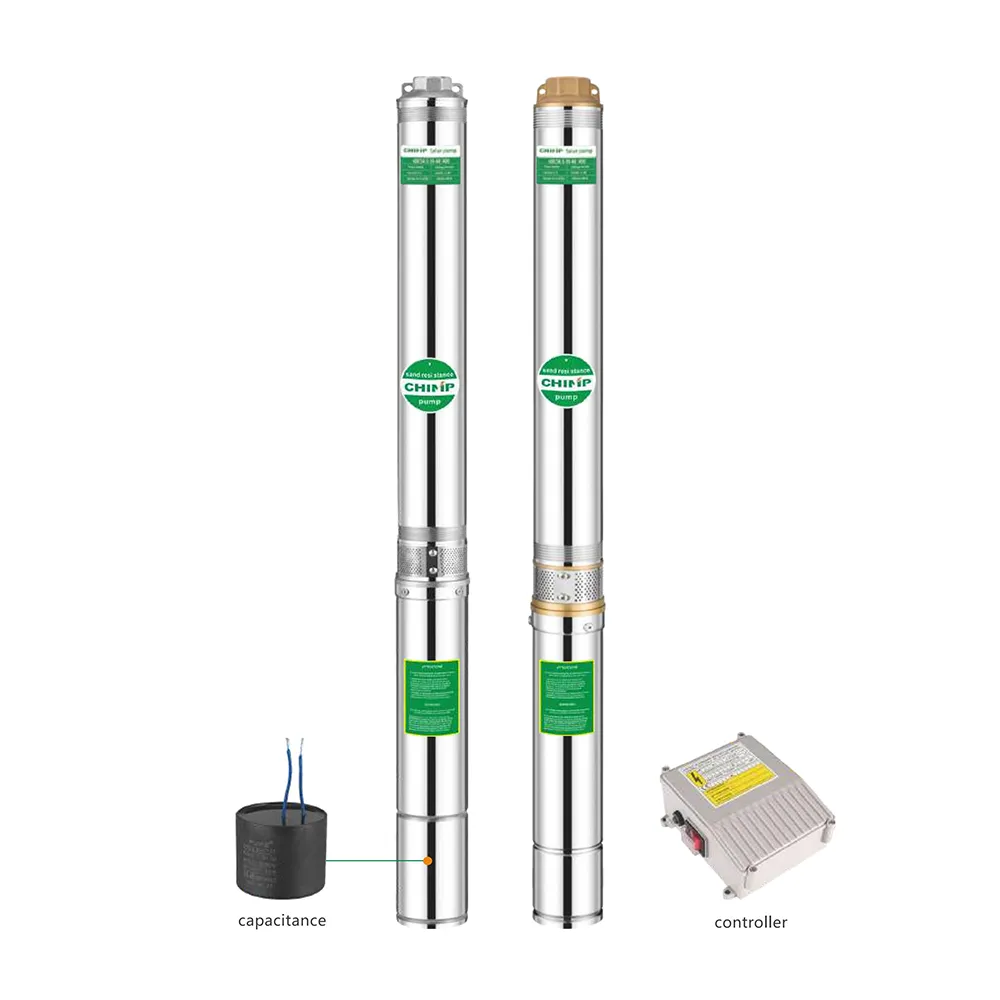

Equip with start control box or digital auto-control box

Pumps are designed by casing stressed

NEMA dimension standards

OPTIONS ON REQUEST

Special mechanical seal

Other voltages or frequency 50 Hz

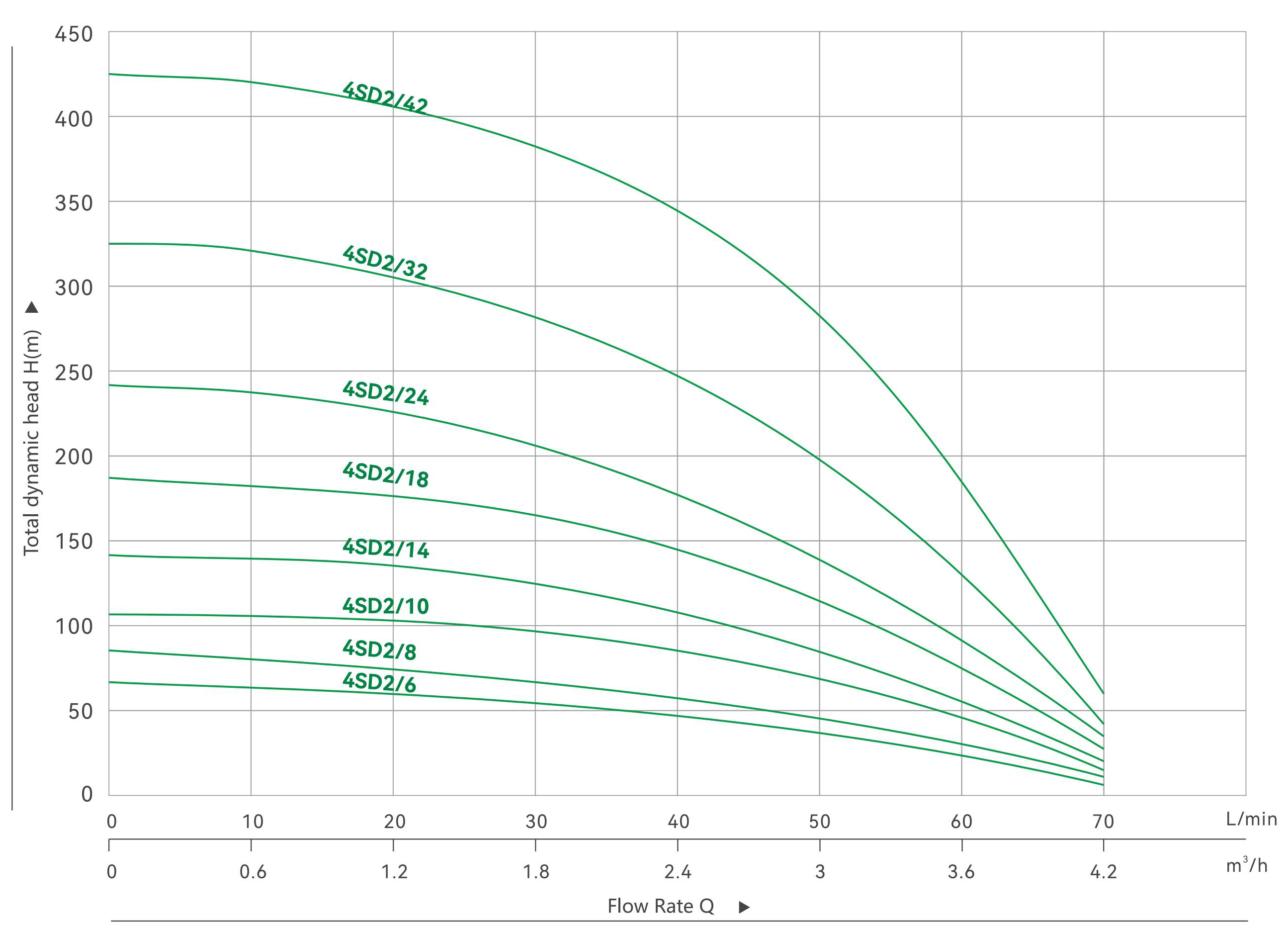

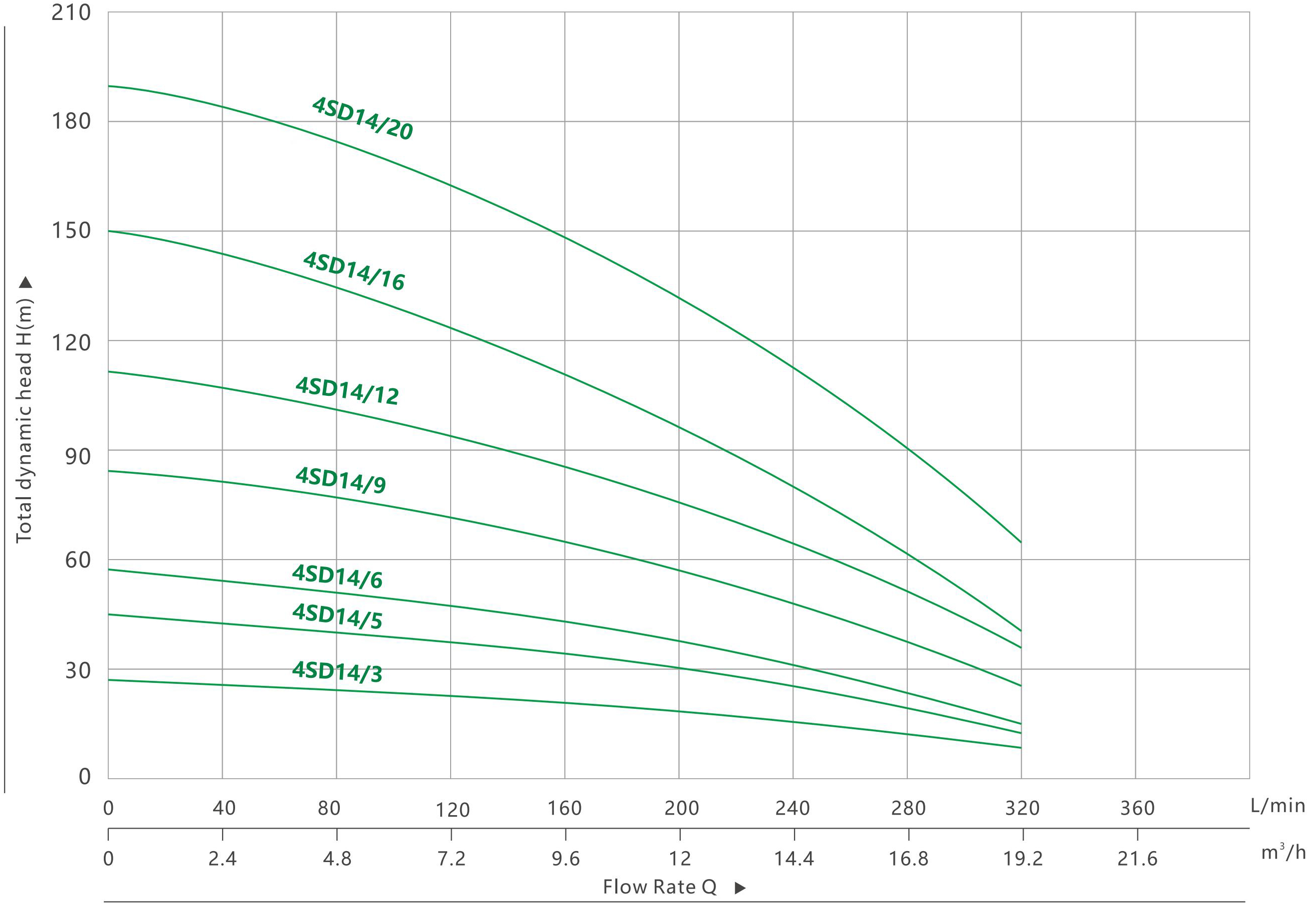

PERFORMANCE DATA 60 HZ

MODEL		Power		Q l/min m³/h	Flow
1~110v/220v	3~220v/380v	KW	HP		0	5	10	15	20	25	30	35	40	45	50	55	60	70
1~110v/220v	3~220v/380v	KW	HP		0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3	3.3	3.6	4.2
4SDM2/6	4SD2/6	0.37	0.5	H(m)	62	62	61	60	59	56	54	49	46	43	38	30	25	8
4SDM2/8	4SD2/8	0.55	0.75		82	82	82	80	78	75	73	66	62	57	50	40	34	11
4SDM2/10	4SD2/10	0.75	1		103	103	102	100	98	94	91	82	77	71	63	50	42	14
4SDM2/14	4SD2/14	1.1	1.5		144	144	143	140	137	132	127	115	108	99	88	69	59	20
4SDM2/18	4SD2/18	1.5	2		185	185	184	180	176	169	163	148	139	128	113	89	76	25
4SDM2/24	4SD2/24	2.2	3		247	246	245	240	235	226	218	197	185	170	151	119	101	34
/	4SD2/32	3	4		330	328	326	320	314	301	290	262	246	227	202	158	134	45
/	4SD2/42	4	5.5		433	431	428	420	412	395	381	344	323	298	265	208	176	59

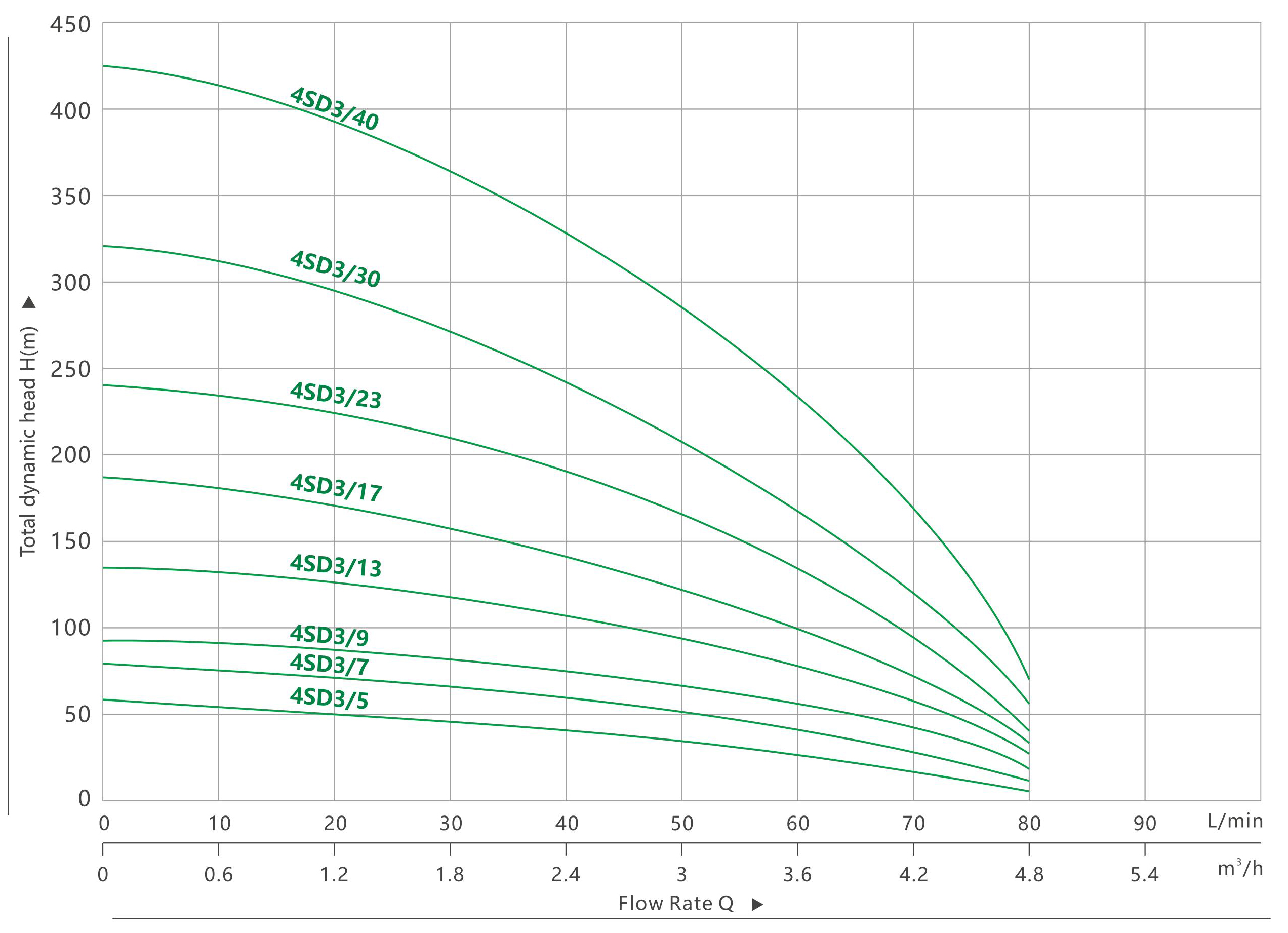

PERFORMANCE DATA 60 HZ

MODEL		Power		Q l/min m³/h	Flow
1~110v/220v	3~220v/380v	KW	HP		0	10	20	30	40	50	60	70	80
1~110v/220v	3~220v/380v	KW	HP		0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8
4SDM3/5	4SD3/5	0.37	0.5	H(m)	54	52	50	47	41	37	30	21	9
4SDM3/7	4SD3/7	0.55	0.75		75	73	69	65	57	51	41	30	12
4SDM3/9	4SD3/9	0.75	1		96	94	89	84	73	66	53	38	16
4SDM3/13	4SD3/13	1.1	1.5		139	135	129	121	106	95	77	55	23
4SDM3/17	4SD3/17	1.5	2		182	177	168	158	139	124	100	72	30
4SDM3/23	4SD3/23	2.2	3		246	239	228	214	187	168	136	98	40
/	4SD3/30	3	4		321	312	297	279	245	219	177	128	53
/	4SD3/40	4	5.5		428	416	396	372	326	292	236	170	70

PERFORMANCE DATA 60 HZ

MODEL		Power		Q l/min m³/h	Flow
1~110v/220v	3~220v/380v	KW	HP		0	10	20	30	40	50	60	70	80	90	100
1~110v/220v	3~220v/380v	KW	HP		0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8	5.4	6
4SDM4/4	4SD4/4	0.37	0.5	H(m)	42	41	41	39	37	34	32	27	22	17	10
4SDM4/5	4SD4/5	0.55	0.75		53	52	51	49	47	43	40	34	28	22	12
4SDM4/7	4SD4/7	0.75	1		74	72	71	68	65	60	55	47	39	30	17
4SDM4/10	4SD4/10	1.1	1.5		105	103	102	98	93	85	79	67	55	43	25
4SDM4/13	4SD4/13	1.5	2		137	134	132	127	121	111	103	87	72	56	32
4SDM4/18	4SD4/18	2.2	3		189	185	183	176	167	153	142	121	99	77	44
/	4SD4/24	3	4		252	247	244	234	223	204	190	161	132	103	59
/	4SD4/31	4	5.5		326	319	315	303	288	264	245	208	171	133	76
/	4SD4/40	5.5	7.5		420	412	406	391	372	340	316	268	220	172	98

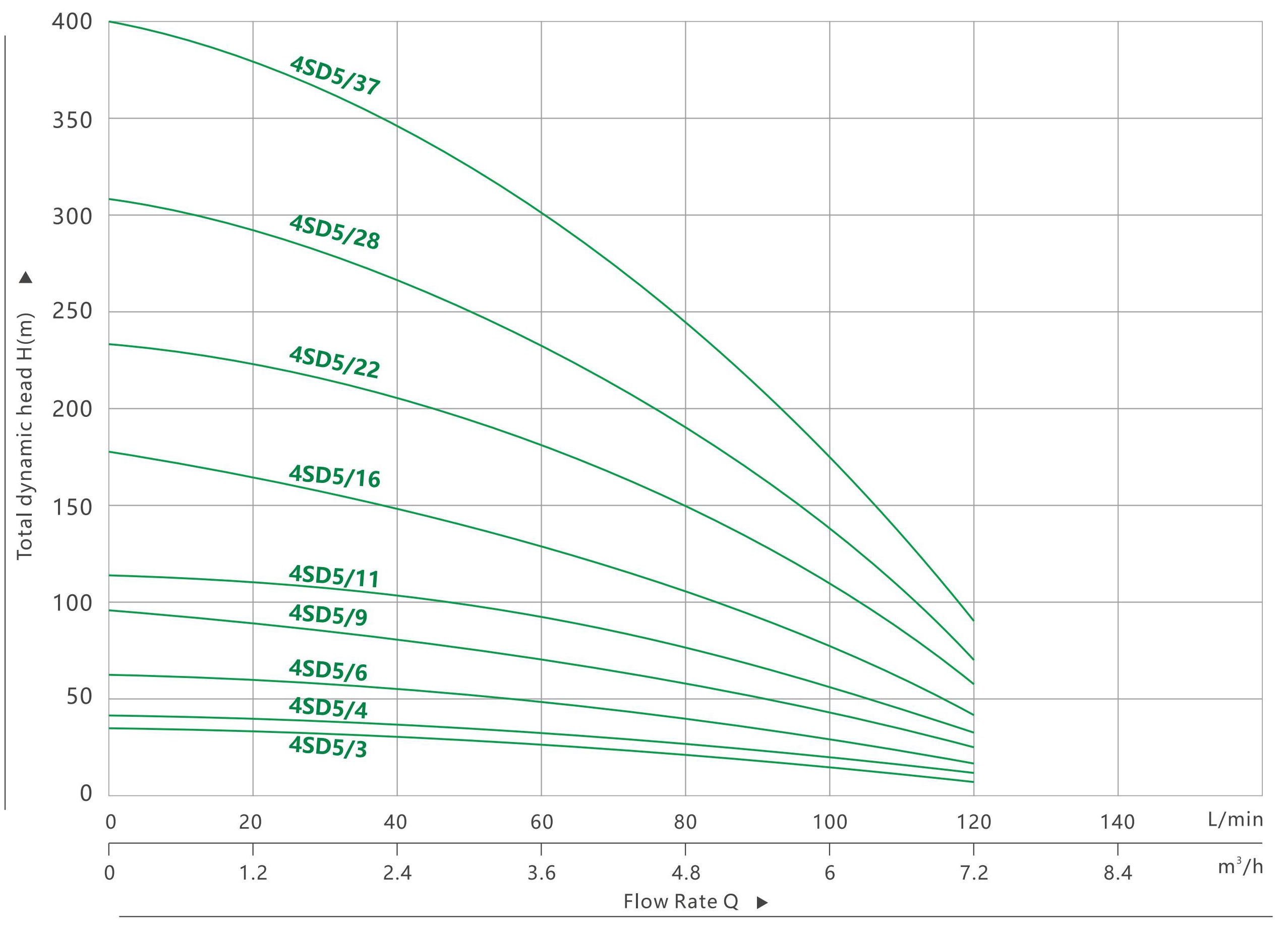

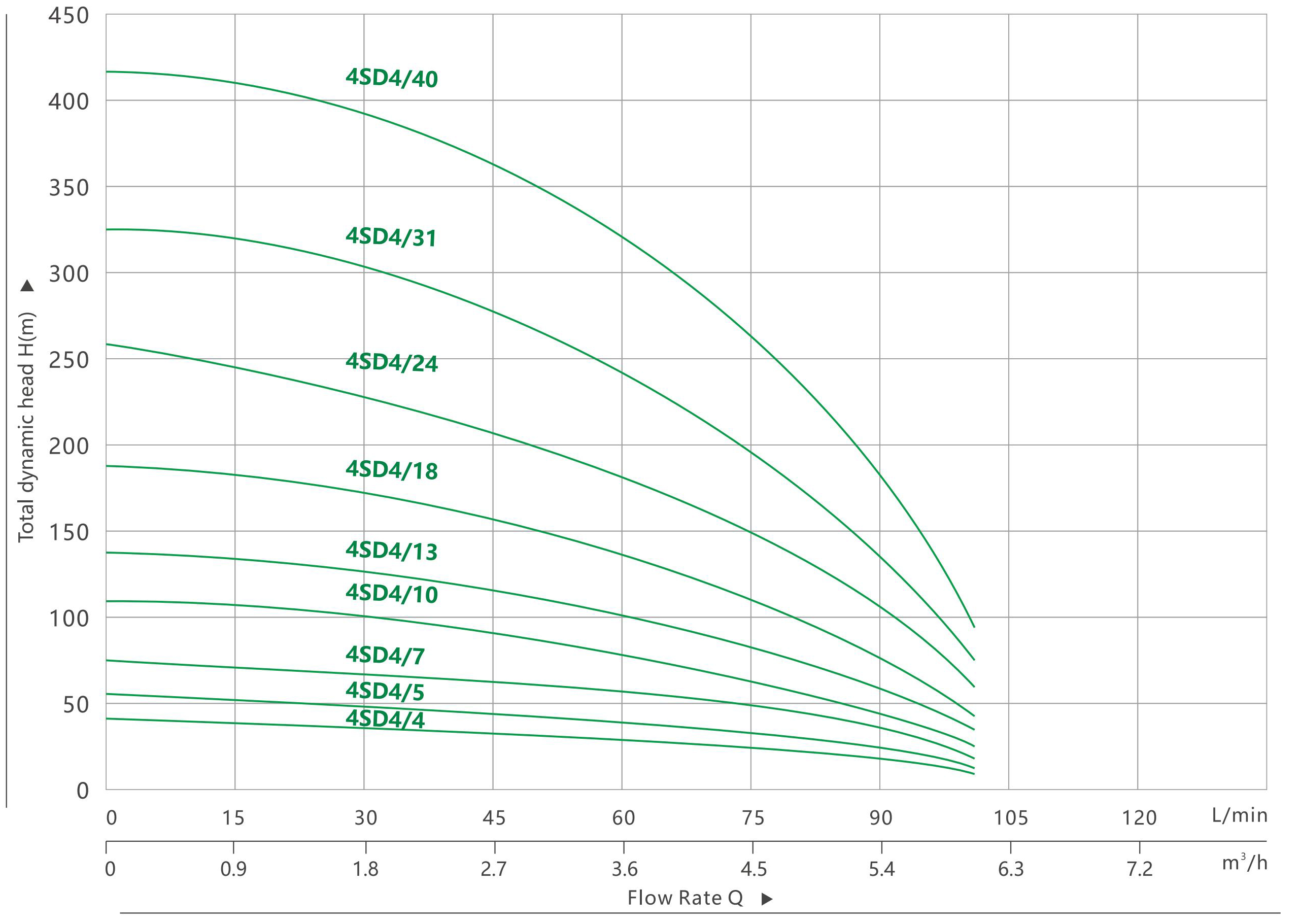

PERFORMANCE DATA 60 HZ

MODEL		Power		Q L/min m³/h	Flow
1~110v/220v	3~220v/380v	KW	HP		0	15	30	45	60	75	90	105	120
1~110v/220v	3~220v/380v	KW	HP		0	0.9	1.8	2.7	3.6	4.5	5.4	6.3	7.2
4SDM5/3	4SD5/3	0.37	0.5	H(m)	32	30	29	27	25	22	19	14	8
4SDM5/4	4SD5/4	0.55	0.75		43	40	38	36	33	29	26	18	10
4SDM5/6	4SD5/6	0.75	1		65	60	57	55	50	44	38	27	15
4SDM5/9	4SD5/9	1.1	1.5		97	90	86	82	75	66	58	41	23
4SDM5/11	4SD5/11	1.5	2		119	110	105	100	91	80	70	50	28
4SDM5/16	4SD5/16	2.2	3		173	160	152	146	133	117	102	73	40
/	4SD5/22	3	4		238	220	209	200	183	161	141	100	55
/	4SD5/28	4	5.5		302	280	266	255	232	204	179	127	70
/	4SD5/37	5.5	7.5		400	370	352	337	307	270	237	168	93

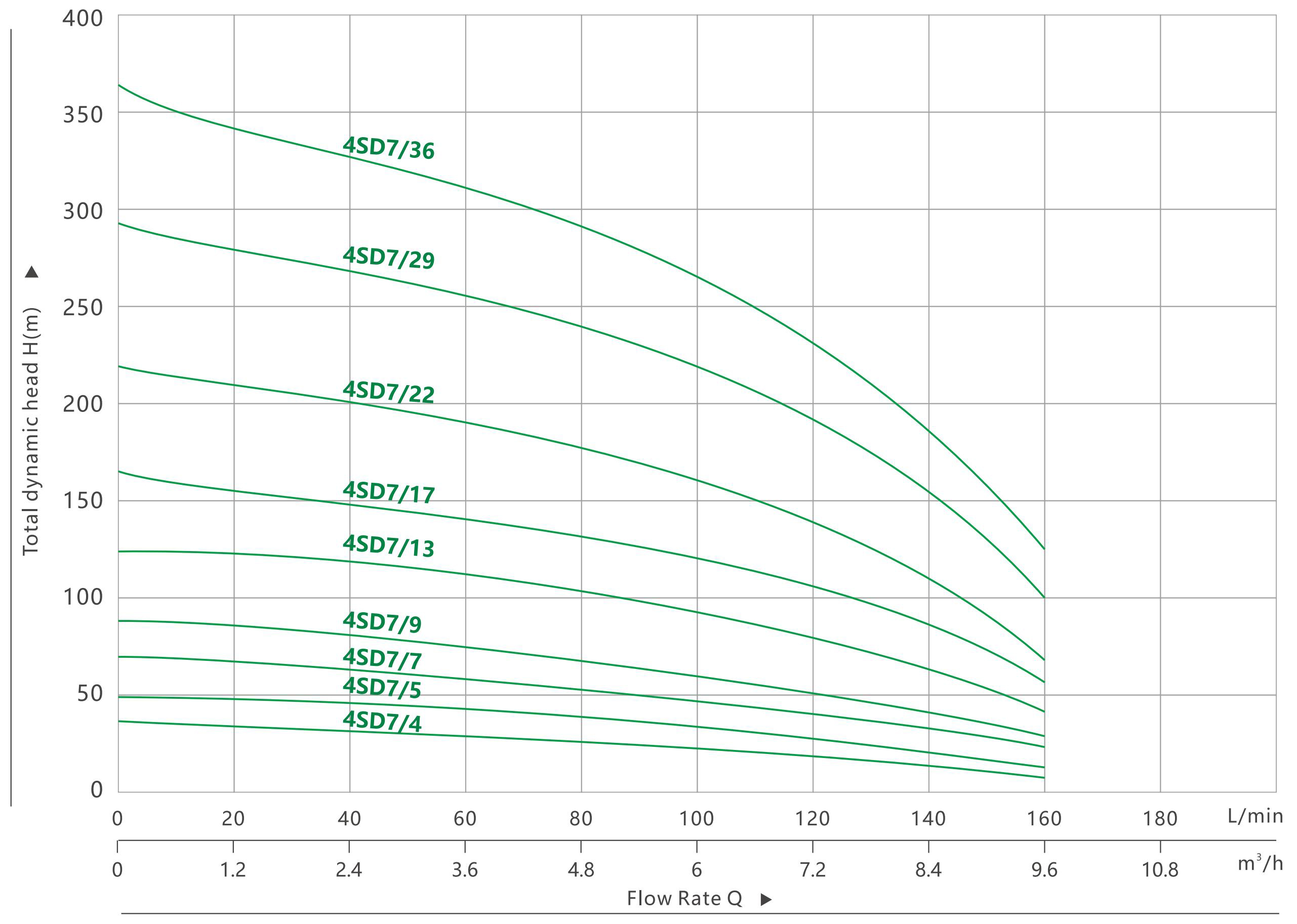

PERFORMANCE DATA 60 HZ

MODEL		Power		Q L/min m³/h	Flow
1~110v/220v	3~220v/380v	KW	HP		0	20	40	60	80	100	120	140	160
1~110v/220v	3~220v/380v	KW	HP		0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6
4SDM7/4	4SD7/4	0.55	0.75	H(m)	40	37	37	35	33	29	25	20	14
4SDM7/5	4SD7/5	0.75	1		51	47	46	44	41	37	32	25	17
4SDM7/7	4SD7/7	1.1	1.5		71	65	64	62	58	51	44	34	24
4SDM7/9	4SD7/9	1.5	2		91	84	83	79	74	66	57	44	31
4SDM7/13	4SD7/13	2.2	3		131	121	120	114	107	95	82	64	45
/	4SD7/17	3	4		172	158	156	150	140	125	107	84	59
/	4SD7/22	4	5.5		222	205	202	194	181	161	139	108	76
/	4SD7/29	5.5	7.5		293	270	267	255	238	213	183	143	100
/	4SD7/36	7.5	10		364	335	331	317	296	264	227	177	124

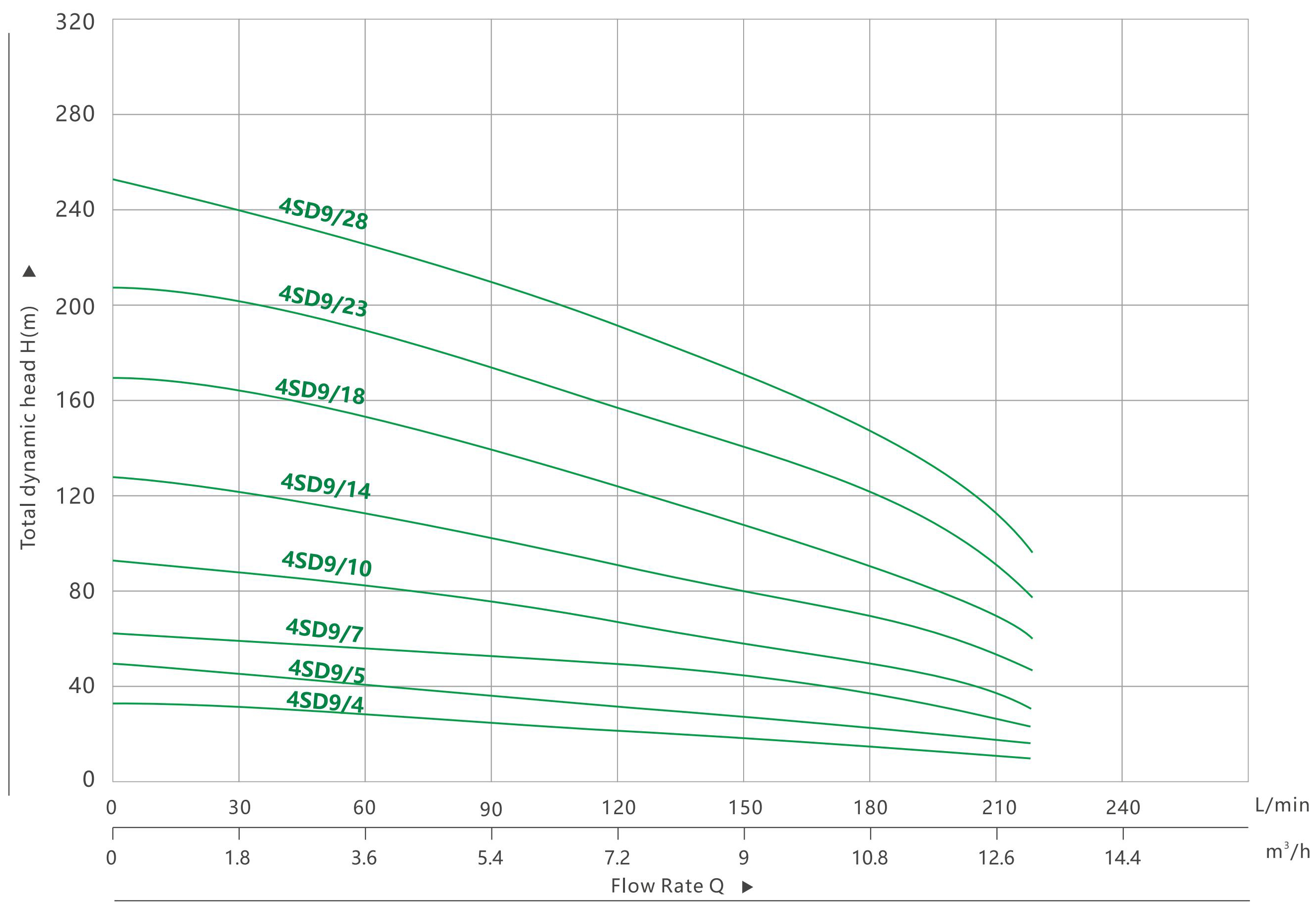

PERFORMANCE DATA 60 HZ

MODEL		Power		Q L/min m³/h	0	20	40	60	80	100	120	140	160	180	200	220
1~110v/220v	3~220v/380v	KW	HP	Q L/min m³/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8	12	13.2
4SDM9/4	4SD9/4	0.75	1	H(m)	36	36	34	31	30	29	27	26	24	21	18	14
4SDM9/5	4SD9/5	1.1	1.5		46	45	42	40	37	36	34	32	30	27	22	17
4SDM9/7	4SD9/7	1.5	2		64	63	59	55	52	50	48	45	42	37	31	24
4SDM9/10	4SD9/10	2.2	3		91	90	84	79	74	71	68	64	60	53	44	35
/	4SD9/14	3	4		127	126	118	110	104	100	95	90	84	74	62	48
/	4SD9/18	4	5.5		164	162	151	141	134	129	122	115	108	95	79	62
/	4SD9/23	5.5	7.5		209	207	193	181	171	164	158	147	138	122	101	79
/	4SD9/28	7.5	10		255	252	235	220	208	200	190	179	168	145	123	97

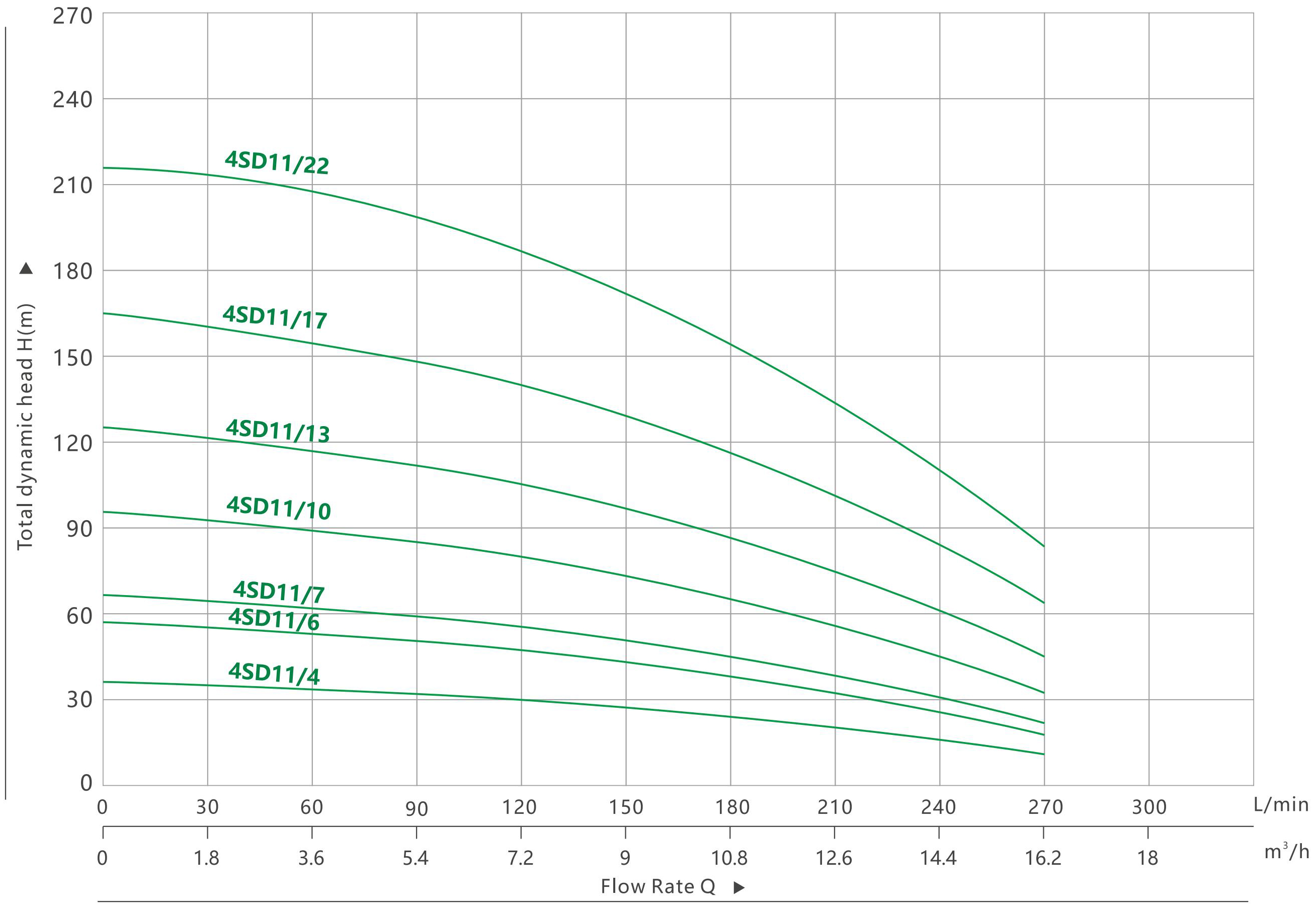

PERFORMANCE DATA 60 HZ

MODEL		Power		Q L/min m³/h	0	30	60	90	120	150	180	210	240	270
1~110v/220v	3~220v/380v	KW	HP	Q L/min m³/h	0	1.8	3.6	5.4	7.2	9	10.8	12.6	14.4	16.2
4SDM11/4	4SD11/4	1.1	1.5	H(m)	39	39	37	35	33	31	29	25	21	15
4SDM11/6	4SD11/6	1.5	2		59	58	56	52	50	47	43	37	31	22
4SDM11/7	4SD11/7	2.2	3		69	68	65	61	58	55	50	43	36	26
/	4SD11/10	3	4		98	97	93	87	83	79	72	62	52	37
/	4SD11/13	4	5.5		127	126	121	113	108	102	93	81	68	48
/	4SD11/17	5.5	7.5		167	165	158	148	141	133	122	105	88	63
/	4SD11/22	7.5	10		216	213	205	191	183	173	157	136	114	81

PERFORMANCE DATA 60 HZ

MODEL		Power		Q l/min m³/h	Flow
1~110v/220v	3~220v/380v	KW	HP		0	40	80	120	160	200	240	280	320
1~110v/220v	3~220v/380v	KW	HP		0	2.4	4.8	7.2	9.6	12	14.4	16.8	19.2
4SDM14/3	4SD14/3	1.1	1.5	H(m)	28	27	25	23	22	20	17	15	10
4SDM14/5	4SD14/5	1.5	2		47	46	42	39	36	33	29	25	16
4SDM14/6	4SD14/6	2.2	3		56	55	50	47	43	39	34	30	19
/	4SD14/9	3	4		85	82	75	70	65	59	51	45	29
/	4SD14/12	4	5.5		113	109	100	94	86	78	68	60	38
/	4SD14/16	5.5	7.5		150	146	133	125	115	104	91	80	51
/	4SD14/20	7.5	10		188	182	166	156	144	130	114	100	64

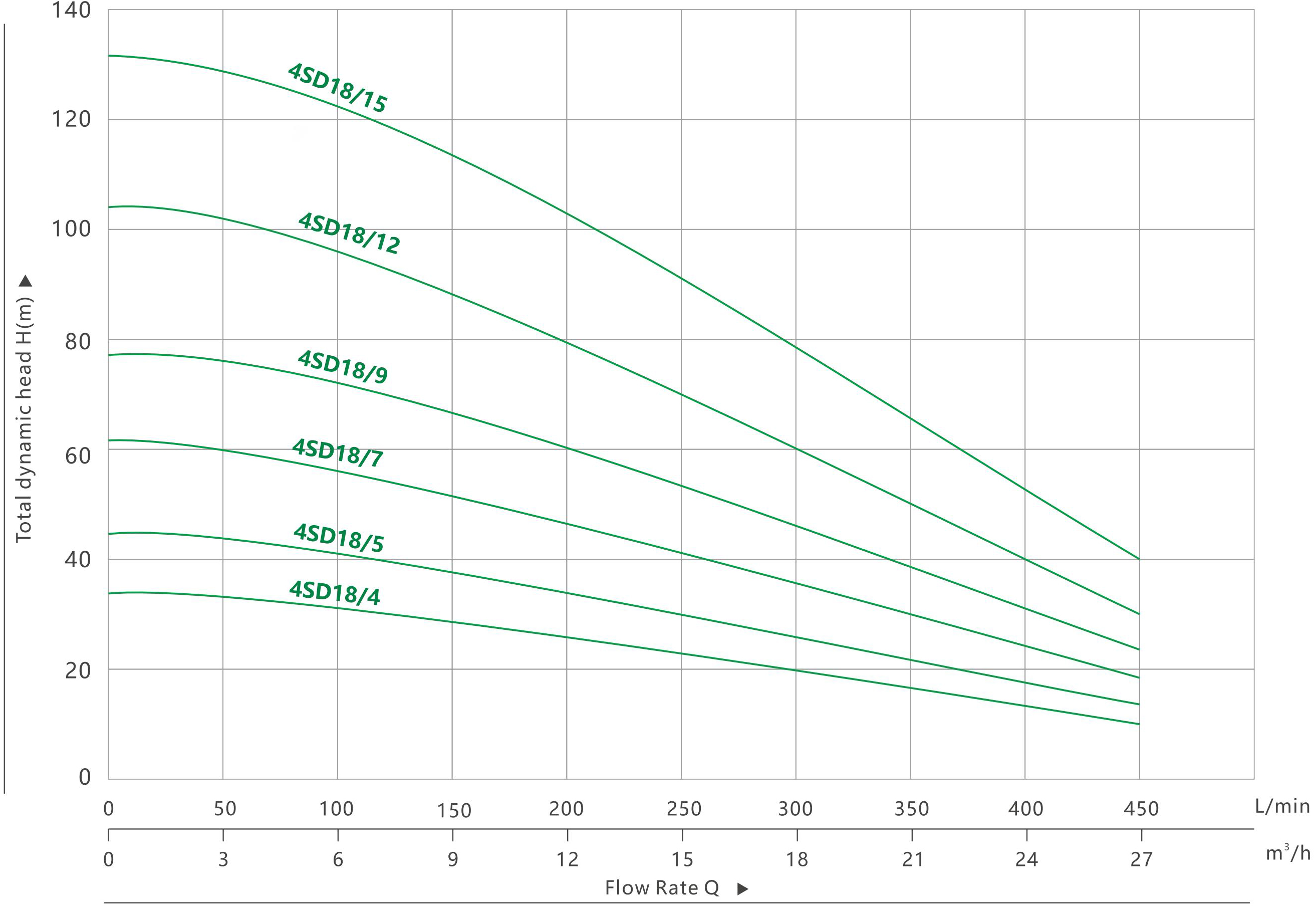

PERFORMANCE DATA 60 HZ

MODEL		Power		Q l/min m³/h	Flow
1~110v/220v	3~220v/380v	KW	HP		0	50	100	150	200	250	300	350	400	450
1~110v/220v	3~220v/380v	KW	HP		0	3	6	9	12	15	18	21	24	27
4SDM18/4	4SD18/4	1.5	2	H(m)	35	34	33	30	27	24	23	20	15	11
4SDM18/5	4SD18/5	2.2	3		44	43	41	38	34	31	29	25	19	13
/	4SD18/7	3	4		62	60	57	53	47	43	40	35	27	19
/	4SD18/9	4	5.5		79	77	74	68	60	55	51	45	35	24
/	4SD18/12	5.5	7.5		106	102	98	91	80	73	68	60	46	32
/	4SD18/15	7.5	10		132	128	123	114	101	92	86	75	58	40

OVERALL DIMENSIONS

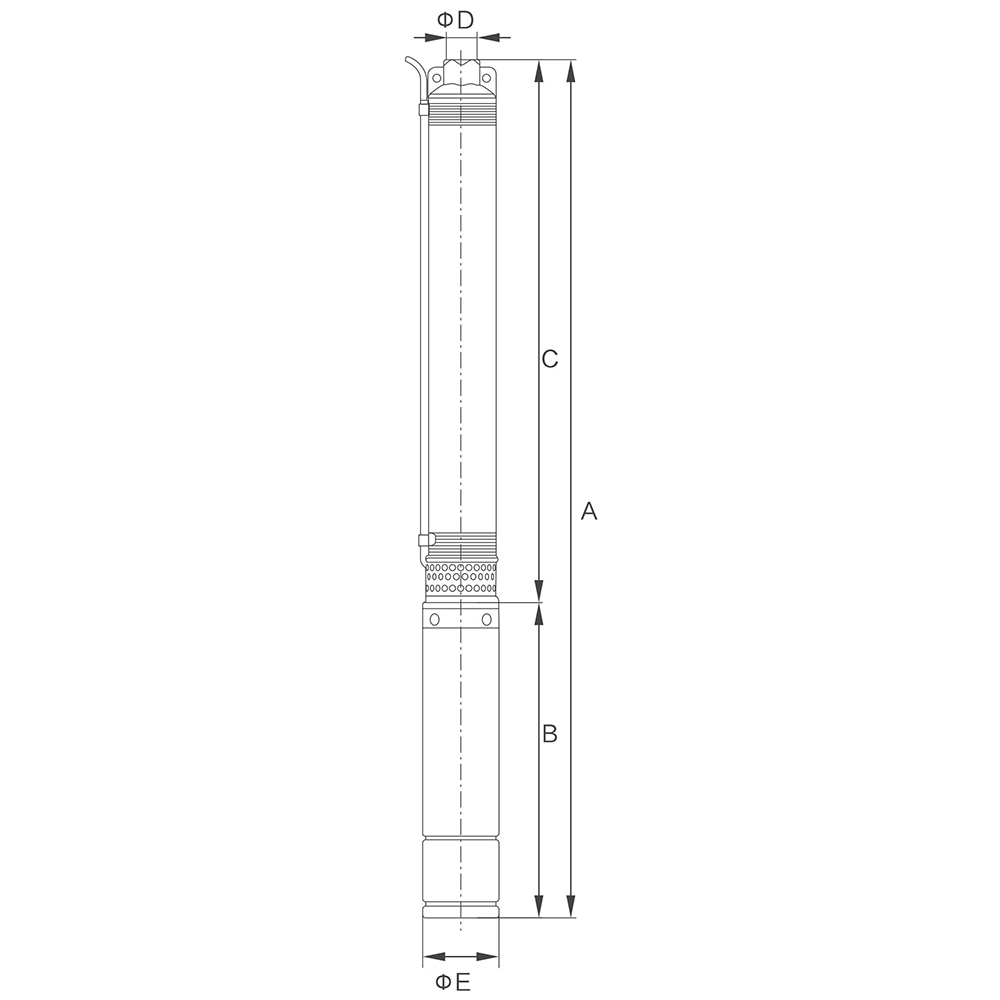

SIZE PARATEMER TABLE
MODEL	A	B	C	D	E
4SDM2/6	592	287	305	1 1/4"-1 1/2"	Φ95
4SDM2/8	659	307	352	1 1/4"-1 1/2"	Φ95
4SDM2/10	720	322	398	1 1/4"-1 1/2"	Φ95
4SDM2/14	918	392	526	1 1/4"-1 1/2"	Φ95
4SDM2/18	1095	442	653	1 1/4"-1 1/2"	Φ95
4SDM2/24	1417	590	827	1 1/4"-1 1/2"	Φ95
4SD2/32	1617	605	1012	1 1/4"-1 1/2"	Φ95
4SD2/42	1932	645	1287	1 1/4"-1 1/2"	Φ95
4SDM3/5	580	287	293	1 1/4"-1 1/2"	Φ95
4SDM3/7	652	307	345	1 1/4"-1 1/2"	Φ95
4SDM3/9	720	322	398	1 1/4"-1 1/2"	Φ95
4SDM3/13	931	392	539	1 1/4"-1 1/2"	Φ95
4SDM3/17	1123	442	681	1 1/4"-1 1/2"	Φ95
4SDM3/23	1465	590	875	1 1/4"-1 1/2"	Φ95
4SD3/30	1664	605	1059	1 1/4"-1 1/2"	Φ95
4SD3/40	2010	645	1365	1 1/4"-1 1/2"	Φ95
4SDM4/4	552	287	265	1 1/4"-1 1/2"	Φ95
4SDM4/5	598	307	291	1 1/4"-1 1/2"	Φ95
4SDM4/7	666	322	344	1 1/4"-1 1/2"	Φ95
4SDM4/10	814	392	422	1 1/4"-1 1/2"	Φ95
4SDM4/13	978	442	536	1 1/4"-1 1/2"	Φ95
4SDM4/18	1293	590	703	1 1/4"-1 1/2"	Φ95
4SD4/24	1500	605	895	1 1/4"-1 1/2"	Φ95
4SD4/31	1729	645	1084	1 1/4"-1 1/2"	Φ95
4SD4/40	2144	789	1355	1 1/4"-1 1/2"	Φ95
4SDM5/3	535	287	248	1 1/4"-1 1/2"	Φ95
4SDM5/4	583	307	276	1 1/4"-1 1/2"	Φ95
4SDM5/6	656	322	334	1 1/4"-1 1/2"	Φ95
4SDM5/9	813	392	421	1 1/4"-1 1/2"	Φ95
4SDM5/11	956	442	514	1 1/4"-1 1/2"	Φ95
4SDM5/16	1284	590	694	1 1/4"-1 1/2"	Φ95
4SD5/22	1473	605	868	1 1/4"-1 1/2"	Φ95
4SD5/28	1722	645	1077	1 1/4"-1 1/2"	Φ95
4SD5/37	2167	789	1378	1 1/4"-1 1/2"	Φ95

OVERALL DIMENSIONS

SIZE PARATEMER TABLE
MODEL	A	B	C	D	E
4SDM7/4	605	307	298	1 1/2"-2"	Φ95
4SDM7/5	655	322	333	1 1/2"-2"	Φ95
4SDM7/7	793	392	401	1 1/2"-2"	Φ95
4SDM7/9	948	442	506	1 1/2"-2"	Φ95
4SDM7/13	1233	590	643	1 1/2"-2"	Φ95
4SD7/17	1422	605	817	1 1/2"-2"	Φ95
4SD7/22	1670	645	1025	1 1/2"-2"	Φ95
4SD7/29	2060	789	1271	1 1/2"-2"	Φ95
4SD7/36	2387	840	1547	1 1/2"-2"	Φ95
4SDM9/4	635	322	313	1 1/2"-2"	Φ95
4SDM9/5	743	392	351	1 1/2"-2"	Φ95
4SDM9/7	869	442	427	1 1/2"-2"	Φ95
4SDM9/10	1167	590	577	1 1/2"-2"	Φ95
4SD9/14	1335	605	730	1 1/2"-2"	Φ95
4SD9/18	1563	645	918	1 1/2"-2"	Φ95
4SD9/23	1933	789	1144	1 1/2"-2"	Φ95
4SD9/28	2180	840	1340	1 1/2"-2"	Φ95
4SDM11/4	722	392	330	2"	Φ95
4SDM11/6	854	442	412	2"	Φ95
4SDM11/7	1043	590	453	2"	Φ95
4SD11/10	1215	605	610	2"	Φ95
4SD11/13	1378	645	733	2"	Φ95
4SD11/17	1720	789	931	2"	Φ95
4SD11/22	2011	840	1171	2"	Φ95
4SDM14/3	702	392	310	2"	Φ95
4SDM14/5	848	442	406	2"	Φ95
4SDM14/6	1044	590	454	2"	Φ95
4SD14/9	1237	605	632	2"	Φ95
4SD14/12	1421	645	776	2"	Φ95
4SD14/16	1791	789	1002	2"	Φ95
4SD14/20	2033	840	1193	2"	Φ95
4SDM18/4	919	442	477	2"	Φ95
4SDM18/5	1135	590	545	2"	Φ95
4SD18/7	1322	605	717	2"	Φ95
4SD18/9	1498	645	853	2"	Φ95
4SD18/12	1848	789	1059	2"	Φ95
4SD18/15	2138	840	1298	2"	Φ95
