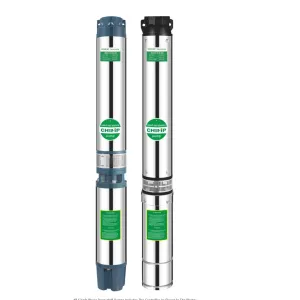

6SR Borehole Pump

6SR Borehole Pump

6SR Borehole Pump

APPLICATIONS For water supply from wells or reservoirs. For domestic use, for civil and industrial applications. For garden use and irrigation.

分享：

邮箱：sales1@chimppump.com

详细介绍

IDENTIFICATION CODE

6SP

6: Well diameter: 148mm(6")

SP: Stainless steel

30: Capacity(m³/h)

03: Stage

3.0: Motor power(KW)

APPLICATIONS

For water supply from wells or reservoirs.

For domestic use, for civil and industrial applications.

For garden use and irrigation.

OPERATING CONDITIONS

Maximum fluid temperature up to +35 °C.

Maximum sand content: 0.25%.

Maximum immersion: 100m.

Minimum well diameter: 6"

MOTOR AND PUMP

Rewindable motor or full obturated screen motor

Three-phase: 380V-415V/50Hz

Equip with start control box or digital auto-control box

Pumps are designed by casing stressed

NEMA dimension standards

OPTIONS ON REQUEST

Special mechanical seal

Other voltages or frequency 60 Hz

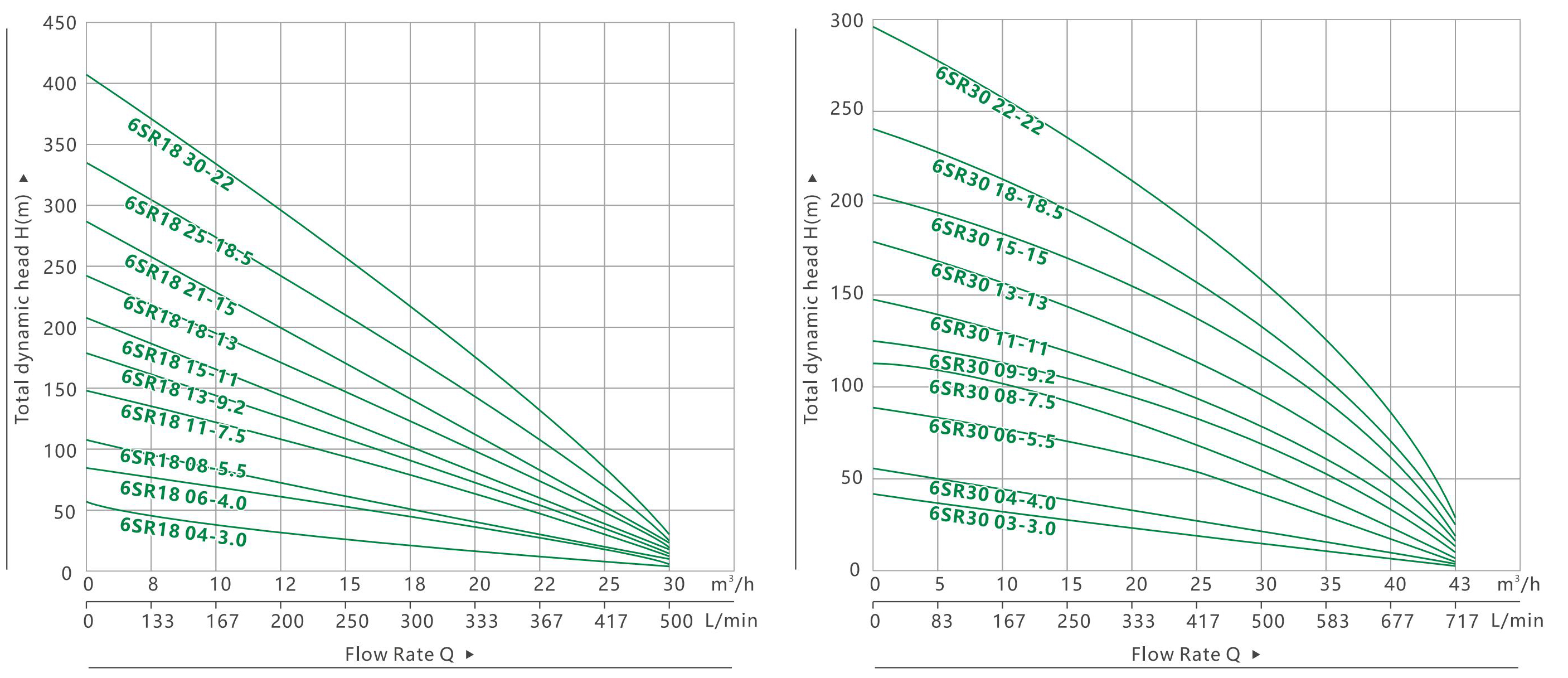

PERFORMANCE DATA 50 HZ

MODEL	P2		DELIVERY n=2850
MODEL	KW	HP	Q l/min m³/h	0	133	167	200	250	300	333	367	417	500
3~ 380V/415V	KW	HP	Q l/min m³/h	0	8	10	12	15	18	20	22	25	30
6SR18 04-3.0	3	4	H(m)	54	46	43	38	35	29	24	18	11	2
6SR18 06-4.0	4	5.5		81	69	64	57	52	43	35	27	17	3
6SR18 08-5.5	5.5	7.5		108	92	86	76	70	58	47	36	22	4
6SR18 11-7.5	7.5	10		149	127	118	105	96	79	65	50	31	5
6SR18 13-9.2	9.2	12.5		176	150	139	124	113	94	77	59	36	6
6SR18 15-11	11	15		203	173	161	143	131	108	89	68	42	7
6SR18 18-13	13	17.5		243	207	193	171	157	130	106	81	50	8
6SR18 21-15	15	20		284	242	225	200	183	151	124	95	59	9
6SR18 25-18.5	18.5	25		338	288	268	238	218	180	148	113	70	11
6SR18 30-22	22	30		405	346	322	286	262	216	178	136	84	13

MODEL	P2		DELIVERY n=2850
MODEL	KW	HP	Q l/min m³/h	0	83	167	250	333	417	500	583	677	717
3~ 380V/415V	KW	HP	Q l/min m³/h	0	5	10	15	20	25	30	35	40	43
6SR30 03-3.0	3	4	H(m)	41	38	36	34	32	27	21	18	12	4
6SR30 04-4.0	4	5.5		54	50	48	45	42	36	28	24	16	5
6SR30 06-5.5	5.5	7.5		81	76	72	68	63	54	42	36	24	6
6SR30 08-7.5	7.5	10		108	101	96	90	84	72	56	48	32	7
6SR30 09-9.2	9.2	12.5		122	113	108	102	95	81	63	54	36	8
6SR30 11-11	11	15		149	139	132	124	116	99	77	66	44	9
6SR30 13-13	13	17.5		176	164	156	147	137	117	91	78	52	11
6SR30 15-15	15	20		203	190	180	169	158	135	105	90	60	12
6SR30 18-18.5	18.5	25		244	227	216	203	190	162	126	108	72	15
6SR30 22-22	22	30		298	278	264	248	232	198	154	132	88	18

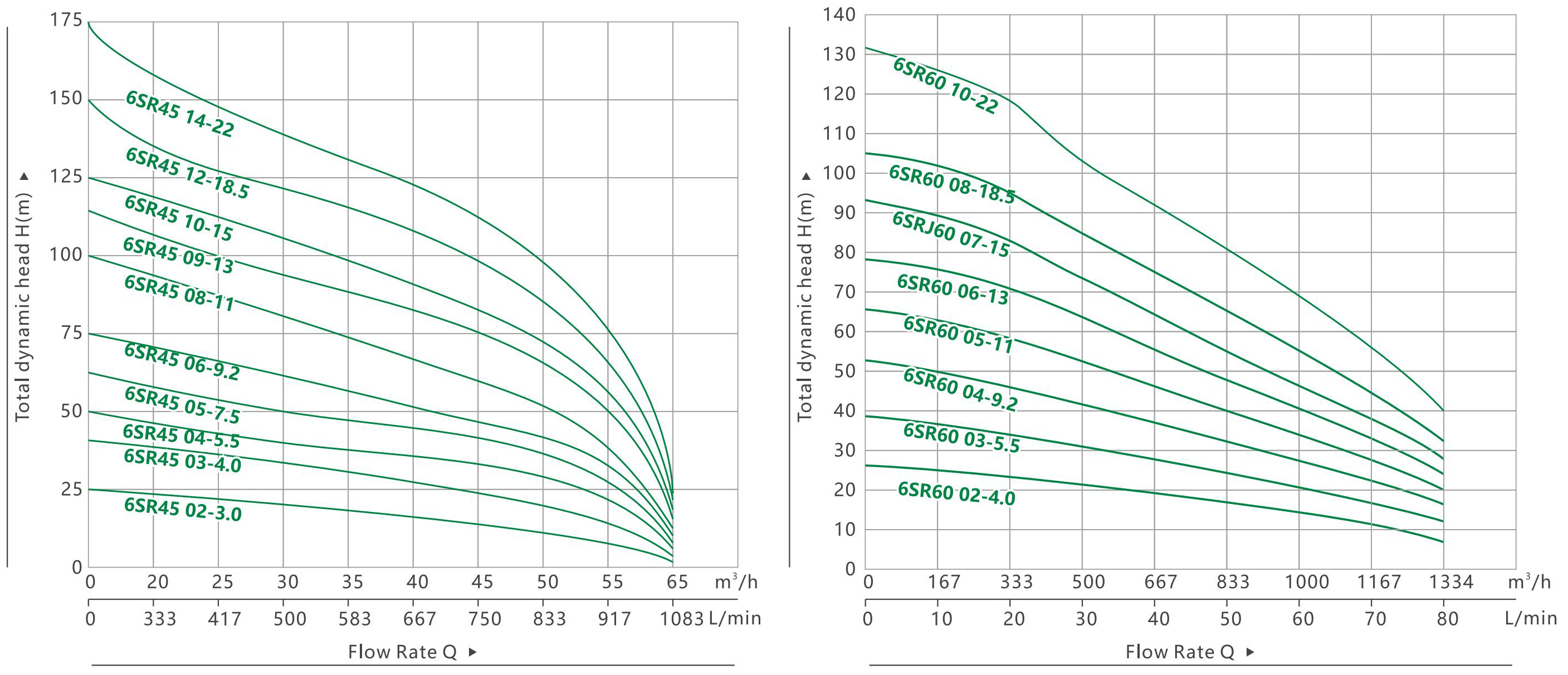

PERFORMANCE DATA 50 HZ

MODEL	P2		DELIVERY n=2850
MODEL	KW	HP	Q l/min m³/h	0	333	417	500	583	667	750	833	917	1083
3~ 380V/415V	KW	HP	Q l/min m³/h	0	20	25	30	35	40	45	50	55	65
6SR45 02-3.0	3	4	H(m)	25	22	21	20	19	17	16	14	12	4
6SR45 03-4.0	4	5.5		38	32	31	30	29	26	24	21	18	6
6SR45 04-5.5	5.5	7.5		50	43	42	40	38	34	32	28	24	8
6SR45 05-7.5	7.5	10		63	54	53	50	48	43	40	35	30	9
6SR45 06-9.2	9.2	12.5		75	65	63	60	57	51	48	42	36	10
6SR45 08-11	11	15		100	87	84	80	76	68	64	56	48	13
6SR45 09-13	13	17.5		113	98	95	90	86	77	72	63	54	15
6SR45 10-15	15	20		125	108	105	100	95	85	80	70	60	17
6SR45 12-18.5	18.5	25		150	130	126	120	114	102	96	84	72	20
6SR45 14-22	22	30		175	152	147	140	133	119	112	98	84	23

MODEL	P2		DELIVERY n=2850
MODEL	KW	HP	Q l/min m³/h	0	167	333	500	667	833	1000	1167	1333
3~ 380V/415V	KW	HP	Q l/min m³/h	0	10	20	30	40	50	60	70	80
6SR60 02-4	4	5.5	H(m)	26	25	24	21	19	16	14	11	8
6SR60 03-5.5	5.5	7.5		39	38	36	31	28	24	21	17	12
6SR60 04-9.2	9.2	12.5		52	50	47	42	37	32	28	22	16
6SR60 05-11	11	15		66	63	59	52	46	40	35	28	20
6SR60 06-13	13	17.5		79	76	71	62	56	48	41	34	24
6SRJ60 07-15	15	20		92	88	83	73	65	57	48	39	28
6SR60 08-18.5	18.5	25		105	101	95	83	74	65	55	45	32
6SR60 10-22	22	30		131	126	119	104	93	81	69	56	40

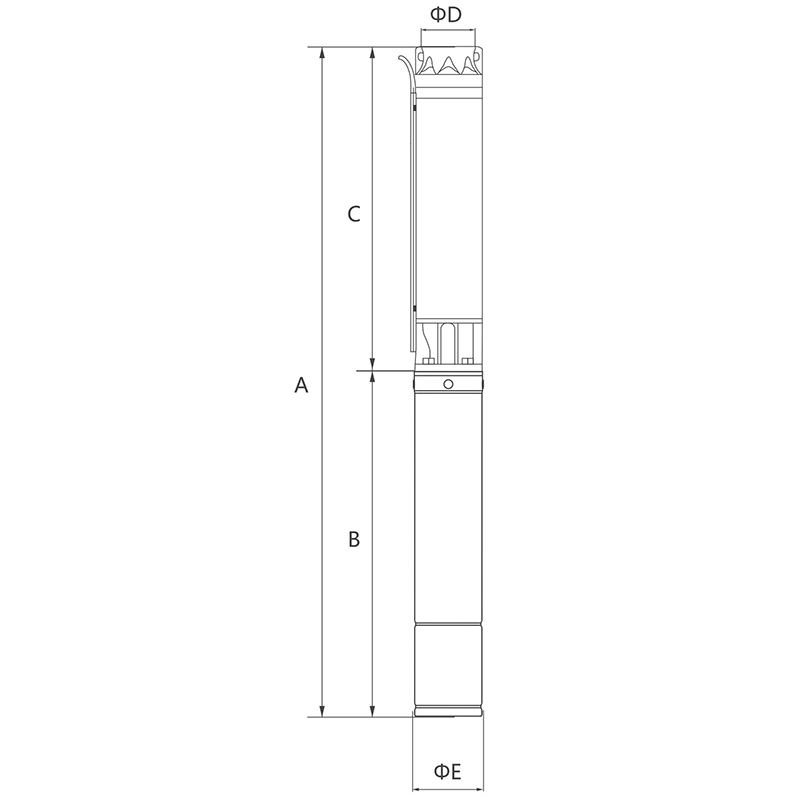

OVERALL DIMENSIONS SIZE PARATEMER TABLE

MODEL	A	B	C	D	E
6SR18 04-3.0	1070	481	589	3"	Φ145
6SR18 06-4.0	1179	501	678	3"	Φ145
6SR18 08-5.5	1307	541	766	3"	Φ145
6SR18 11-7.5	1486	586	900	3"	Φ145
6SR18 13-9.2	1624	636	988	3"	Φ145
6SR18 15-11	1778	701	1077	3"	Φ145
6SR18 18-13	1961	751	1210	3"	Φ145
6SR18 21-15	2164	821	1343	3"	Φ145
6SR18 25-18.5	2357	836	1521	3"	Φ145
6SR18 30-22	2734	991	1743	3"	Φ145
6SR30 03-3.0	1052	481	571	3"	Φ145
6SR30 04-4.0	1126	501	625	3"	Φ145
6SR30 06-5.5	1273	541	732	3"	Φ145
6SR30 08-7.5	1424	586	838	3"	Φ145
6SR30 09-9.2	1528	636	892	3"	Φ145
6SR30 11-11	1700	701	999	3"	Φ145
6SR30 13-13	1856	751	1105	3"	Φ145
6SR30 15-15	2033	821	1212	3"	Φ145
6SR30 18-18.5	2208	836	1372	3"	Φ145
6SR30 22-22	2577	991	1586	3"	Φ145
6SR45 02-3.0	993	481	512	3"	Φ145
6SR45 03-4.0	1125	501	624	3"	Φ145
6SR45 04-5.5	1277	541	736	3"	Φ145
6SR45 05-7.5	1434	586	848	3"	Φ145
6SR45 06-9.2	1596	636	960	3"	Φ145
6SR45 08-11	1885	701	1184	3"	Φ145
6SR45 09-13	2047	751	1296	3"	Φ145
6SR45 10-15	2229	821	1408	3"	Φ145
6SR45 12-18.5	2468	836	1632	3"	Φ145
6SR45 14-22	2847	991	1856	3"	Φ145
6SR60 02-4.0	1118	501	617	3"	Φ145
6SR60 03-5.5	1260	541	719	3"	Φ145
6SR60 04-9.2	1458	636	822	3"	Φ145
6SR60 05-11	1626	701	925	3"	Φ145
6SR60 06-13	1778	751	1027	3"	Φ145
6SRJ60 07-15	1951	821	1130	3"	Φ145
6SR60 08-18.5	2069	836	1233	3"	Φ145
6SR60 10-22	2429	991	1438	3"	Φ145
