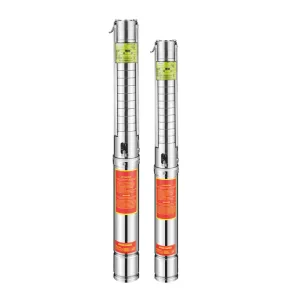

IDENTIFICATION CODE
4SP 4SPM206-0.37
4 : Well diameter: 100mm(4")
SP : QJ Series submersible pump
M : Single phase motor (Three phase without M)
2 : Capacity (m³/h)
06 : Stage
0.37 : Motor power (KW)
APPLICATIONS
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
OPERATING CONDITIONS
Maximum fluid temperature up to +35 °C.
Maximum sand content: 0.25%.
Maximum immersion: 100m.
Minimum well diameter: 4"
MOTOR AND PUMP
Rewindable motor or full obturated screen motor
Three-phase: 380V-415V/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
OPTIONS ON REQUEST
Special mechanical seal
Other voltages or frequency 60 Hz

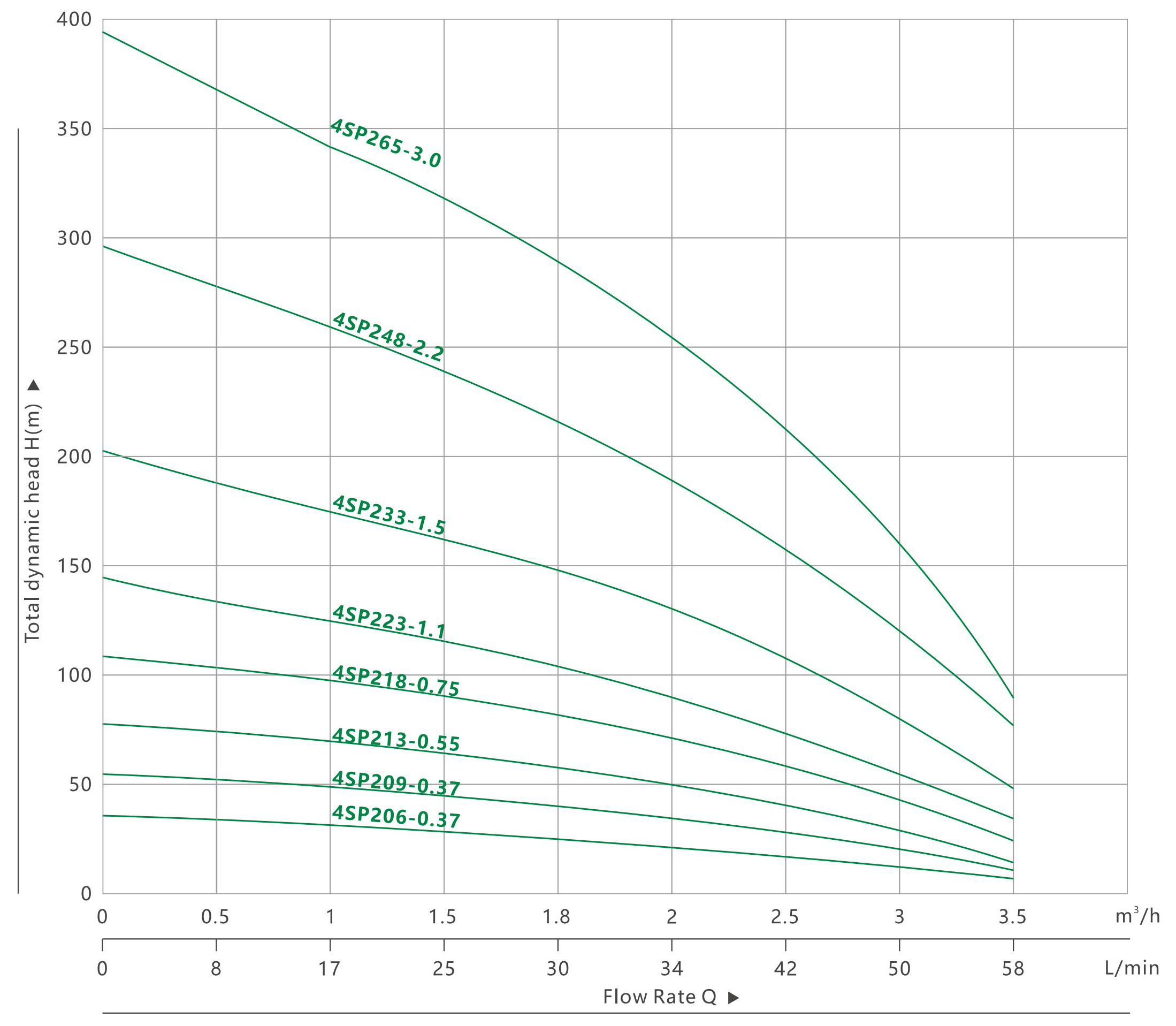

PERFORMANCE DATA 50 HZ
MODEL | P2 | Q l/min m³/h | DELIVERY n=2850 | ||||||||||
1~ 220V/240V | 3~ 380V/415V | KW | HP | 0 | 8 | 17 | 25 | 30 | 34 | 42 | 50 | 58 | |
0 | 0.5 | 1 | 1.5 | 1.8 | 2 | 2.5 | 3 | 3.5 | |||||
4SPM206-0.37 | 4SP206-0.37 | 0.37 | 0.5 | H(m) | 37 | 34 | 32 | 30 | 28 | 24 | 20 | 13 | 9 |
4SPM209-0.37 | 4SP209-0.37 | 0.37 | 0.5 | 55 | 51 | 48 | 45 | 41 | 36 | 30 | 19 | 13 | |
4SPM213-0.55 | 4SP213-0.55 | 0.55 | 0.75 | 79 | 74 | 69 | 65 | 60 | 52 | 43 | 27 | 19 | |
4SPM218-0.75 | 4SP218-0.75 | 0.75 | 1 | 110 | 102 | 95 | 90 | 83 | 72 | 59 | 38 | 26 | |
4SPM223-1.1 | 4SP223-1.1 | 1.1 | 1.5 | 140 | 130 | 122 | 115 | 106 | 92 | 76 | 48 | 33 | |
4SPM233-1.5 | 4SP233-1.5 | 1.5 | 2 | 201 | 187 | 175 | 165 | 152 | 132 | 109 | 69 | 48 | |
4SPM248-2.2 | 4SP248-2.2 | 2.2 | 3 | 293 | 272 | 254 | 240 | 221 | 192 | 158 | 101 | 70 | |
4SPM265-3.0 | 4SP265-3.0 | 3 | 4 | 397 | 369 | 345 | 325 | 299 | 260 | 215 | 137 | 95 | |

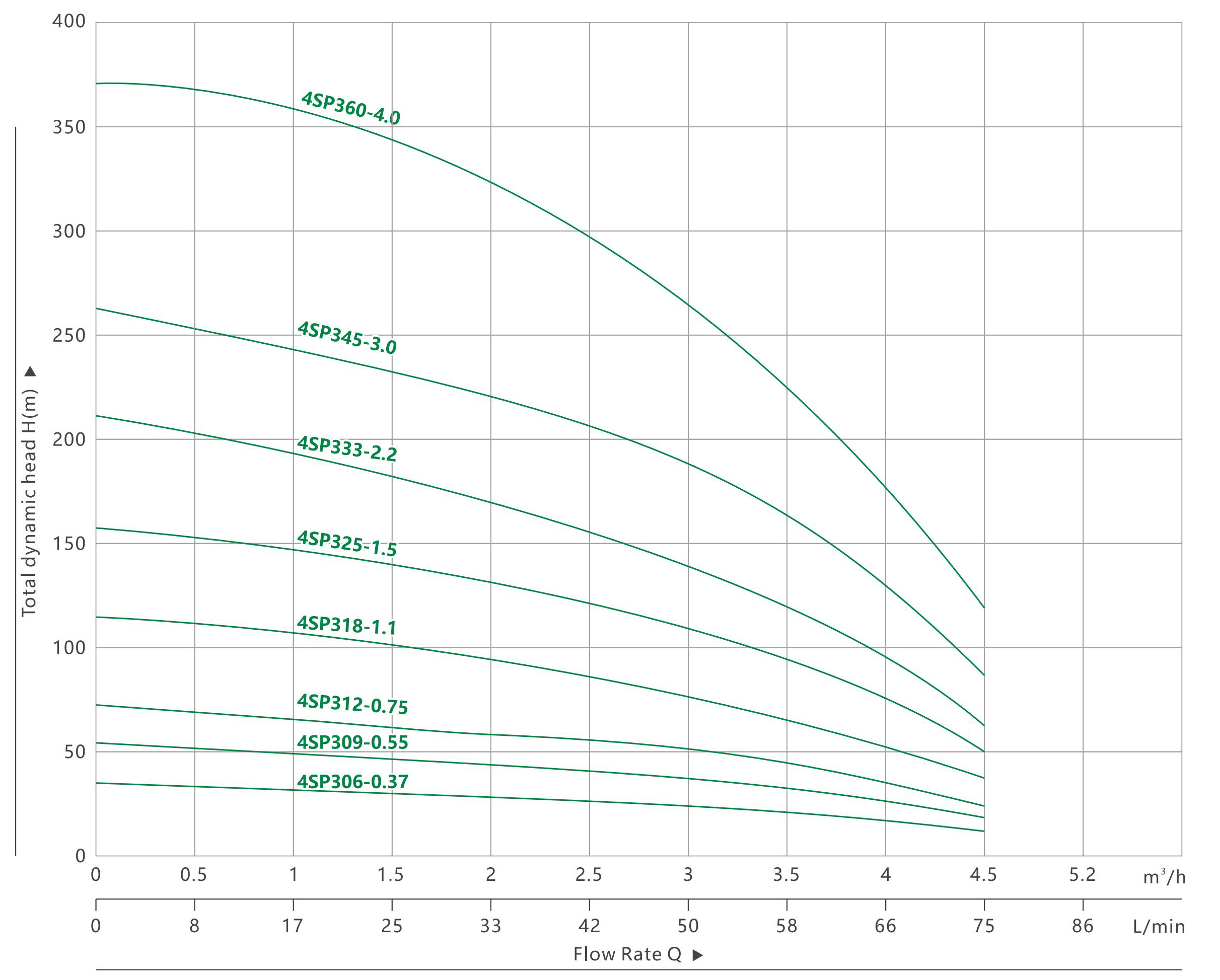

PERFORMANCE DATA 50 HZ
MODEL | P2 | DELIVERY n=2850 | ||||||||||||
1~220V/240V | 3~380V/415V | KW | HP | Q l/minm³/h | 0 | 8 | 17 | 25 | 33 | 42 | 50 | 58 | 66 | 75 |
0 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | |||||
4SPM306-0.37 | 4SP306-0.37 | 0.37 | 0.5 | H(m) | 37 | 34 | 33 | 32 | 30 | 28 | 26 | 24 | 18 | 12 |
4SPM309-0.55 | 4SP309-0.55 | 0.55 | 0.75 | 56 | 51 | 50 | 48 | 45 | 42 | 40 | 36 | 27 | 18 | |
4SPM312-0.75 | 4SP312-0.75 | 0.75 | 1 | 74 | 68 | 66 | 64 | 60 | 56 | 53 | 48 | 36 | 24 | |
4SPM318-1.1 | 4SP318-1.1 | 1.1 | 1.5 | 112 | 103 | 99 | 95 | 90 | 85 | 79 | 72 | 54 | 36 | |
4SPM325-1.5 | 4SP325-1.5 | 1.5 | 2 | 155 | 143 | 138 | 133 | 125 | 118 | 110 | 100 | 75 | 50 | |
4SPM333-2.2 | 4SP333-2.2 | 2.2 | 3 | 205 | 188 | 182 | 175 | 165 | 155 | 145 | 132 | 99 | 66 | |
/ | 4SP345-3.0 | 3 | 4 | 279 | 257 | 248 | 239 | 225 | 212 | 198 | 180 | 135 | 90 | |
/ | 4SP360-4.0 | 4 | 5.5 | 372 | 342 | 330 | 318 | 300 | 282 | 264 | 240 | 180 | 120 | |

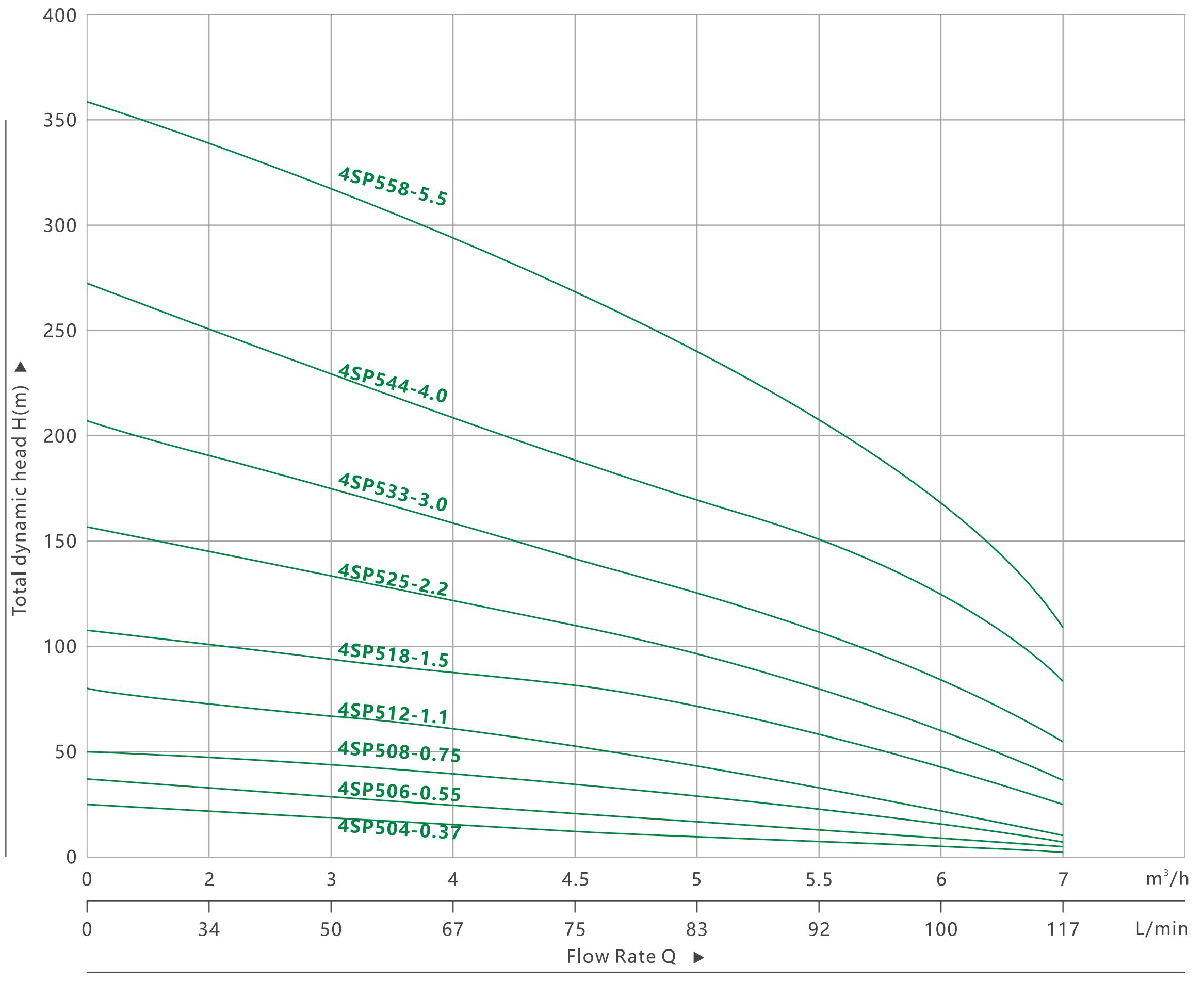

PERFORMANCE DATA 50 HZ
MODEL | P2 | DELIVERY n=2850 | |||||||||||
1~220V/240V | 3~380V/415V | KW | HP | Q l/minm³/h | 0 | 34 | 50 | 67 | 75 | 83 | 92 | 100 | 117 |
0 | 2 | 3 | 4 | 4.5 | 5 | 5.5 | 6 | 7 | |||||
4SPM504-0.37 | 4SP504-0.37 | 0.37 | 0.5 | H(m) | 25 | 23 | 21 | 19 | 17 | 16 | 14 | 11 | 7 |
4SPM506-0.55 | 4SP506-0.55 | 0.55 | 0.75 | 37 | 34 | 31 | 29 | 25 | 24 | 21 | 17 | 11 | |
4SPM508-0.75 | 4SP508-0.75 | 0.75 | 1 | 50 | 46 | 42 | 38 | 34 | 32 | 28 | 22 | 14 | |
4SPM512-1.1 | 4SP512-1.1 | 1.1 | 1.5 | 74 | 68 | 62 | 58 | 50 | 48 | 42 | 34 | 22 | |
4SPM518-1.5 | 4SP518-1.5 | 1.5 | 2 | 112 | 103 | 94 | 86 | 76 | 72 | 63 | 50 | 32 | |
4SPM525-2.2 | 4SP525-2.2 | 2.2 | 3 | 155 | 143 | 130 | 120 | 105 | 100 | 88 | 70 | 45 | |
/ | 4SP533-3.0 | 3 | 4 | 205 | 188 | 172 | 158 | 139 | 132 | 116 | 92 | 59 | |
/ | 4SP544-4.0 | 4 | 5.5 | 273 | 251 | 229 | 211 | 185 | 176 | 154 | 123 | 79 | |
/ | 4SP558-5.5 | 5.5 | 7.5 | 360 | 331 | 302 | 278 | 244 | 232 | 203 | 162 | 104 | |

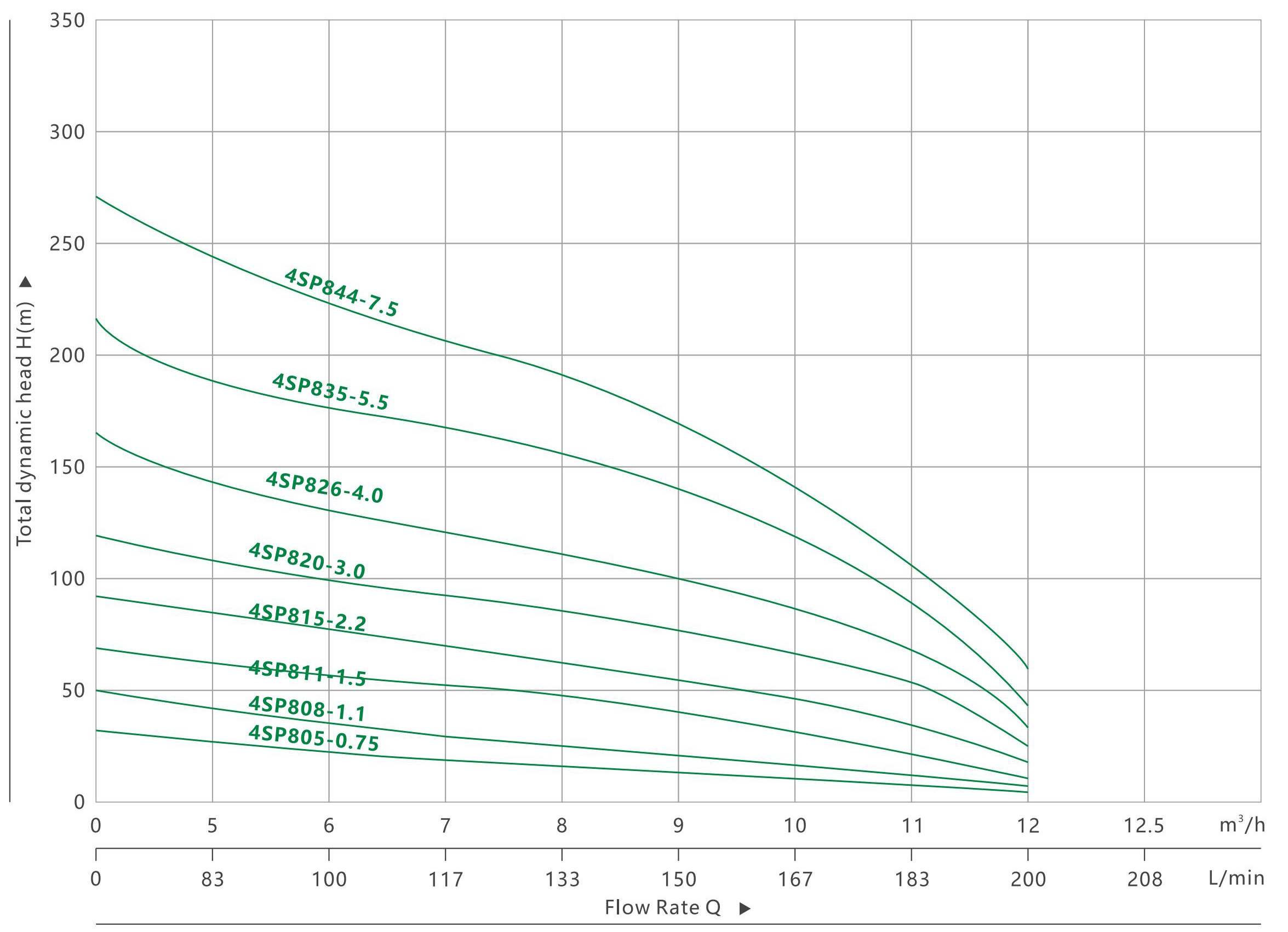

PERFORMANCE DATA 50 HZ
MODEL | P2 | DELIVERY n=2850 l/min | |||||||||||
1~ 220V/240V | 3~ 380V/415V | KW | HP | Q m³/h | 0 | 83 | 100 | 117 | 133 | 150 | 167 | 183 | 200 |
0 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |||||
4SPM805-0.75 | 4SP805-0.75 | 0.75 | 1 | H(m)
| 31 | 27 | 25 | 24 | 22 | 19 | 16 | 13 | 6 |
4SPM808-1.1 | 4SP808-1.1 | 1.1 | 1.5 | 50 | 42 | 40 | 38 | 35 | 30 | 25 | 21 | 10 | |
4SPM811-1.5 | 4SP811-1.5 | 1.5 | 2 | 68 | 58 | 55 | 52 | 48 | 42 | 35 | 29 | 14 | |
4SPM815-2.2 | 4SP815-2.2 | 2.2 | 3 | 93 | 80 | 75 | 71 | 65 | 57 | 47 | 39 | 19 | |
/ | 4SP820-3.0 | 2.2 | 3 | 124 | 106 | 100 | 94 | 87 | 76 | 63 | 52 | 25 | |
/ | 4SP826-4.0 | 3 | 4 | 161 | 138 | 130 | 122 | 113 | 99 | 82 | 68 | 33 | |
/ | 4SP835-5.5 | 4 | 5.5 | 217 | 186 | 175 | 165 | 152 | 133 | 111 | 91 | 44 | |
/ | 4SP844-7.5 | 4 | 5.5 | 273 | 233 | 220 | 207 | 191 | 167 | 139 | 114 | 55 | |

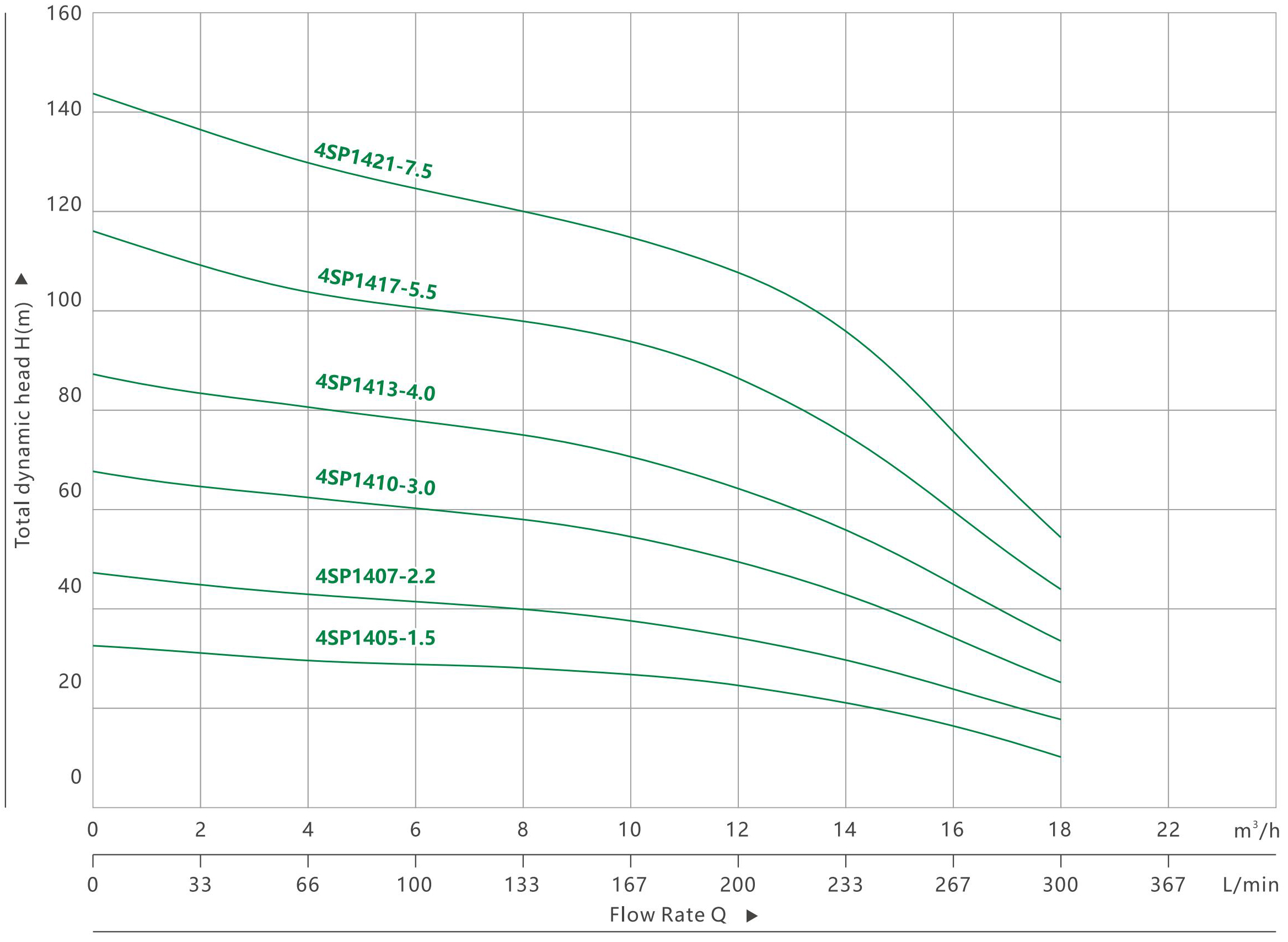

PERFORMANCE DATA 50 HZ
MODEL | P2 | DELIVERY n=2850 l/min | ||||||||||||
1~ 220V/240V | 3~ 380V/415V | KW | HP | Q m³/h | 0 | 33 | 66 | 100 | 133 | 167 | 200 | 233 | 267 | 300 |
0 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | |||||
4SPM1405-1.5 | 4SP1405-1.5 | 1.5 | 2 | H(m)
| 34 | 33 | 31 | 30 | 29 | 28 | 26 | 22 | 18 | 13 |
4SPM1407-2.2 | 4SP1407-2.2 | 2.2 | 3 | 48 | 46 | 43 | 42 | 40 | 39 | 36 | 30 | 25 | 18 | |
/ | 4SP1410-3.0 | 3 | 4 | 68 | 65 | 62 | 60 | 58 | 55 | 51 | 43 | 35 | 26 | |
/ | 4SP1413-4.0 | 4 | 5.5 | 88 | 85 | 81 | 78 | 75 | 72 | 66 | 56 | 46 | 34 | |
/ | 4SP1417-5.5 | 5.5 | 7.5 | 116 | 111 | 105 | 102 | 98 | 94 | 87 | 73 | 60 | 44 | |
/ | 4SP1421-7.5 | 7.5 | 10 | 143 | 137 | 130 | 126 | 121 | 116 | 107 | 90 | 74 | 55 | |

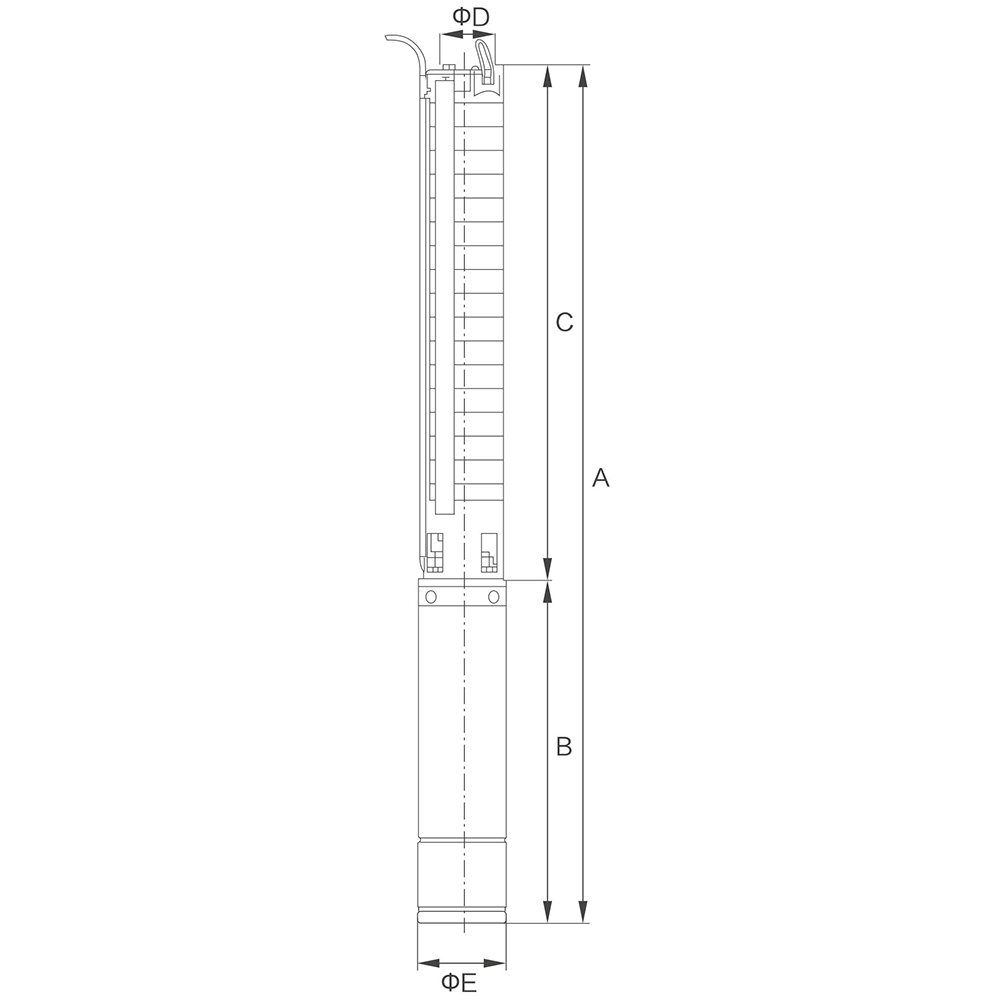

OVERALL DIMENSIONS
SIZE PARATEMER TABLE | |||||
MODEL | A | B | C | D | E |
4SPM206-0.37 | 550 | 272 | 278 | 1¼" - 1½" | Φ95 |
4SPM209-0.37 | 628 | 287 | 341 | 1¼" - 1½" | Φ95 |
4SPM213-0.55 | 732 | 307 | 425 | 1¼" - 1½" | Φ95 |
4SPM218-0.75 | 857 | 322 | 535 | 1¼" - 1½" | Φ95 |
4SPM223-1.1 | 1027 | 392 | 635 | 1¼" - 1½" | Φ95 |
4SPM233-1.5 | 1287 | 442 | 845 | 1¼" - 1½" | Φ95 |
4SPM248-2.2 | 1750 | 590 | 1160 | 1¼" - 1½" | Φ95 |
4SP248-2.2 | 1705 | 545 | 1160 | 1¼" - 1½" | Φ95 |
4SP265-3.0 | 2122 | 605 | 1517 | 1¼" - 1½" | Φ95 |
4SPM306-0.37 | 565 | 287 | 278 | 1¼" - 1½" | Φ95 |
4SPM309-0.55 | 648 | 307 | 341 | 1¼" - 1½" | Φ95 |
4SPM312-0.75 | 726 | 322 | 404 | 1¼" - 1½" | Φ95 |
4SPM318-1.1 | 927 | 392 | 535 | 1¼" - 1½" | Φ95 |
4SPM325-1.5 | 1119 | 442 | 677 | 1¼" - 1½" | Φ95 |
4SPM333-2.2 | 1435 | 590 | 845 | 1¼" - 1½" | Φ95 |
4SP333-2.2 | 1390 | 545 | 845 | 1¼" - 1½" | Φ95 |
4SP345-3.0 | 1702 | 605 | 1097 | 1¼" - 1½" | Φ95 |
4SP360-4.0 | 2127 | 715 | 1412 | 1¼" - 1½" | Φ95 |
4SPM504-0.37 | 535 | 287 | 248 | 1¼" - 1½" | Φ95 |
4SPM506-0.55 | 603 | 307 | 296 | 1¼" - 1½" | Φ95 |
4SPM508-0.75 | 666 | 322 | 344 | 1¼" - 1½" | Φ95 |
4SPM512-1.1 | 832 | 392 | 440 | 1¼" - 1½" | Φ95 |
4SPM518-1.5 | 1026 | 442 | 584 | 1¼" - 1½" | Φ95 |
4SPM525-2.2 | 1342 | 590 | 752 | 1¼" - 1½" | Φ95 |
4SP525-2.2 | 1297 | 545 | 752 | 1¼" - 1½" | Φ95 |
4SP533-3.0 | 1549 | 605 | 944 | 1¼" - 1½" | Φ95 |
4SP544-4.0 | 1923 | 715 | 1208 | 1¼" - 1½" | Φ95 |
4SP558-5.5 | 2349 | 805 | 1544 | 1¼" - 1½" | Φ95 |

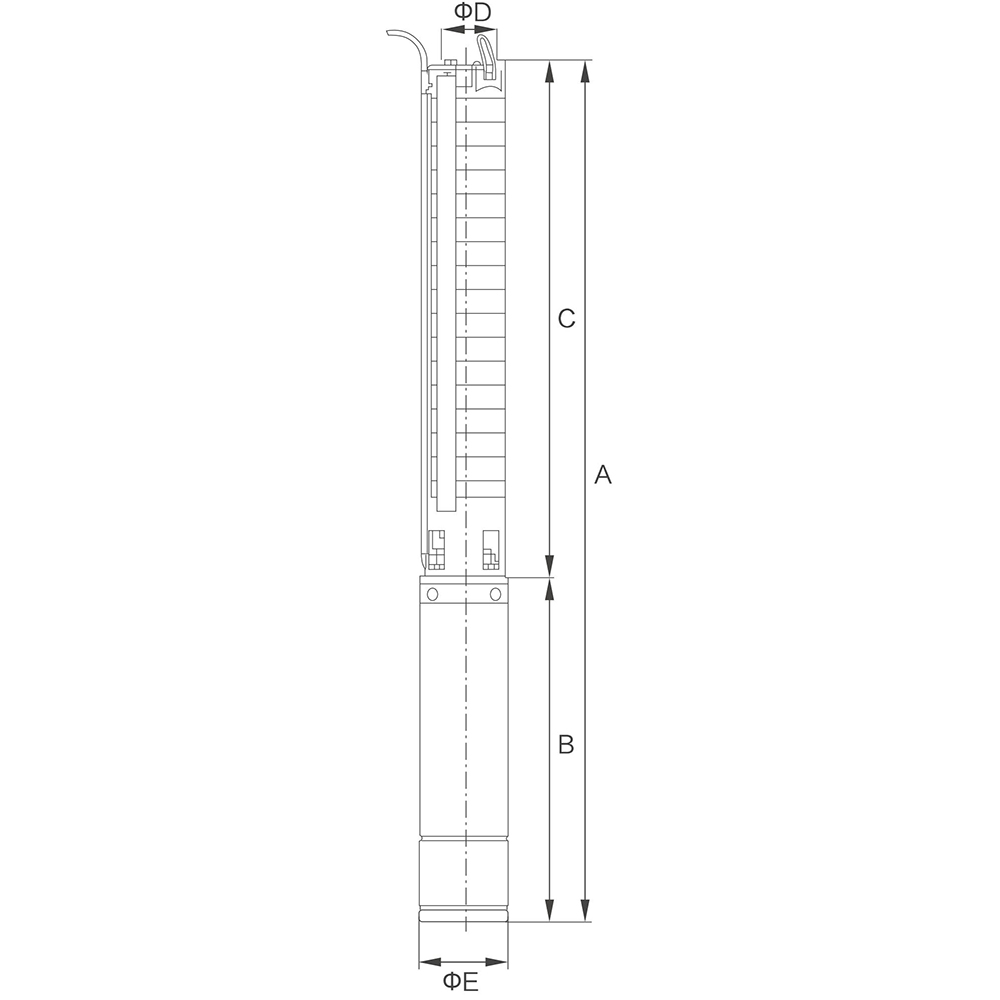

OVERALL DIMENSIONS
SIZE PARATEMER TABLE | |||||
MODEL | A | B | C | D | E |
4SPM805-0.75 | 657 | 322 | 335 | 1½" - 2" | Φ95 |
4SPM808-1.1 | 811 | 392 | 419 | 1½" - 2" | Φ95 |
4SPM811-1.5 | 945 | 442 | 503 | 1½" - 2" | Φ95 |
4SPM815-2.2 | 1205 | 590 | 615 | 1½" - 2" | Φ95 |
4SP815-2.2 | 1160 | 545 | 615 | 1½" - 2" | Φ95 |
4SP820-3.0 | 1360 | 605 | 755 | 1½" - 2" | Φ95 |
4SP826-4.0 | 1638 | 715 | 923 | 1½" - 2" | Φ95 |
4SP835-5.5 | 1980 | 805 | 1175 | 1½" - 2" | Φ95 |
4SP844-7.5 | 2282 | 855 | 1427 | 1½" - 2" | Φ95 |
4SPM1405-1.5 | 860 | 442 | 418 | 2" | Φ95 |
4SPM1407-2.2 | 1092 | 590 | 502 | 2" | Φ95 |
4SP1407-2.2 | 1047 | 545 | 502 | 2" | Φ95 |
4SP1410-3.0 | 1233 | 605 | 628 | 2" | Φ95 |
4SP1413-4.0 | 1469 | 715 | 754 | 2" | Φ95 |
4SP1417-5.5 | 1727 | 805 | 922 | 2" | Φ95 |
4SP1421-7.5 | 1945 | 855 | 1090 | 2" | Φ95 |
