IDENTIFICATION CODE
6SP17 02-1.1
6: Well diameter: 145mm(6")
SP: Stainless steel
M: Single motor(Three phase without M)
17: Capacity(m³/h)
02: Stage
1.1: Motor power(KW)
APPLICATIONS
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
OPERATING CONDITIONS
Maximum fluid temperature up to +35 ℃.
Maximum sand content: 0.25%.
Maximum immersion: 100m.
Minimum well diameter: 6"

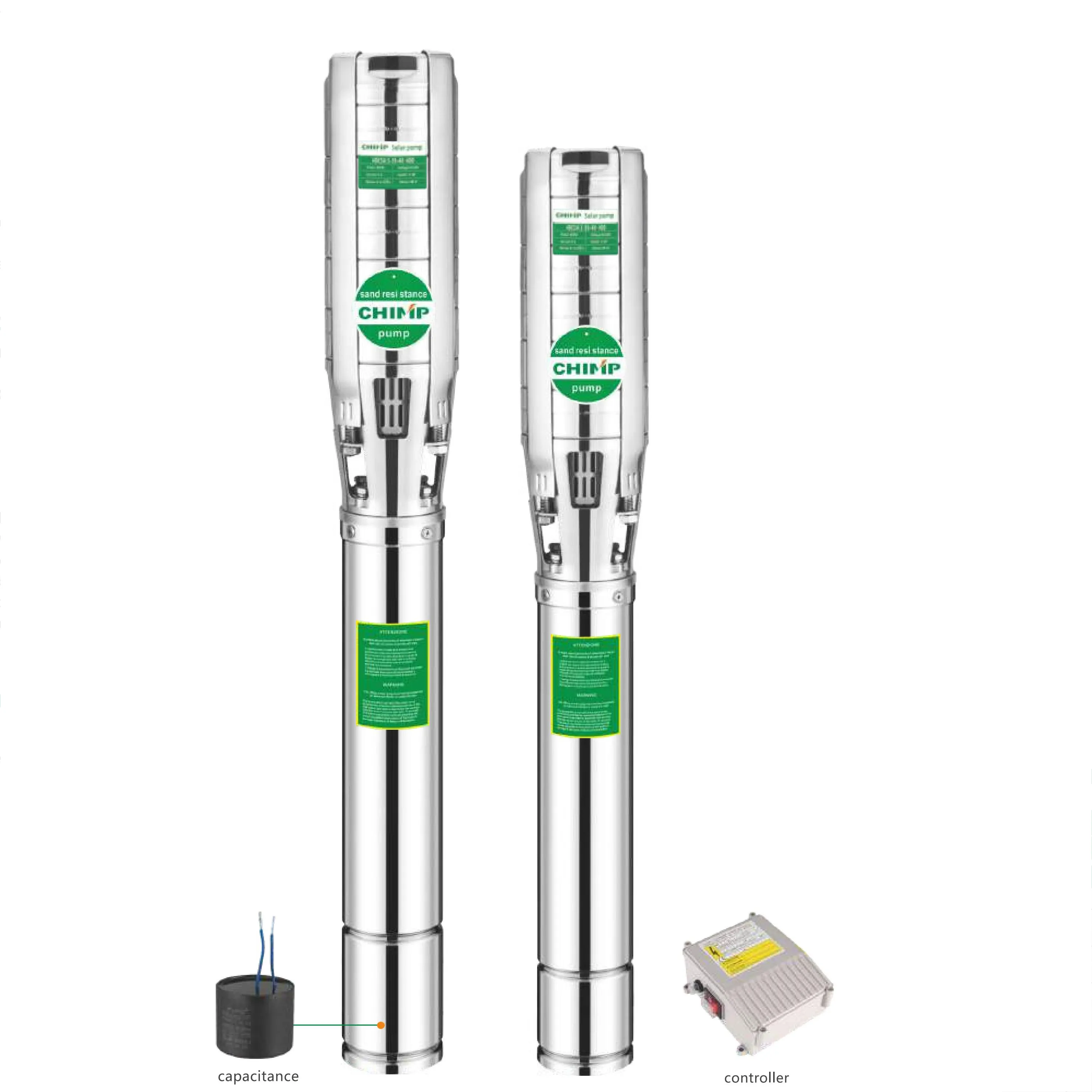

MOTOR AND PUMP
Rewindable motor or full obturated screen motor
Three-phase: 380V-415V/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
OPTIONS ON REQUEST
Special mechanical seal
Other voltages or frequency 60 Hz

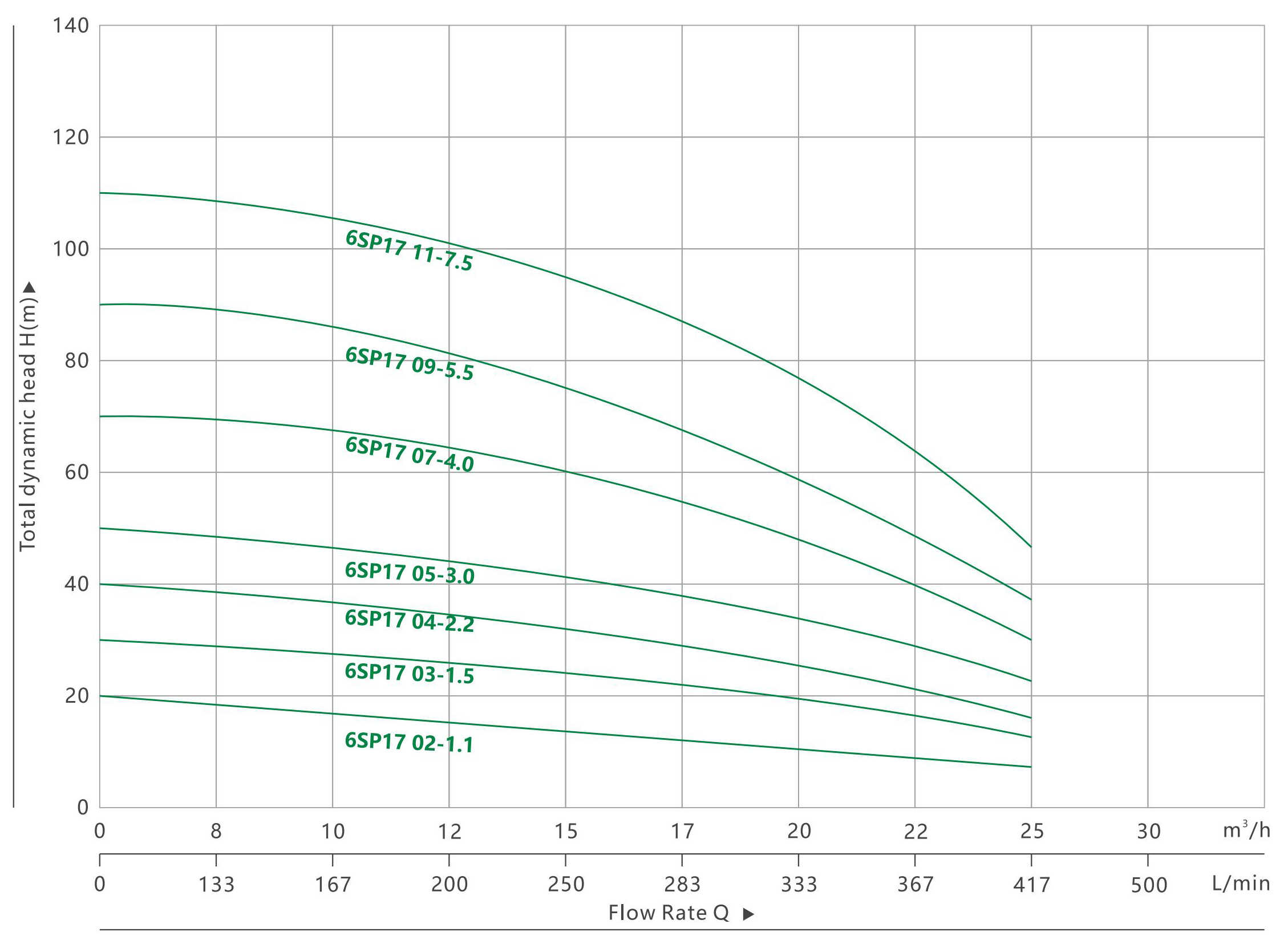

PERFORMANCE DATA 50 HZ
MODEL | P2 | Q | DELIVERY n=2850 l/min | ||||||||||
1~ 220V/240V | 3~ 380V/415V | KW | HP | 0 | 133 | 167 | 200 | 250 | 283 | 333 | 367 | 417 | |
0 | 8 | 10 | 12 | 15 | 17 | 20 | 22 | 25 | |||||
6SPM17 02-1.1 | 6SP17 02-1.1 | 1.1 | 1.5 | H(m) | 20 | 19 | 19 | 18 | 17 | 15 | 13 | 11 | 9 |
6SPM17 03-1.5 | 6SP17 03-1.5 | 1.5 | 2.0 | 30 | 29 | 29 | 28 | 26 | 23 | 19 | 17 | 13 | |
6SPM17 04-2.2 | 6SP17 04-2.2 | 2.2 | 3.0 | 40 | 39 | 38 | 37 | 34 | 30 | 26 | 22 | 17 | |
/ | 6SP17 05-3.0 | 3.0 | 4.0 | 50 | 49 | 48 | 46 | 43 | 38 | 32 | 28 | 22 | |
/ | 6SP17 07-4.0 | 4.0 | 5.5 | 70 | 68 | 67 | 64 | 60 | 53 | 45 | 39 | 30 | |
/ | 6SP17 09-5.5 | 5.5 | 7.5 | 90 | 87 | 86 | 83 | 77 | 68 | 58 | 50 | 39 | |
/ | 6SP17 11-7.5 | 7.5 | 10 | 110 | 107 | 105 | 101 | 94 | 83 | 70 | 61 | 47 | |

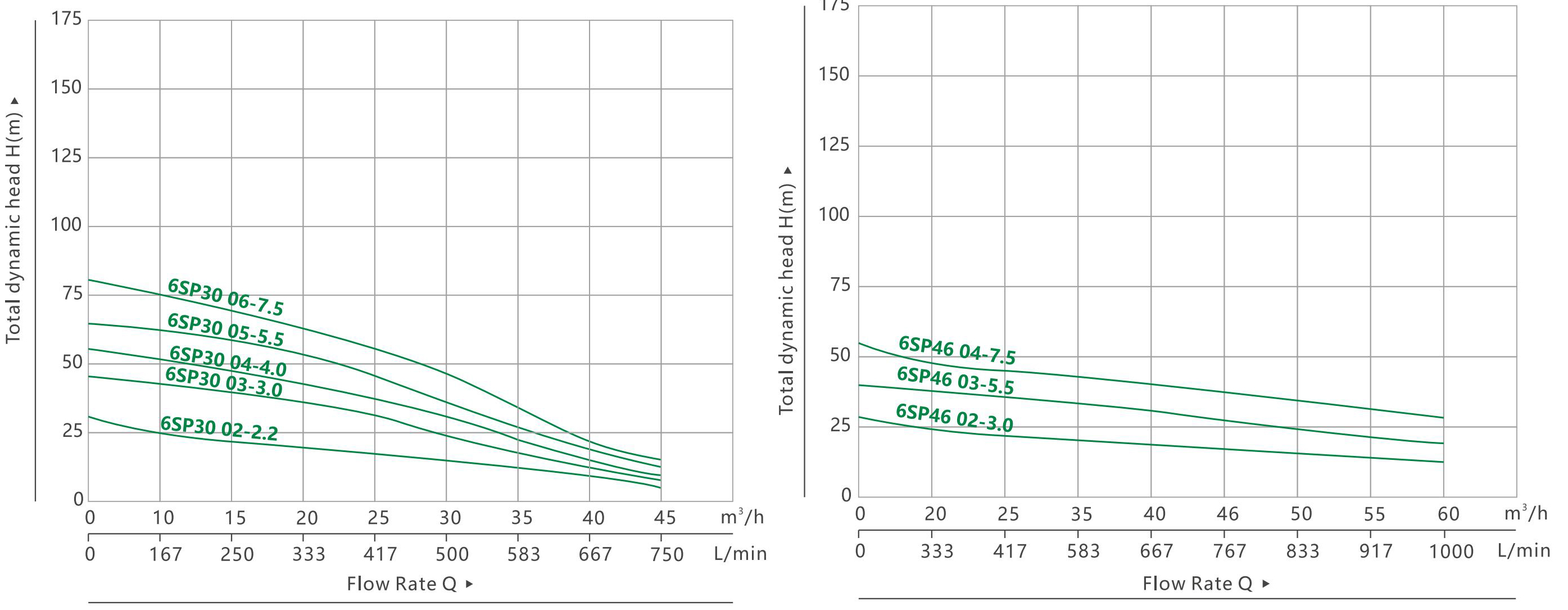

PERFORMANCE DATA 50 HZ
MODEL | P2 | DELIVERY n=2850 l/min | ||||||||||
KW | HP | Q | 0 | 167 | 250 | 333 | 417 | 500 | 583 | 667 | 750 | |
0 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | ||||
6SP30 02-2.2 | 2.2 | 3 | H(m) | 27 | 25 | 23 | 21 | 19 | 15 | 12 | 7 | 5 |
6SP30 03-3.0 | 3 | 4 | 40 | 38 | 35 | 32 | 28 | 23 | 18 | 11 | 8 | |
6SP30 04-4.0 | 4 | 5.5 | 53 | 50 | 46 | 42 | 38 | 31 | 24 | 14 | 10 | |
6SP30 05-5.5 | 5.5 | 7.5 | 66 | 63 | 58 | 53 | 48 | 39 | 30 | 18 | 13 | |
6SP30 06-7.5 | 7.5 | 10 | 79 | 75 | 69 | 64 | 56 | 47 | 36 | 22 | 16 | |
MODEL | P2 | DELIVERY n=2850 l/min | ||||||||||
KW | HP | Q | 0 | 333 | 417 | 583 | 667 | 767 | 833 | 917 | 1000 | |
0 | 20 | 25 | 35 | 40 | 46 | 50 | 55 | 60 | ||||
6SP46 02-3.0 | 3 | 4 | H(m) | 27 | 24 | 22 | 20 | 19 | 18 | 16 | 15 | 14 |
6SP46 03-5.5 | 5.5 | 7.5 | 40 | 36 | 33 | 30 | 29 | 26 | 24 | 23 | 21 | |
6SP46 04-7.5 | 7.5 | 10 | 53 | 48 | 44 | 40 | 39 | 35 | 32 | 31 | 28 | |
PERFORMANCE DATA 50 HZ

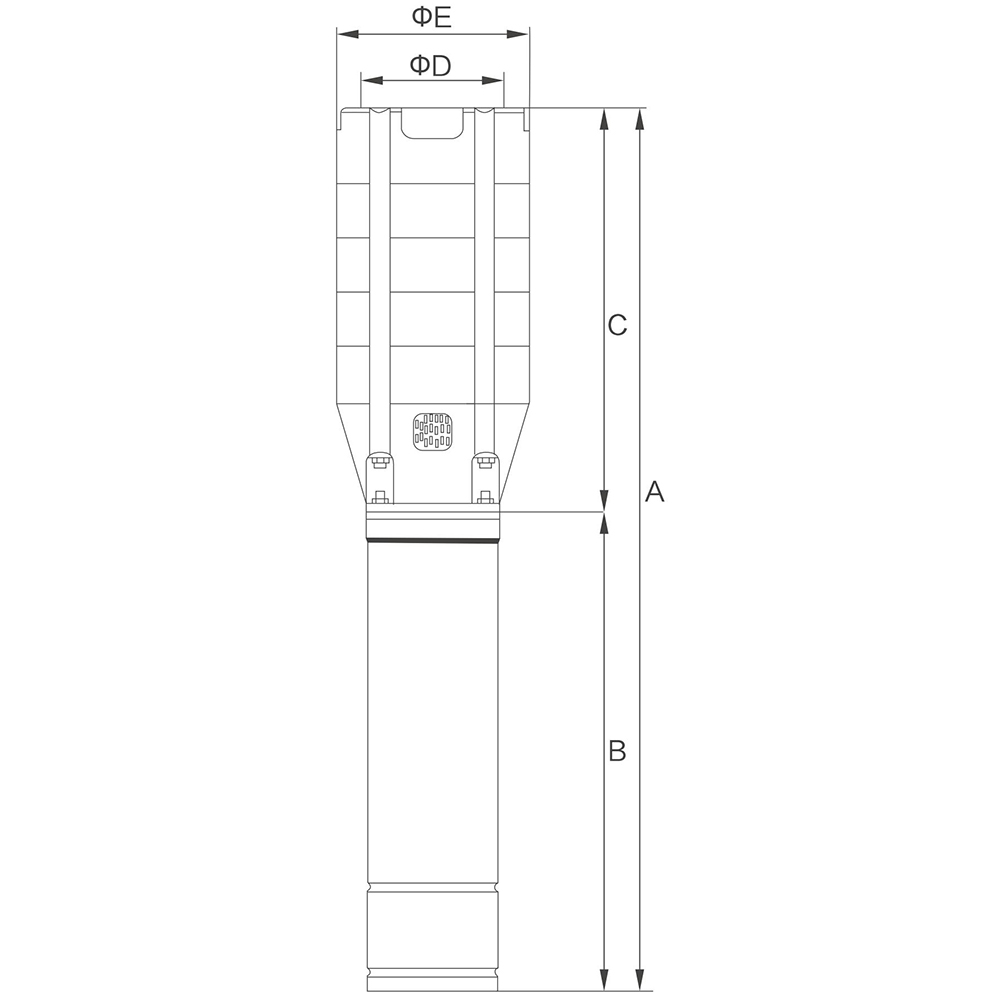

MODEL | A | B | C | D | E |
6SPM17 02-1.1 | 718 | 392 | 326 | 2½"-3" | Φ145 |
6SPM17 03-1.5 | 812 | 442 | 370 | 2½"-3" | Φ145 |
6SPM17 04-2.2 | 1006 | 590 | 416 | 2½"-3" | Φ145 |
6SP17 04-2.2 | 961 | 545 | 416 | 2½"-3" | Φ145 |
6SP17 05-3.0 | 1067 | 605 | 462 | 2½"-3" | Φ145 |
6SP17 07-4.0 | 1270 | 715 | 555 | 2½"-3" | Φ145 |
6SP17 09-5.5 | 1450 | 805 | 645 | 2½"-3" | Φ145 |
6SP17 11-7.5 | 1590 | 855 | 735 | 2½"-3" | Φ145 |
6SPM30 02-2.2 | 1078 | 590 | 488 | 3" | Φ145 |
6SP30 03-3.0 | 1205 | 605 | 600 | 3" | Φ145 |
6SP30 04-4.0 | 1425 | 715 | 710 | 3" | Φ145 |
6SP30 05-5.5 | 1627 | 805 | 822 | 3" | Φ145 |
6SP30 06-7.5 | 1789 | 855 | 934 | 3" | Φ145 |
6SP46 02-3.0 | 1093 | 605 | 488 | 3"-4" | Φ145 |
6SP46 03-5.5 | 1315 | 715 | 600 | 3"-4" | Φ145 |
6SP46 04-7.5 | 1515 | 805 | 710 | 3"-4" | Φ145 |
