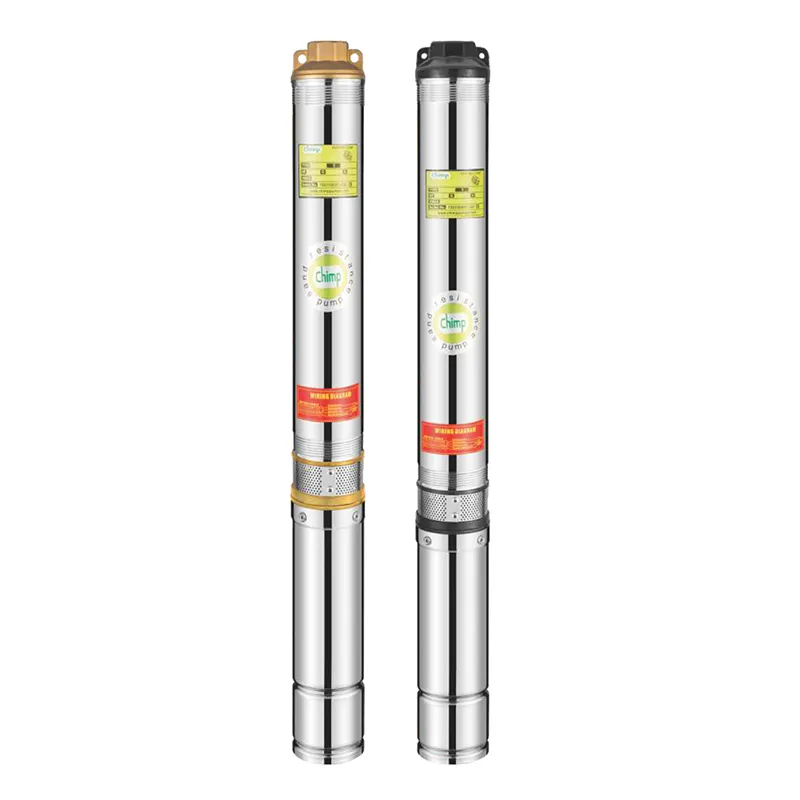

IDENTIFICATION CODE
2SD
2: Well diameter: 50mm(2")
SD: SD Series submersible pump
M: Single phase motor(Three phase without M)
I: Capacity(m³/h)
JG: Stage
APPLICATIONS
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
OPERATING CONDITIONS
Maximum fluid temperature up to +35 °C.
Maximum sand content: 0.25%.
Maximum immersion: 100m.
Minimum well diameter: 2.5"
MOTOR AND PUMP
Rewindable motor or full obturated screen motor
Single-phase:110V-220V/60Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
OPTIONS ON REQUEST
Special mechanical seal
Other voltages or frequency 50 Hz

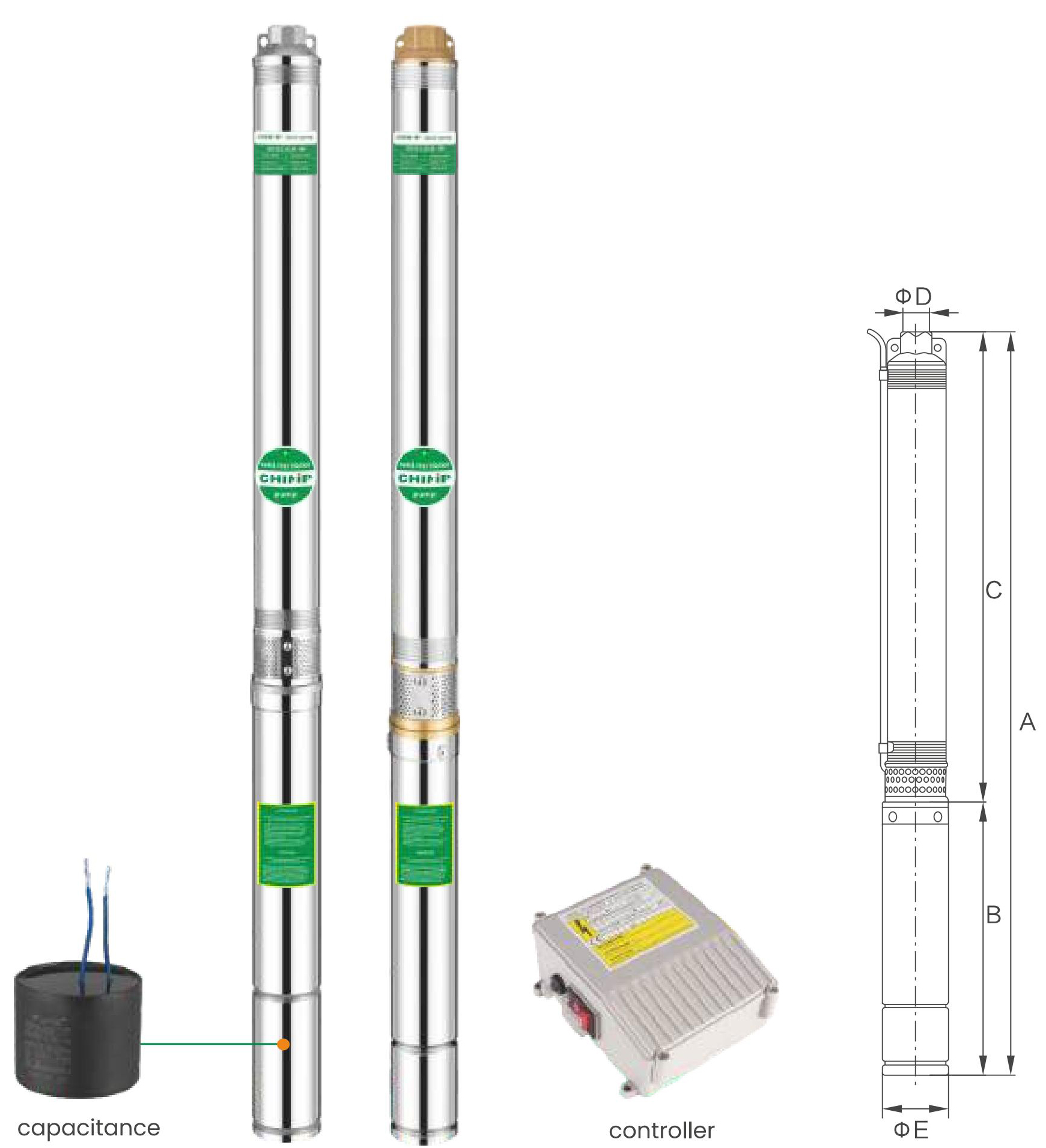

OVERALL DIMENSIONS
SIZE PARATEMER TABLE | |||||
MODEL | A | B | C | D | E |
2SDM0.7/19 | 1080 | 456 | 624 | 1/2"-3/4" | Φ50 |
2SDM0.7/23 | 1204 | 486 | 718 | 1/2"-3/4" | Φ50 |
2SDM0.7/27 | 1355 | 521 | 834 | 1/2"-3/4" | Φ50 |
2SDM0.7/31 | 1474 | 546 | 928 | 1/2"-3/4" | Φ50 |
2SDM1/16 | 1063 | 456 | 607 | 1/2"-3/4" | Φ50 |
2SDM1/20 | 1200 | 486 | 714 | 1/2"-3/4" | Φ50 |
2SDM1/24 | 1342 | 521 | 821 | 1/2"-3/4" | Φ50 |
2SDM1/27 | 1469 | 546 | 923 | 1/2"-3/4" | Φ50 |

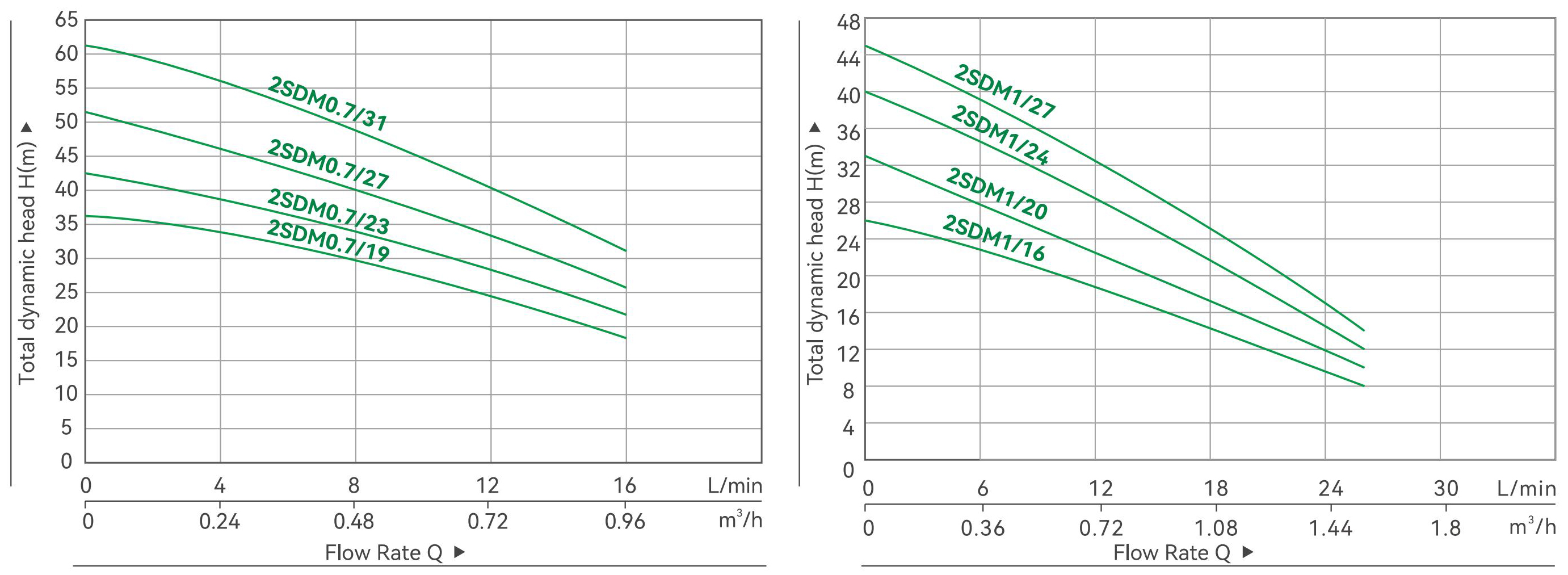

PERFORMANCE DATA 60 HZ
MODEL | P2 | DELIVERY n=3450 1/min | ||||||||||
1~110v/220v | KW | HP | Q l/min m³/h | 0 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
0 | 0.12 | 0.24 | 0.36 | 0.48 | 0.6 | 0.72 | 0.84 | 0.96 | ||||
2SDM0.7/19 | 0.18 | 0.25 | H(m) | 36 | 34 | 32 | 31 | 29 | 27 | 25 | 22 | 18 |
2SDM0.7/23 | 0.25 | 0.33 | 43 | 41 | 39 | 37 | 35 | 32 | 30 | 26 | 22 | |
2SDM0.7/27 | 0.37 | 0.5 | 51 | 49 | 46 | 44 | 41 | 38 | 35 | 31 | 26 | |
2SDM0.7/31 | 0.55 | 0.75 | 61 | 59 | 56 | 53 | 50 | 46 | 43 | 38 | 32 | |
MODEL | Power | Flow | ||||||||||
1~110v/220v | KW | HP | Q l/min m³/h | 0 | 3.3 | 6.6 | 10 | 13.3 | 16.6 | 20 | 23.3 | 26.6 |
0 | 0.2 | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.4 | 1.6 | ||||
2SDM1/16 | 0.18 | 0.25 | H(m) | 26 | 24 | 23 | 21 | 19 | 17 | 14 | 12 | 8 |
2SDM1/20 | 0.25 | 0.33 | 33 | 30 | 28 | 26 | 23 | 21 | 18 | 15 | 10 | |
2SDM1/24 | 0.37 | 0.5 | 40 | 36 | 34 | 31 | 28 | 25 | 22 | 18 | 12 | |
2SDM1/27 | 0.55 | 0.75 | 45 | 41 | 38 | 35 | 32 | 28 | 24 | 20 | 14 | |
