Automatic Pump Station Component
*Tank
Capacity: 19L/24L /50L
Membrane: Rubber/EPDM
*Pressure gauge
Scale: 0-6bar/0-10bar/0- 12bar
Casing: plastic/iron
Connector: iron/brass

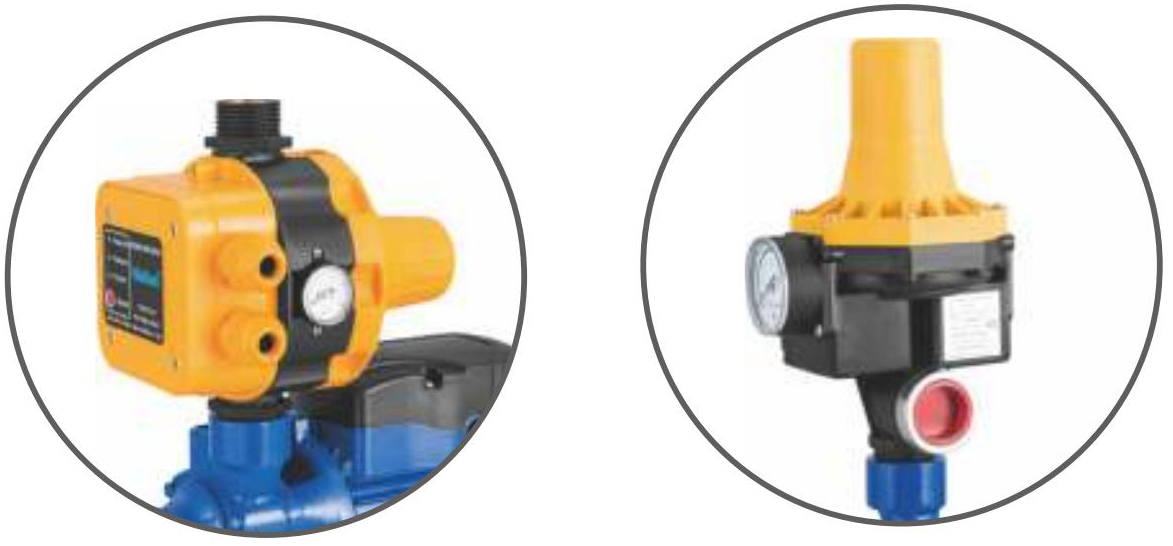

*Pressure switch
Model: PC-2/PC-9
*Flex.hose
Diameter: φ27 MM
Material: aluminium/stainless steel
Length: 50CM
Connector: 1" x 1"
*5 way connector
Material: 100% brass
Weight: 170g/200g

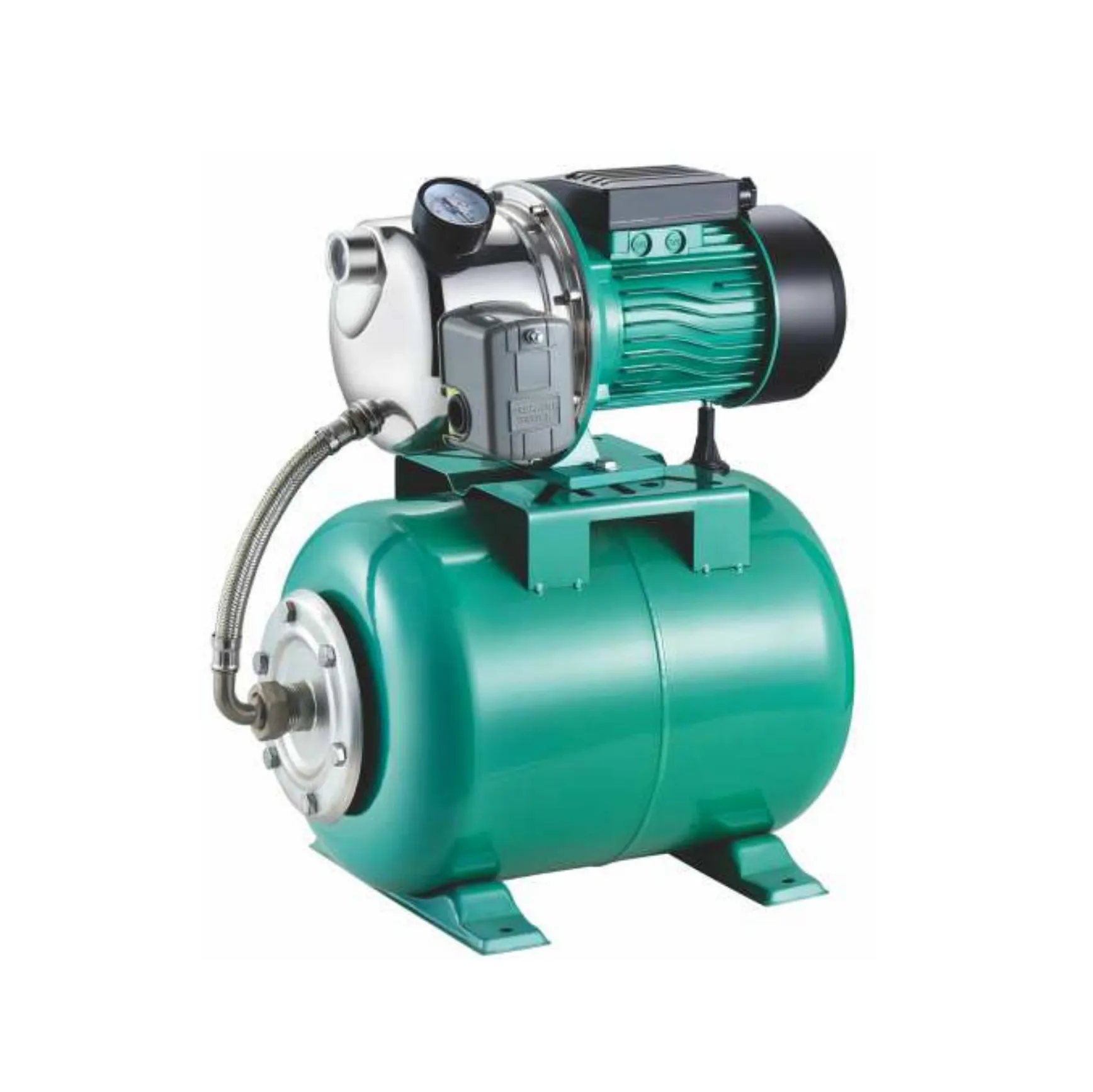

Pump Installation And Applications
This system is automatic pressurization units utilizing pumps from the JET, JDP, STP, DB, CPM ranges, They are supplied completely with tank( or electronic switch) , these systems provide sufficient water pressure for modern domestic appliances, ensuring sufficient water supply for all user outlets.
MODEL | POWER | MAX.FLOW | MAX.HEAD | MAX.SUCT | INLET/OUTLET | GW | PACKING | |
kW | HP | |||||||
AUSTP-45 | 0.55 | 0.75 | 45 | 36 | 9 | 1"x1" | 16 | 550x285x590 |
AUSTP-50 | 0.75 | 1.0 | 60 | 45 | 9 | 1"x1" | 17 | 550x285x590 |
AUSTP-60 | 0.90 | 1.2 | 60 | 48 | 9 | 1"x1" | 18 | 560x285x590 |
AUSTP-45P | 0.55 | 0.75 | 45 | 36 | 9 | 1"x1" | 16 | 550x285x590 |
AUSTP-50P | 0.75 | 1.0 | 60 | 45 | 9 | 1"x1" | 17 | 550x285x590 |
AUSTP-60P | 0.90 | 1.2 | 60 | 48 | 9 | 1"x1" | 18 | 560x285x590 |
