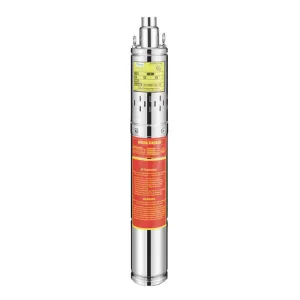

2/3QGD DEEP WELL SUBMERSIBLE PUMP

IDENTIFICATION CODE

2QG

2: Well diameter: 52mm(2")

QG : Pump name

D:Single motor(Three phase without D)

1:Capacity(m³/h)

60: Head(m)

0.25:Motor power(KW)

APPLICATIONS

For water supply from wells or reservoirs.

For domestic use, for civil and industrial applications.

For garden use and irrigation.

OPERATING CONDITIONS

Maximum fluid temperature up to +35 ℃.

Maximum sand content: 0.25%.

Maximum immersion: 100m.

Minimum well diameter: 2",3".

MOTOR AND PUMP

Rewindable motor or Full obturated screen motor

Three-phase: 380V-415V/50Hz

Single-phase: 220V-240V/50Hz

Equip with start control box or digital auto-control box

Pumps are designed by casing stressed

NEMA dimension standards

OPTIONS ON REQUEST

Special mechanical seal

Other voltages or frequency 60 Hz

PERFORMANCE DATA 50 HZ

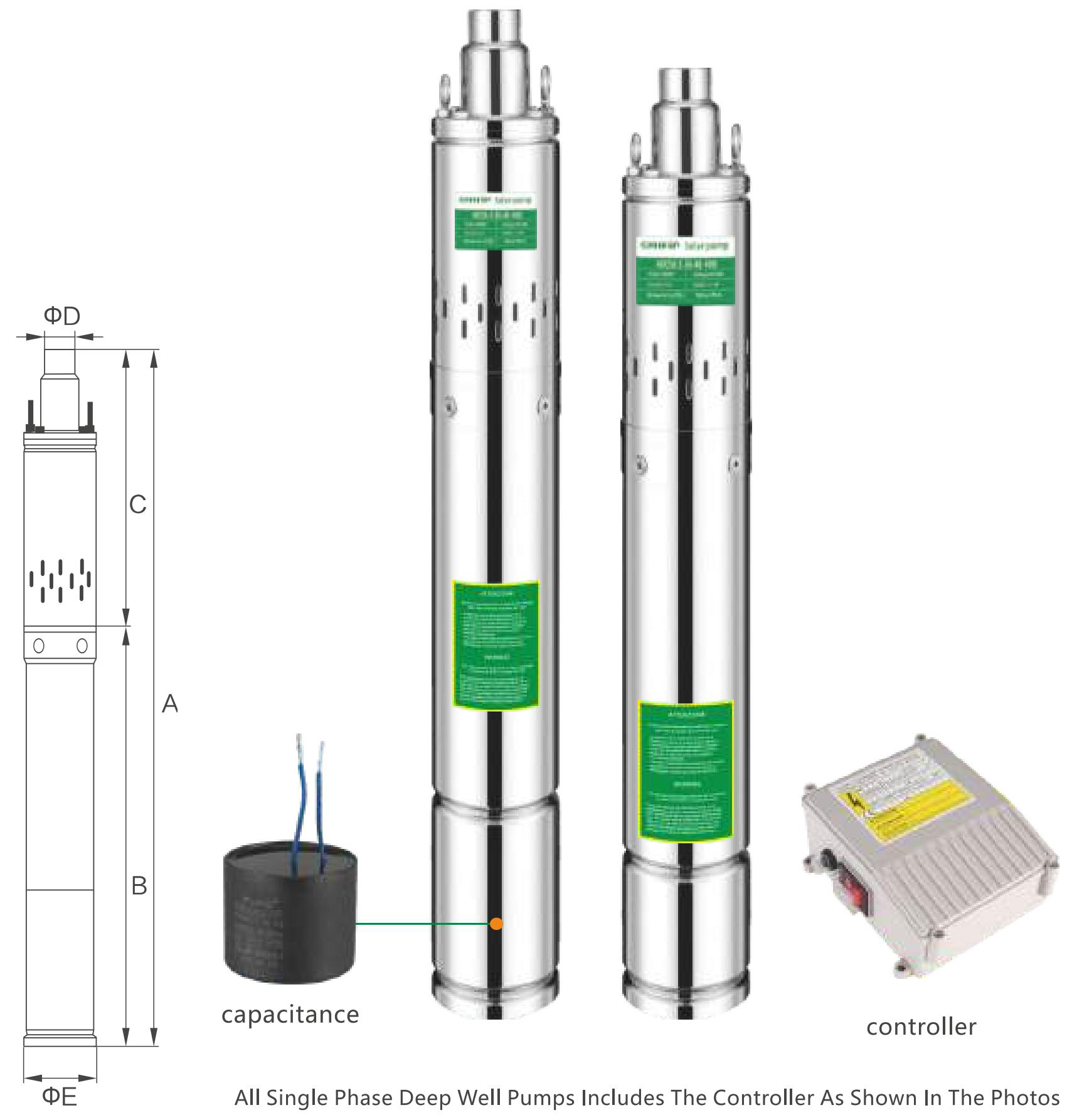

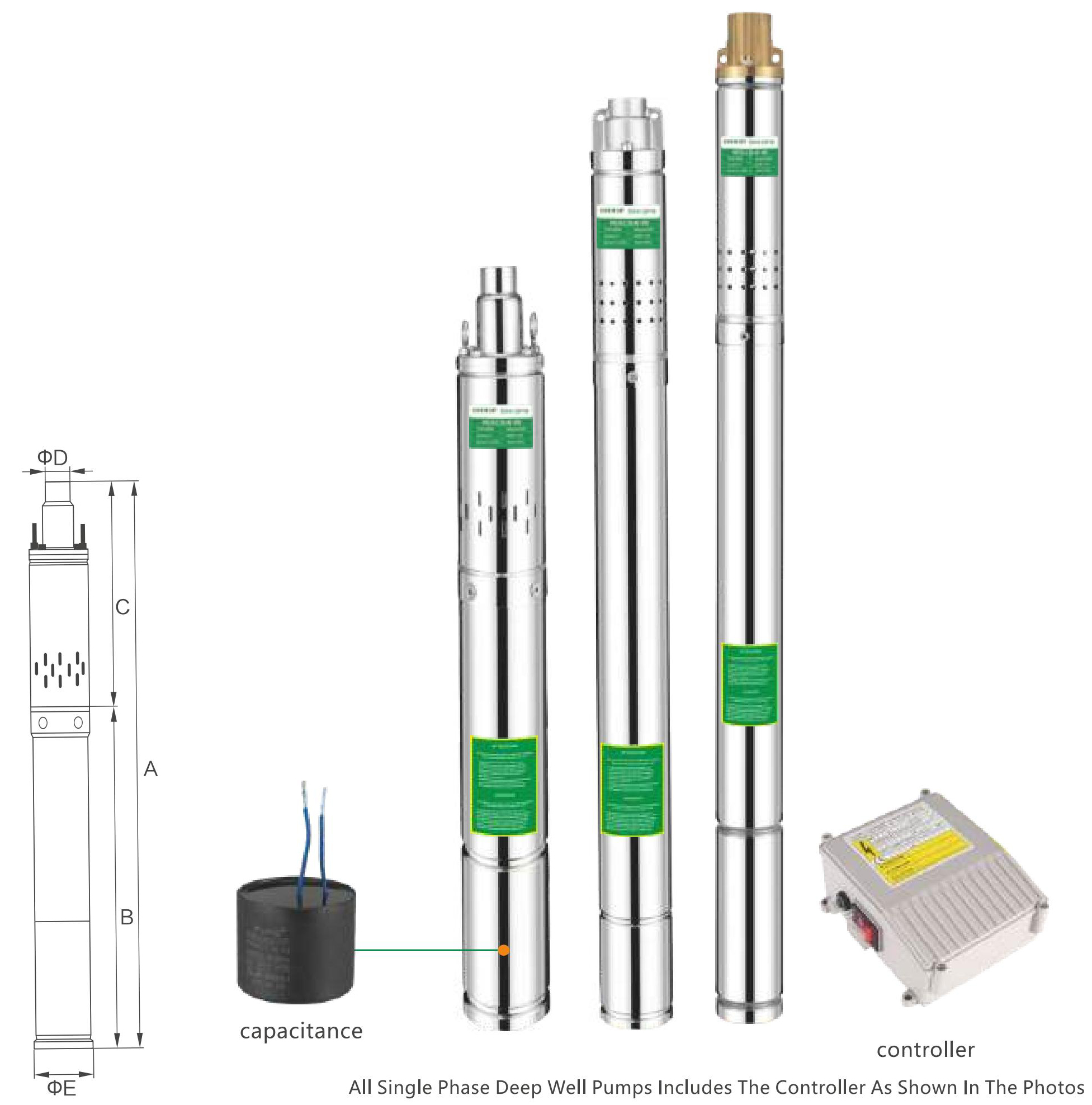

SIZE PARATEMER TABLE
MODEL	A	B	C	D	E
2QGD1-60-0.25	688	520	168	0.5"	Φ52
2QGD1.5-60-0.37	738	520	218	0.75"	Φ52
2QGD1.5-70-0.55	763	545	218	0.75"	Φ52
3QGD1.5-60-0.25	540	365	195	1"	Φ75
3QGD1.7-80-0.37	580	385	195	1"	Φ75
3QGD1.7-105-0.55	610	415	195	1"	Φ75
3QGD2-115-0.75	652	445	207	1"	Φ75

2/3QGD DEEP WELL SUBMERSIBLE PUMP

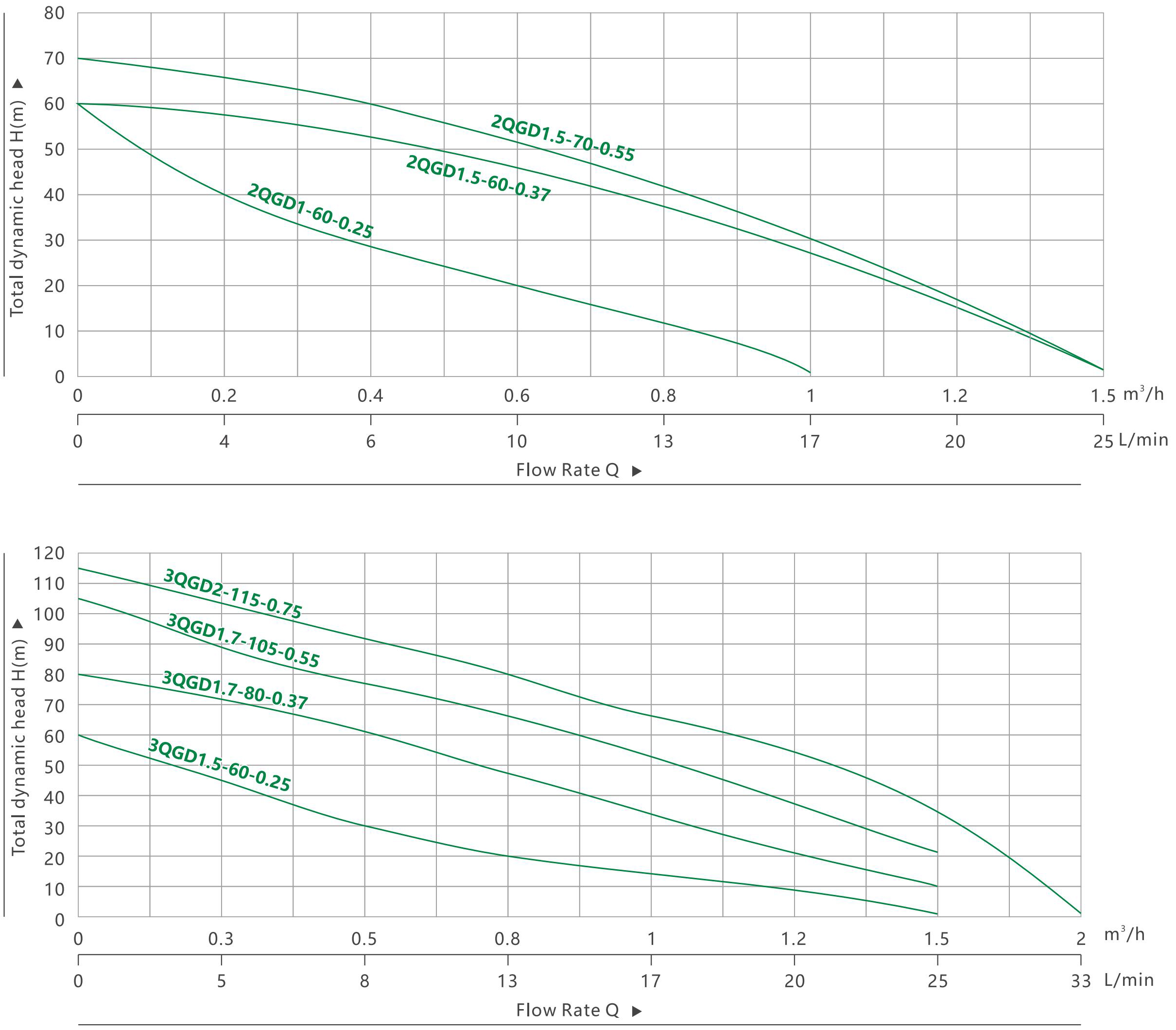

PERFORMANCE DATA 50 HZ

MODEL	P2		Q l/min m³/h	0	4	6	10	13	17	20	25
1~220V/240V	KW	HP	Q l/min m³/h	0	0.2	0.4	0.6	0.8	1	1.2	1.5
2QGD1-60-0.25	0.25	0.33	H(m)	60	40	29	20	12	1
2QGD1.5-60-0.37	0.37	0.5		60	57	53	46	34	22	12	1
2QGD1.5-70-0.55	0.55	0.75		70	65	60	52	42	30	16	1

MODEL	P2		Q l/min m³/h	0	5	8	13	17	20	25	33
1~220V/240V	KW	HP	Q l/min m³/h	0	0.3	0.5	0.8	1	1.2	1.5	2
3QGD1.5-60-0.25	0.25	0.33	H(m)	60	45	30	20	12	9	1
3QGD1.7-80-0.37	0.37	0.5		80	72	61	47	34	21	10
3QGD1.7-105-0.55	0.55	0.75		105	90	78	64	52	38	21
3QGD2-115-0.75	0.75	1.0		115	103	92	80	67	53	36	1

3.5/4QGD DEEP WELL SUBMERSIBLE PUMP

IDENTIFICATION CODE

3.5QG

3.5: Well diameter: 88mm(3.5")

QG : Pump name

D: Single motor(Three phase without D)

1: Capacity(m³/h)

50: Head(m)

0.37: Motor power(KW)

APPLICATIONS

For water supply from wells or reservoirs.

For domestic use, for civil and industrial applications.

For garden use and irrigation.

OPERATING CONDITIONS

Maximum fluid temperature up to +35 ℃.

Maximum sand content: 0.25%.

Maximum immersion: 100m.

Minimum well diameter: 3.5", 4".

MOTOR AND PUMP

Rewindable motor or Full obturated screen motor

Three-phase: 380V-415V/50Hz

Single-phase: 220V-240V/50Hz

Equip with start control box or digital auto-control box

Pumps are designed by casing stressed

NEMA dimension standards

OPTIONS ON REQUEST

Special mechanical seal

Other voltages or frequency 60 Hz

PERFORMANCE DATA 50 HZ

MODEL	A	B	C	D	E
3.5QGD1-50-0.37	580	382	198	1"	Φ88
3.5QGD1-60-0.5	606	392	214	1"	Φ88
3.5QGD1.8-50-0.75	621	407	214	1"	Φ88
4QGD1.2-50-0.37	583	343	240	1"	Φ96
4QGD1.2-60-0.55	647	363	284	1"	Φ96
4QGD1.2-100-0.75	667	383	284	1"	Φ96
4QGD1.5-120-1.1	737	453	284	1"	Φ96
4QGD1.8-50-0.55	609	363	246	1"	Φ96
4QGD1.8-80-0.75	667	383	284	1"	Φ96

3.5/4QGD DEEP WELL SUBMERSIBLE PUMP

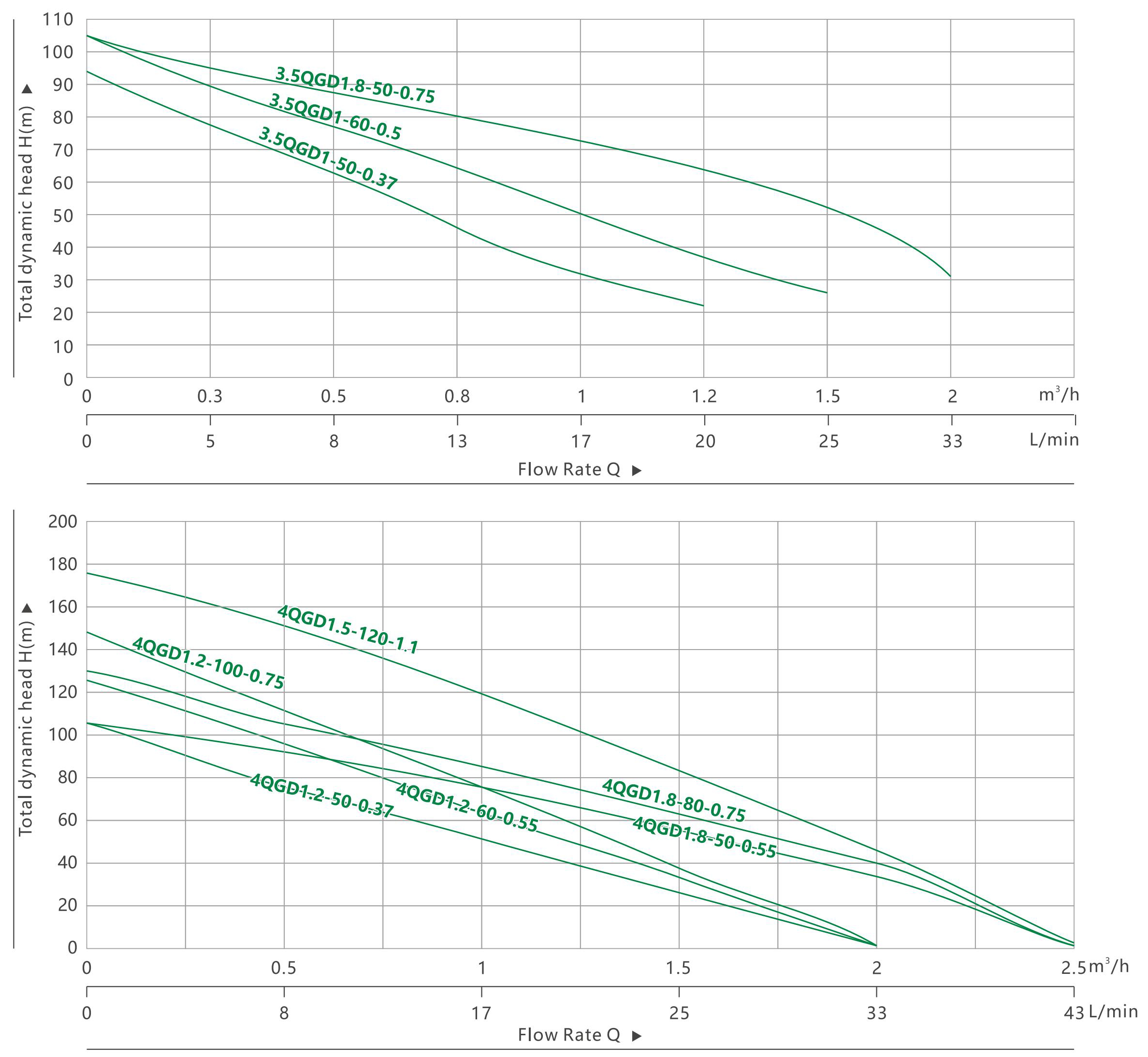

PERFORMANCE DATA 50 HZ

MODEL	P2		Q l/min m³/h	0	5	8	13	17	20	25	33
1~220V/240V	KW	HP	Q l/min m³/h	0	0.3	0.5	0.8	1	1.2	1.5	2
3.5QGD1-50-0.37	0.37	0.5	H(m)	93	74	64	46	33	22	1
3.5QGD1-60-0.5	0.5	0.75		105	86	77	62	51	45	28	1
3.5QGD1.8-50-0.75	0.75	1.0		105	95	88	78	73	62	57	32

MODEL	P2		Q l/min m³/h	0	8	17	25	33	43
1~220V/240V	KW	HP	Q l/min m³/h	0	0.5	1	1.5	2	2.5
4QGD1.2-50-0.37	0.37	0.5	H(m)	105	77	52	27	1
4QGD1.2-60-0.55	0.55	0.75		125	96	62	33	1
4QGD1.2-100-0.75	0.75	1.0		148	112	76	39	1
4QGD1.5-120-1.1	1.1	1.5		177	150	120	83	45	2
4QGD1.8-50-0.55	0.55	0.75		105	90	75	58	34	1
4QGD1.8-80-0.75	0.75	1.0		130	106	85	62	40	1
