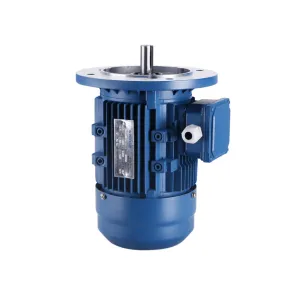

Y2 Series Three Phase Electric Motor

Y series motor, Y2 series motor improvement products, product performance and international IEC standards, has a novel structure, modeling beautiful, small vibration, low noise.

联系我们

在线询价

邮箱：sales1@chimppump.com

详细介绍

Product features

Y series motor, Y2 series motor improvement products, product performance and international IEC standards, has a novel structure, modeling beautiful, small vibration, low noise.

Application

Base center height：63-355mm

Power Range：0.12-315kw

Rated voltage：380V

Rated frequency：50Hz（or 60Hz）

Protection class：IP54（or IP55）

Insulation class：Grade F

Work system：S1

Technical Parameters

Type	Output(kw)	Rated speed (r/min)	Rated current (A)	Eff(%)	Power factor (cosφ)	Locked rotor torque/Rated torque	Locked rotor current/Rated current	Pull out torque /Rated torque
Synchronous Speed 3000r/m (2pole)
Y2-71M1-2	0.37	2740	0.99	70	0.81	6.1	2.2	2.2
Y2-71M2-2	0.55	2740	1.4	73	0.82	6.1	2.2	2.3
Y2-80M1-2	0.75	2835	1.83	77.4	0.83	6.1	2.2	2.3
Y2-80M2-2	1.1	2835	2.58	79.6	0.84	7.0	2.2	2.3
Y2-90S-2	1.5	2845	3.43	81.3	0.84	7.0	2.2	2.3
Y2-90L-2	2.2	2845	4.85	83.2	0.85	7.0	2.2	2.3
Y2-100L-2	3	2875	6.31	84.6	0.87	7.5	2.2	2.3
Y2-112M-2	4	2895	8.1	85.8	0.88	7.5	2.2	2.3
Y2-132S1-2	5.5	2905	11	87	0.88	7.5	2.2	2.3
Y2-132S2-2	7.5	2905	14.9	88.1	0.88	7.5	2.2	2.3
Y2-160M1-2	11	2935	21.3	89.4	0.89	7.5	2.2	2.3
Y2-160M2-2	15	2935	28.8	90.3	0.89	7.5	2.2	2.3
Y2-160L-2	18.5	2935	34.7	90.9	0.90	7.5	2.2	2.3
Y2-180M-2	22	2945	41	91.3	0.90	7.5	2	2.3
Y2-200L1-2	30	2955	55.5	92	0.90	7.5	2	2.3
Y2-200L2-2	37	2955	67.9	92.5	0.90	7.5	2	2.3
Y2-225M-2	45	2975	82.3	92.9	0.90	7.5	2	2.3
Y2-250M-2	55	2975	101	93.2	0.90	7.5	2	2.3
Y2-280S-2	75	2975	134	93.8	0.90	7.5	2	2.3
Y2-280M-2	90	2975	160	94.1	0.91	7.5	2	2.3
Y2-315S-2	110	2980	195	94.3	0.91	7.1	1.8	2.2
Y2-315M-2	132	2980	233	94.6	0.91	7.1	1.8	2.2
Y2-315L1-2	160	2980	279	94.8	0.92	7.1	1.8	2.2
Y2-315L2-2	200	2980	348	95	0.92	7.1	1.8	2.2
Y2-355M-2	250	2980	433	95	0.92	7.1	1.6	2.2
Y2-355L-2	315	2980	544	95	0.92	7.1	1.6	2.2
Synchronous Speed 1500r/m (4pole)
Y2-71M2-4	0.37	1330	1.12	67	0.74	5.2	2.1	2.2
Y2-80M1-4	0.55	1395	1.57	71	0.75	5.2	2.4	2.3
Y2-80M2-4	0.75	1395	2.03	79.6	0.76	6	2.3	2.3
Y2-90S-4	1.1	1405	2.89	81.4	0.77	6	2.3	2.3
Y2-90L-4	1.5	1405	3.7	82.8	0.79	6	2.3	2.3
Y2-100L1-4	2.2	1435	5.16	84.3	0.81	7	2.3	2.3
Y2-100L2-4	3	1435	6.78	85.5	0.82	7	2.3	2.3
Y2-112M-4	4	1445	8.8	86.6	0.82	7	2.3	2.3
Y2-132S-4	5.5	1445	11.7	87.7	0.83	7	2.3	2.3
Y2-132M-4	7.5	1445	15.6	88.7	0.84	7	2.3	2.3
Y2-160M-4	11	1460	22.3	89.8	0.84	7	2.2	2.3
Y2-160L-4	15	1460	30.1	90.6	0.85	7.5	2.2	2.3
Y2-180M-4	18.5	1470	36.5	91.2	0.86	7.5	2.2	2.3
Y2-180L-4	22	1470	43.2	91.6	0.86	7.5	2.2	2.3
Y2-200L-4	30	1470	57.6	92.3	0.86	7.2	2.2	2.3
Y2-225S-4	37	1485	69.9	92.7	0.87	7.2	2.2	2.3
Y2-225M-4	45	1485	84.7	93.1	0.87	7.2	2.2	2.3

Type	Output(kw)	Rated speed (r/min)	Rated current (A)	Eff(%)	Power factor (cosφ)	Locked rotor torque/Rated torque	Locked rotor current/Rated current	Pull out torque /Rated torque
Synchronous Speed 1000r/m (6pole)
Y2-80M1-6	0.37	890	1.3	62	0.70	4.7	1.9	2
Y2-80M2-6	0.55	890	1.79	65	0.72	4.7	1.9	2.1
Y2-90S-6	0.75	915	2.29	75.9	0.72	5.5	2	2.1
Y2-90L-6	1.1	915	3.18	78.1	0.73	5.5	2	2.1
Y2-100L-6	1.5	945	3.94	79.8	0.75	5.5	2	2.1
Y2-112M-6	2.2	945	5.6	81.8	0.76	6.5	2	2.1
Y2-132S-6	3	965	7.4	83.3	0.76	6.5	2.1	2.1
Y2-132M1-6	4	965	9.8	84.6	0.76	6.5	2.1	2.1
Y2-132M2-6	5.5	965	12.9	86	0.77	6.5	2.1	2.1
Y2-160M-6	7.5	975	17	87.2	0.78	6.5	2	2.1
Y2-160L-6	11	975	24.2	88.7	0.81	7	2	2.1
Y2-180L-6	15	975	31.6	89.7	0.81	7	2	2.1
Y2-200L1-6	18.5	975	38.6	90.4	0.83	7	2.1	2.1
Y2-200L2-6	22	975	44.7	90.9	0.84	7	2.1	2.1
Y2-225M-6	30	980	59.3	91.7	0.86	7	2	2.1
Y2-250M-6	37	980	71	92.2	0.86	7	2.1	2.1
Y2-280S-6	45	980	86	92.7	0.86	7	2.1	2
Y2-280M-6	55	980	105	93.1	0.86	7	2.1	2
Y2-315S-6	75	980	141	93.7	0.86	7	2	2
Y2-315M-6	90	980	169	94	0.86	7	2	2
Y2-315L1-6	110	980	206	94.3	0.86	6.7	2	2
Y2-315L2-6	132	980	244	94.6	0.87	6.7	2	2
Y2-355M1-6	160	985	292	94.8	0.88	6.7	1.9	2
Y2-355M2-6	200	985	365	95	0.88	6.7	1.9	2
Y2-355L-6	250	985	455	95	0.88	6.7	1.9	2
Y2-400M1-6	280	990	510	95.8	0.87	5.9	2.3	1.8
Y2-400M2-6	315	990	574	95.8	0.87	5.9	2.3	1.8
Synchronous Speed 750r/m (8pole)
Y2-90S-8	0.37	660	1.49	62	0.61	4	1.8	1.9
Y2-90L-8	0.55	660	2.18	63	0.61	4	1.8	2
Y2-100L1-8	0.75	680	2.39	71	0.67	4	1.8	2
Y2-100L2-8	1.1	680	3.32	73	0.69	5	1.8	2
Y2-112M-8	1.5	690	4.5	75	0.69	5	1.8	2
Y2-132S-8	2.2	690	6	78	0.71	6	1.8	2
Y2-132M-8	3	710	7.9	79	0.73	6	1.8	2
Y2-160M1-8	4	710	10.3	81	0.73	6	1.9	2
Y2-160M2-8	5.5	720	13.6	83	0.74	6	2	2
Y2-160L-8	7.5	720	17.8	85.5	0.75	6	2	2
Y2-180L-8	11	730	25.1	87.5	0.76	6.6	2	2
Y2-200L-8	15	730	34.1	88	0.76	6.6	2	2
Y2-225S-8	18.5	730	40.6	90	0.76	6.6	1.9	2
Y2-225M-8	22	740	47.4	90.5	0.78	6.6	1.9	2
Y2-250M-8	30	740	64	91	0.79	6.6	1.9	2
Y2-280S-8	37	740	78	91.5	0.79	6.6	1.9	2
Y2-280M-8	45	740	94	92	0.79	6.6	1.9	2
Y2-315S-8	55	740	111	92.8	0.81	6.6	1.8	2
Y2-315M-8	75	740	151	93	0.81	6.6	1.8	2
Y2-315L1-8	90	740	178	93.8	0.82	6.6	1.8	2
Y2-315L2-8	110	740	217	94	0.82	7.2	1.8	2
Y2-355M1-8	132	740	261	93.7	0.82	7.2	1.8	2
Y2-355M2-8	160	740	315	94.2	0.82	7.2	1.8	2
Y2-355L-8	200	740	388	94.5	0.83	7.2	1.8	2
Y2-400M1-8	250	745	494	95.0	0.81	6.2	2.3	1.8
Y2-400M2-8	280	745	552	95.0	0.82	6.2	2.3	1.8
Y2-400L1-8	315	745	592	95.0	0.85	6.2	2.3	1.8
