Product features

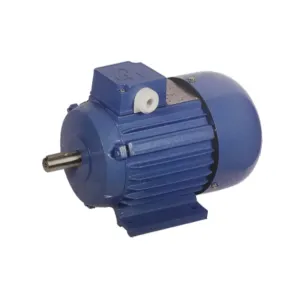

YS seires motor belongs to low power motor scope,which is designed and manufactured according to relevant national atandards and industry standards in combination with internation standards, and has many strong points with efficient,energysaving, low noise, low vibration,high starting torque, long life, easy maintenance etc.It' s extensively used on food machinery, textile machinery, fan ,machine tool liquid supply etc.
Technical Parameters
Type | Output(kw) | Rated current (A) | Rated speed (r/min) | Eff(%) | Power factor | Locked rotor torque | Locked rotor current | Pull out torque |
YS6312 | 180 | 0.53 | 2800 | 69 | 0.75 | 2.2 | ≤6 | 2.4 |
YS6322 | 250 | 0.67 | 2800 | 72 | 0.78 | 2.2 | ≤6 | 2.4 |
YS7112 | 370 | 0.95 | 2800 | 73.5 | 0.80 | 2.2 | ≤6 | 2.4 |
YS7122 | 550 | 1.35 | 2800 | 75.5 | 0.82 | 2.2 | ≤6 | 2.4 |
YS8012 | 750 | 1.75 | 2800 | 76.5 | 0.85 | 2.2 | ≤6 | 2.4 |
YS8022 | 1100 | 2.56 | 2800 | 76.5 | 0.85 | 2.2 | ≤6 | 2.4 |
YS6314 | 120 | 0.48 | 1400 | 60 | 0.83 | 2.3 | ≤6 | 2.4 |
YS6324 | 180 | 0.65 | 1400 | 64 | 0.60 | 2.3 | ≤6 | 2.4 |
YS7114 | 250 | 0.8 | 1400 | 67 | 0.68 | 2.3 | ≤6 | 2.4 |
YS7124 | 370 | 1.12 | 1400 | 69.5 | 0.72 | 2.3 | ≤6 | 2.4 |
YS8014 | 550 | 1.55 | 1400 | 73.5 | 0.73 | 2.3 | ≤6 | 2.4 |
YS8024 | 750 | 2.01 | 1400 | 75.5 | 0.75 | 2.3 | ≤6 | 2.4 |
YS90S-4 | 1100 | 2.75 | 1400 | 78.0 | 0.78 | 2.3 | ≤6.5 | 2.4 |
YS90L-4 | 1500 | 3.64 | 1400 | 79.0 | 0.79 | 2.3 | ≤6.5 | 2.4 |
