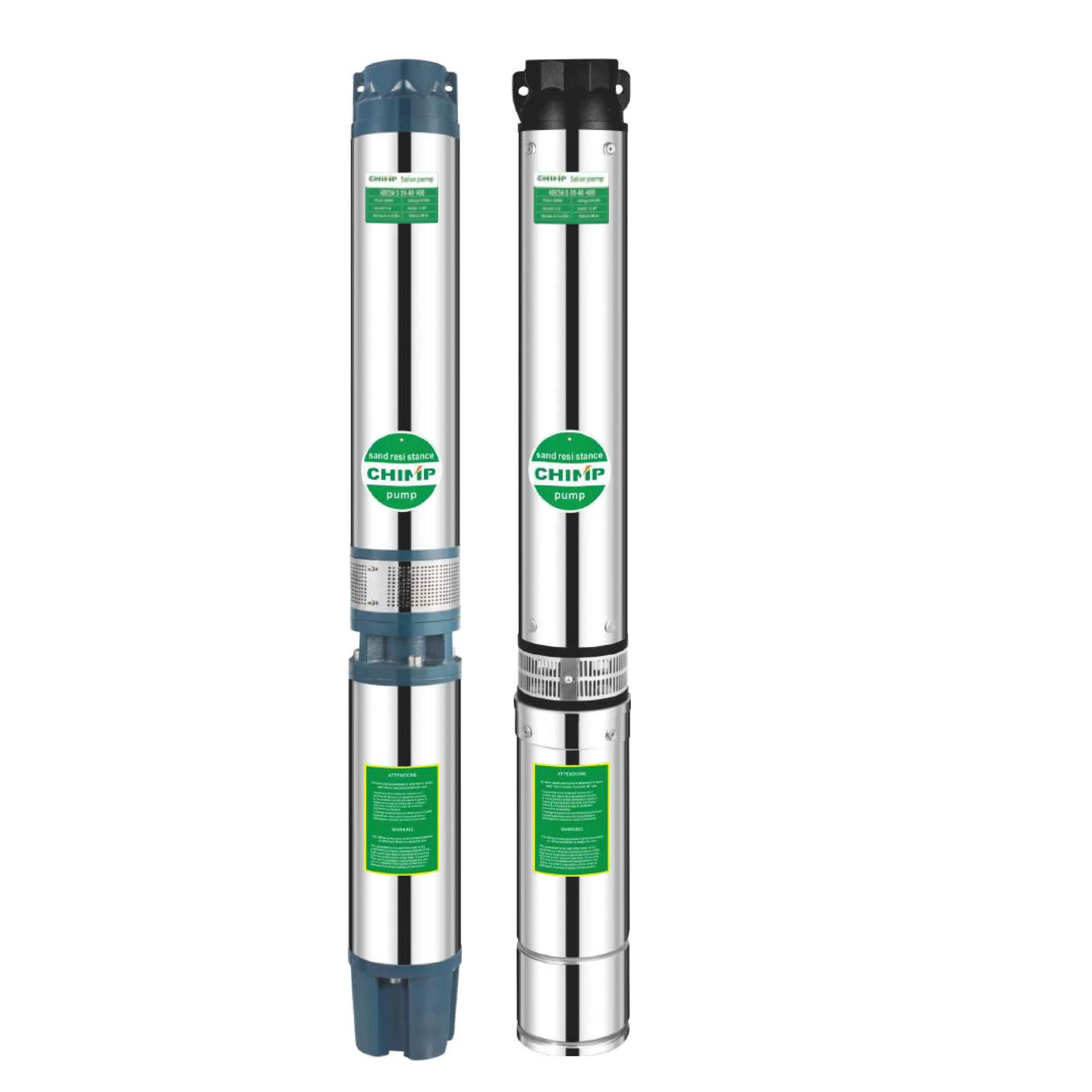

6SR Borehole Pump

6SR Borehole Pump

6SR Borehole Pump

APPLICATIONS For water supply from wells or reservoirs. For domestic use, for civil and industrial applications. For garden use and irrigation.

分享：

邮箱：sales1@chimppump.com

详细介绍

IDENTIFICATION CODE

6SR

6: Well diameter: 148mm(6")

SR:SR Series submersible pump

18: Capacity(m³/h)

5: Stage

APPLICATIONS

For water supply from wells or reservoirs.

For domestic use, for civil and industrial applications.

For garden use and irrigation.

OPERATING CONDITIONS

Maximum fluid temperature up to +35°C

Maximum sand content: 0.25%

Maximum immersion: 100m

Minimum well diameter: 6"

MOTOR AND PUMP

Rewindable motor or full obturated screen motor

Three-phase:220V-380V/60HZ

Equip with start control box or digital auto-control box

Pumps are designed by casing stressed

NEMA dimension standards

OPTIONS ON REQUEST

Special mechanical seal

Other voltages or frequency 50 Hz

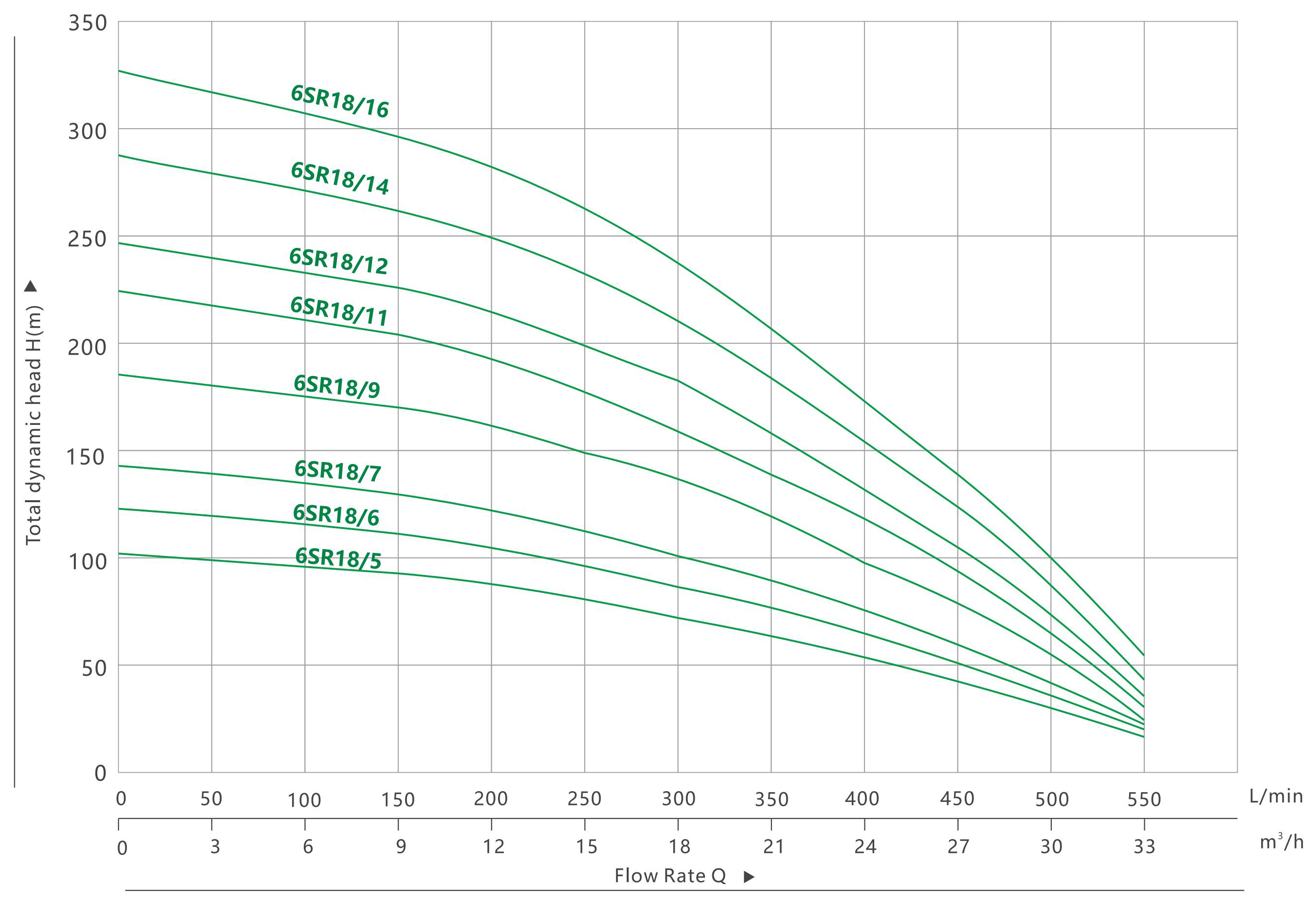

PERFORMANCE DATA 60 HZ

MODEL	Power		Flow
MODEL	KW	HP	l/min m³/h	0	50	100	150	200	250	300	350	400	450	500	550
3~220v/380v	KW	HP	l/min m³/h	0	3	6	9	12	15	18	21	24	27	30	33
6SR18/5	5.5	7.5	H(m)	102	99	96	93	88	80	72	63	53	42	30	17
6SR18/6	7.5	10		123	120	116	111	105	96	86	76	65	51	35	20
6SR18/7	9.2	12.5		143	139	135	130	122	112	101	89	76	59	42	22
6SR18/9	11	15		185	180	174	170	161	149	137	119	98	79	55	24
6SR18/11	13	17.5		224	218	211	204	193	176	158	139	130	93	65	30
6SR18/12	15	20		247	239	232	226	215	198	183	158	130	105	74	36
6SR18/14	18.5	25		288	278	270	263	250	231	213	184	151	122	86	42
6SR18/16	22	30		328	320	309	296	280	256	229	203	173	136	93	53

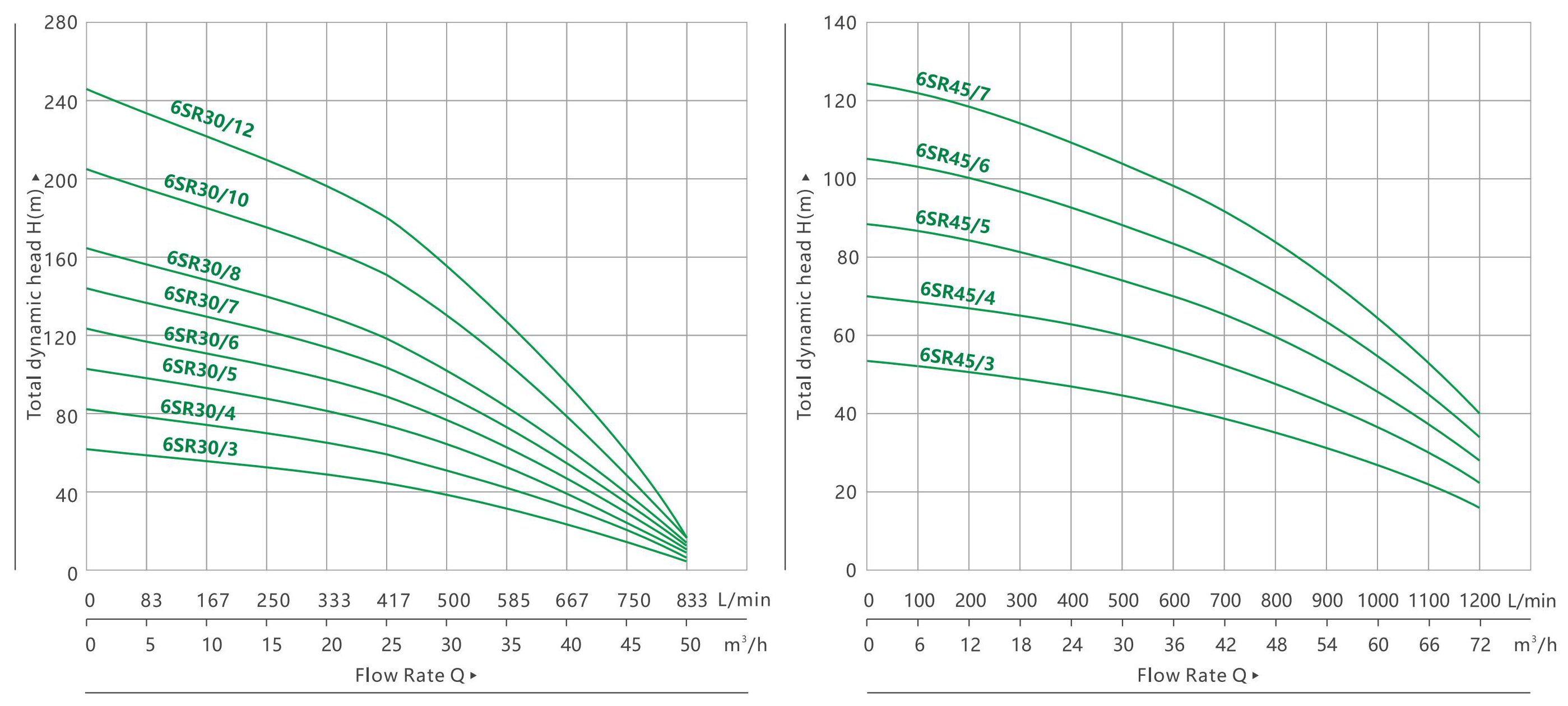

PERFORMANCE DATA 60 HZ

MODEL	Power		Flow
MODEL	KW	HP	l/min m³/h	0	83	167	250	333	417	500	585	667	750	833
3~220v/380v	KW	HP	l/min m³/h	0	5	10	15	20	25	30	35	40	45	50
6SR30/3	5.5	7.5	H(m)	62	58	55	53	49	44	39	31	23	14	4
6SR30/4	7.5	10		82	78	74	70	66	59	51	42	31	21	6
6SR30/5	9.2	12.5		103	98	93	88	82	74	65	52	39	24	9
6SR30/6	11	15		124	117	111	105	98	89	77	63	47	29	11
6SR30/7	13	17.5		144	137	130	123	114	104	90	73	55	34	13
6SR30/8	15	20		165	156	148	140	131	118	103	84	62	39	14
6SR30/10	18.5	25		206	195	185	175	164	148	129	105	78	49	18
6SR30/12	22	30		246	234	222	210	198	177	153	126	93	63	18

MODEL	Power		Flow
MODEL	KW	HP	l/min m³/h	0	100	200	300	400	500	600	700	800	900	1000	1100
3~220v/380v	KW	HP	l/min m³/h	0	6	12	18	24	30	36	42	48	54	60	66
6SR45/3	7.5	10	H(m)	53	52	50	49	46	45	42	39	36	32	27	22
6SR45/4	11	15		70	69	67	65	62	60	56	52	48	42	36	29
6SR45/5	15	20		88	86	84	82	77	75	70	65	60	53	46	36
6SR45/6	18.5	25		106	103	101	98	92	89	84	78	72	64	55	43
6SR45/7	22	30		123	121	117	114	109	105	98	91	84	74	63	51

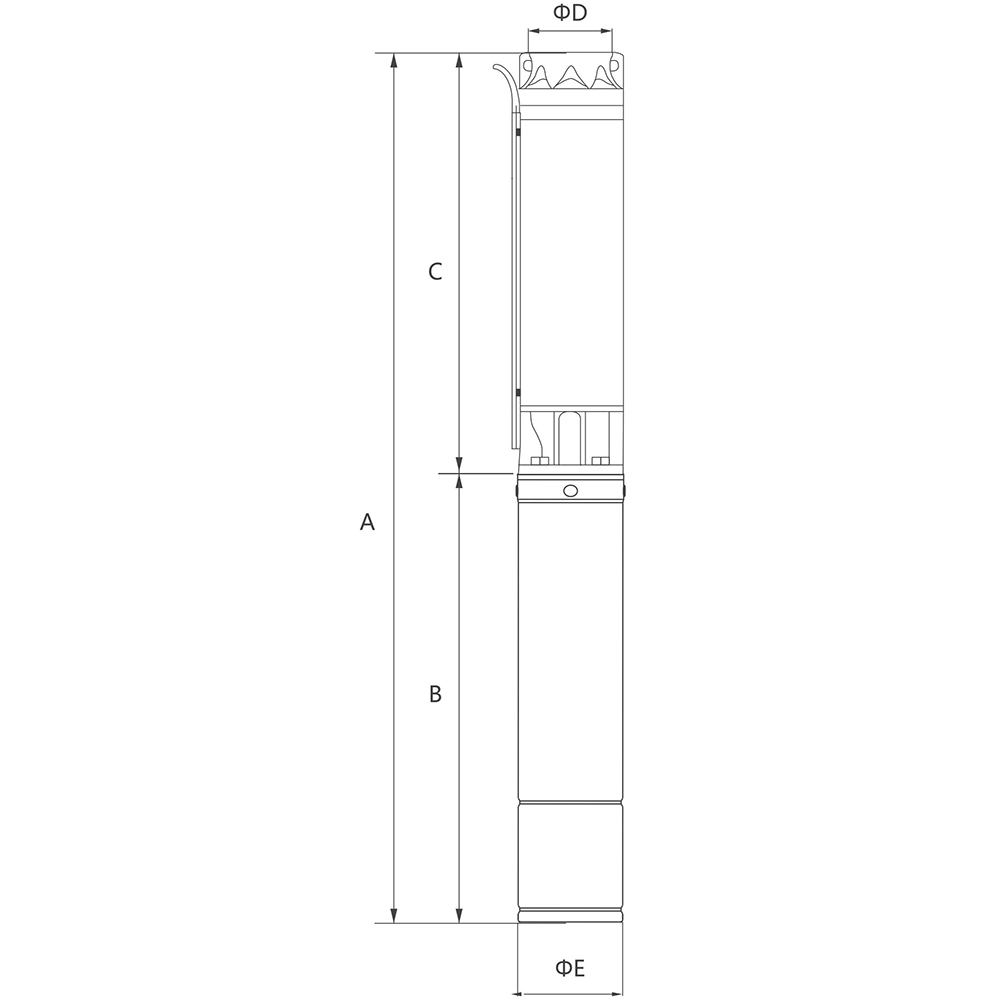

OVERALL DIMENSIONS

MODEL	A	B	C	D	E
SIZE PARATEMER TABLE
6SR18/5	1154	521	633	3"	Φ145
6SR18/6	1264	586	678	3"	Φ145
6SR18/7	1361	638	723	3"	Φ145
6SR18/9	1513	701	812	3"	Φ145
6SR18/11	1651	751	900	3"	Φ145
6SR18/12	1765	821	944	3"	Φ145
6SR18/14	1870	836	1034	3"	Φ145
6SR18/14	2115	991	1124	3"	Φ145
6SR18/16	2115	991	1124	3"	Φ145
6SR30/3	1093	521	572	3"	Φ145
6SR30/4	1211	586	625	3"	Φ145
6SR30/5	1317	638	679	3"	Φ145
6SR30/6	1433	701	732	3"	Φ145
6SR30/7	1537	751	786	3"	Φ145
6SR30/8	1660	821	839	3"	Φ145
6SR30/10	1781	836	945	3"	Φ145
6SR30/12	2042	991	1051	3"	Φ145
6SR45/3	1210	586	624	3"	Φ145
6SR45/4	1437	701	736	3"	Φ145
6SR45/5	1669	821	848	3"	Φ145
6SR45/6	1796	836	960	3"	Φ145
6SR45/7	2063	991	1072	3"	Φ145
