PRODUCT FEATURES
• With high efficiency permanent magnetic motor,efficiency improved by 15%-30%.
• Environmental protection,clean energy,can be powered by both solar panel and battery.
• Over-load protection,under-load protection,lock-rotor protection,thermal protection.
• With MPPT function.
• Much longer life than the normal AC Water pump.
SCOPE OF APPLICATION
Widely used in agriculture irrigation, drinking water and living water supplying

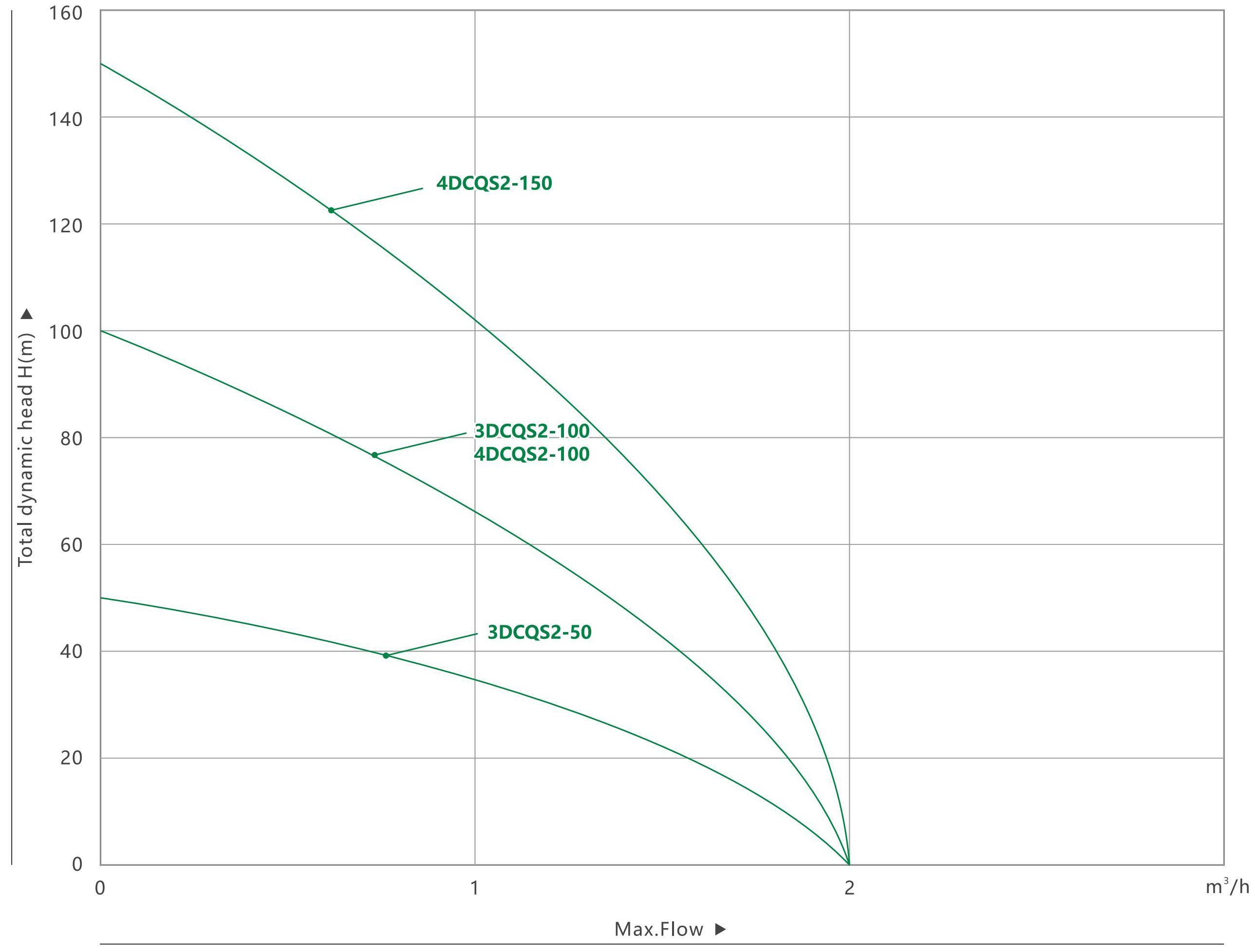

PERFORMANCE DATA
ITEM | Voltage (V) | Best DC Voltage (V) | Power (W) | Max.Flow (m³/h) | Max.Head (m) | Outlet (inch) | Cable (m) | Solar panel | |
open voltage | Power | ||||||||
3DCQS2-50-24-300 | 24 | 30-48 | 300 | 2 | 50 | 1" | 2 | <50V | ≥450W |
3DCQS2-100-48-750 | 48 | 60-90 | 750 | 2 | 100 | 1" | 2 | <100V | ≥1100W |
4DCQS2-100-48-600 | 48 | 60-90 | 600 | 2 | 100 | 1" | 2 | <100V | ≥900W |
4DCQS2-150-72-1000 | 72 | 90-120 | 1000 | 2 | 150 | 1" | 2 | <150V | ≥1500W |
