Description

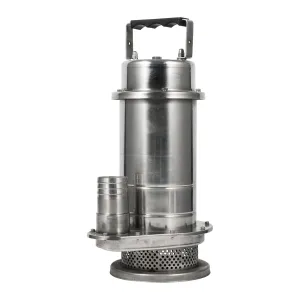

QDX-G and QX-G type stainless steel submersible pump (hereinatter referred to electric pump) is combined with three parts: pump, seal and motor. Motor can be produced with single-phase or three-phase. This series have an exquisite appearance which could both made of precision casting and stainless steel casing, anti-rust, corrosion resistant, no pollution and etc. Adopt advanced mechanical seal structure between pump and motor. High-quality rubber materials for both seal and cable, protected for the safety and healthy. This series of pumps are with A and B two models. Type A is stainless steel stretch forming structure and type B is precision casting structure.

Application

This series is a small size, light weight, good cooling, anti-rust and corrosion, which is widely used in majority of rural underground pumping, irrigation, garden watering, household and also can be used to exclude industrial water, construction drainage, aquaculture and many other occasions.

Operating conditions

Liquid temperature≤60℃

Liquid PH: From 6 to 9

Volume ratio of solid impurities in the liquid≤0.1%, size of particle is≤0.2mm

Rated voltage fluctuation range is 0.9-1.1 times.

Diving Depth≤5m, The part of motor which is out of the liquid should not more than half of the motor
