Pump
Max.immersion depth:5m
Max.liquid temperature: +40 ℃
Liquid pH valve:4-10
Liquid kinematic viscosity: 7×10-7-23×10-6m2/s
Max.liquid density:1.2×103kg/m³
Motor
Copper winding
Built-in thermal protector
Shaft: Stainless steel welded shaft/45# steel shaft
Insulation Class: B or F
Protection class: IPX8
Pump Installation And Features
Wastewater drainage in factories, construction sites and commercial facilities.
Drainage system in municipal sewage treatment plants
Drainage station in residential quarters.
Municipal projects.
Methane pools and field irrigation in countryside.

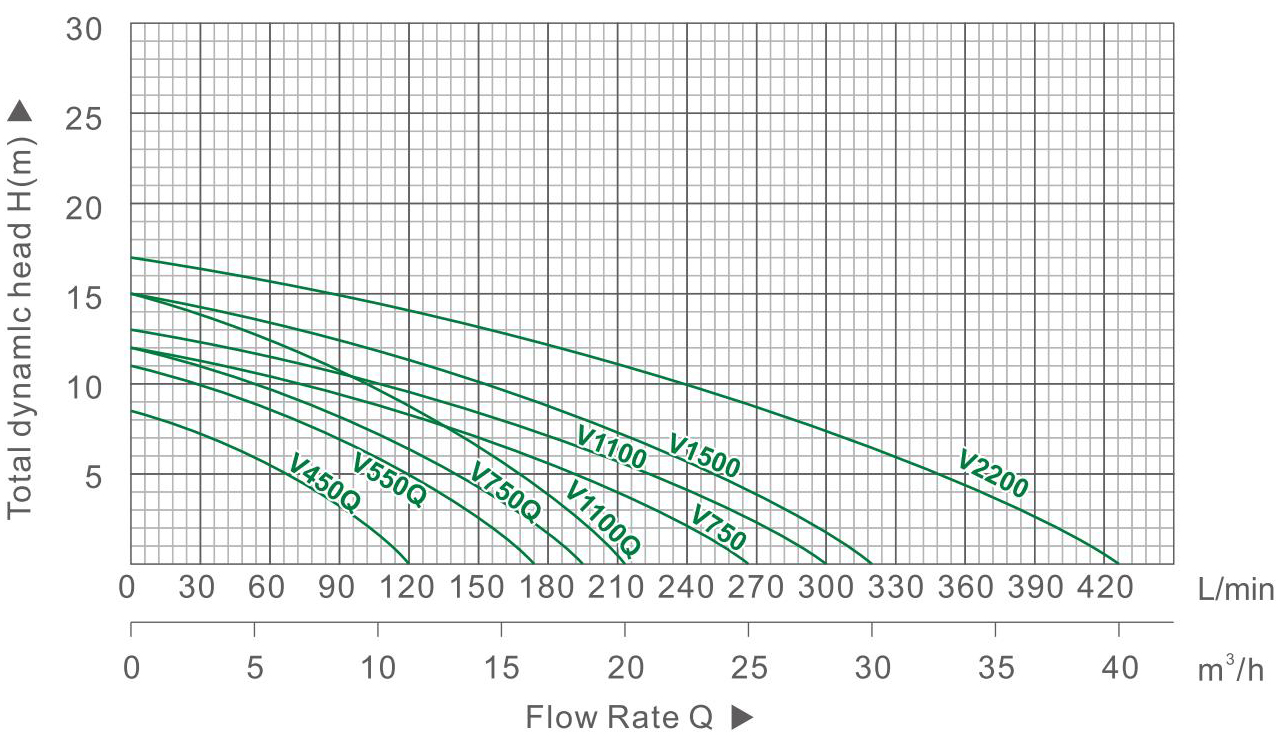

Performance Chart At N=2850rpm
MODEL | POWER | MAX.FLOW | MAX.HEAD | OUTLET | GW | PACKING | |
kW | HP | ||||||
V180Q | 0.18 | 0.25 | 8 | 7 | 1/2" | 10 | 260×195×400 |
V250Q | 0.25 | 0.33 | 9 | 7.5 | 1/2" | 11 | 260×195×400 |
V450Q | 0.45 | 0.6 | 12 | 8.5 | 1" | 14.5 | 260×195×500 |
V550Q | 0.55 | 0.75 | 16 | 11 | 2" | 16.5 | 280×205×440 |
V750Q | 0.75 | 1 | 18 | 12 | 2" | 17.5 | 280×205×450 |
V1100Q | 1.1 | 1.5 | 20 | 15 | 2" | 19 | 280×205×485 |
V1500Q | 1.5 | 2 | 22 | 15 | 2" | 22 | 280×205×495 |
V2200Q | 2.2 | 3 | 27 | 18 | 2" | 27 | 525×195×270 |
V750 | 0.75 | 1 | 25 | 12 | 2" | 260×240×430 | |
V1100 | 1.1 | 1.5 | 28 | 13 | 2" | 19.5 | 260×240×430 |
V1500 | 1.5 | 2 | 30 | 15 | 2" | 23.5 | 260×240×440 |
V2200 | 2.2 | 3 | 40 | 17 | 3" | 22 | 350×250×590 |
V1100D | 1.1 | 1.5 | 20 | 9 | 2" | 35 | 270×225×560 |
V1300D | 1.3 | 1.75 | 23 | 12 | 2" | 23.5 | 350×280×590 |
