Pump
Rust-free copper inserts prevent impeller's block when starting after the pump is unused for a long time.
Brass impeller with evenly arranged radial vanes
Max.liquid temperature: 35℃ or 60℃
Max. Suction: + 8m
Cast iron pump body and support
Motor
Motor with copper winding
Shaft:Stainless steel welded shaft/45# steel shaft
Insulation class:B or F
Protection class:IP x4
Max.Ambient temperature: + 40 ℃
Cooling:External ventilation
Pump Installation And Application
It can be used to transfer clean water or other liquids similar to water in physical and chemical properties. It is suitable for small living watersupply, automatic water sprinkler system, small air conditioner system and supporting equipment etc.
MODEL | POWER | MAX.FLOW | MAX.HEAD | MAX.SUCT | INLET/OUTLET | GW | PACKING | |
kW | HP | |||||||
PS-126 | 0.37 | 0.5 | 33 | 33 | 8 | 1"×1" | 9.7 | 300×205×295 |
AUPS-126 | 0.37 | 0.5 | 33 | 33 | 8 | 1"×1" | 9.7 | 300×205×295 |
AUPS138 | 0.37 | 0.5 | 35 | 30 | 8 | 1"×1" | 9.7 | 300×205×295 |

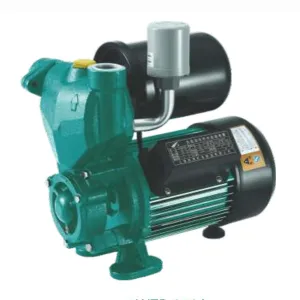

1WZB-125A | 0.125 | 0.17 | 30 | 24 | 8 | 1"×1" | 9.1 | 310×220×283 |
1WZB-250A | 0.25 | 0.33 | 32 | 28 | 8 | 1"×1" | 10.2 | 310×220×283 |
1WZB-370A | 0.37 | 0.50 | 35 | 32 | 8 | 1"×1" | 10.5 | 310×220×283 |
1WZB-550A | 0.55 | 0.75 | 45 | 38 | 8 | 1"×1" | 12.7 | 320×245×340 |
1WZB-750A | 0.75 | 1.0 | 55 | 44 | 8 | 1"×1" | 13.5 | 320×245×340 |
1WZB-1100A | 1.1 | 1.5 | 80 | 50 | 8 | 1 ½"×1 ½" | 16.3 | 370×275×370 |
