Pump
Max. liquid temperature:≤50℃
Liquid PH value:6.5-8.5
Cast iron pump body and support
Motor
Copper winding
Shaft: Stainless steel welded shaft /45# steel shaft
Insulation class:B or F
Protection class: IPX4
Environment temperature:≤50℃
Pump Installation And Application

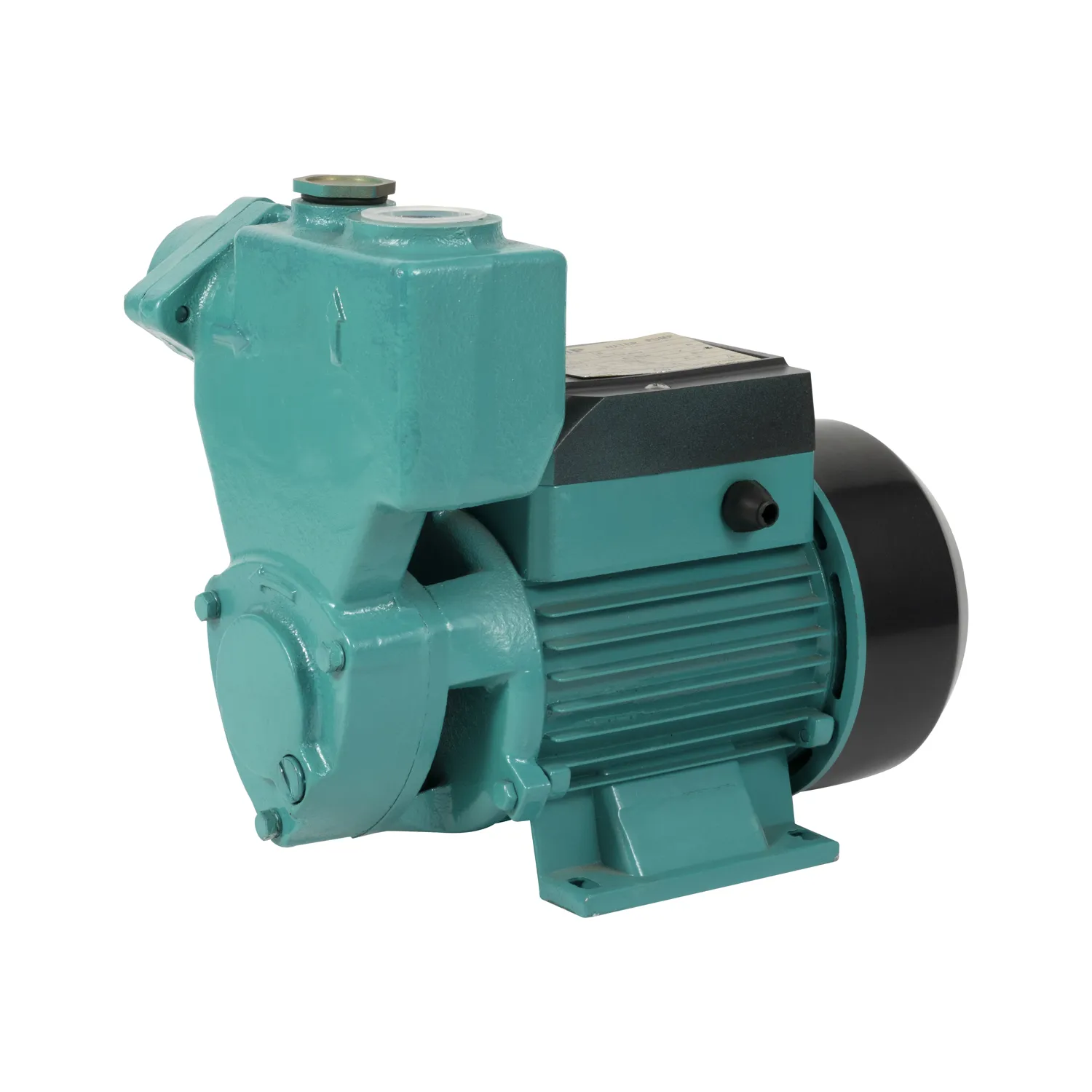

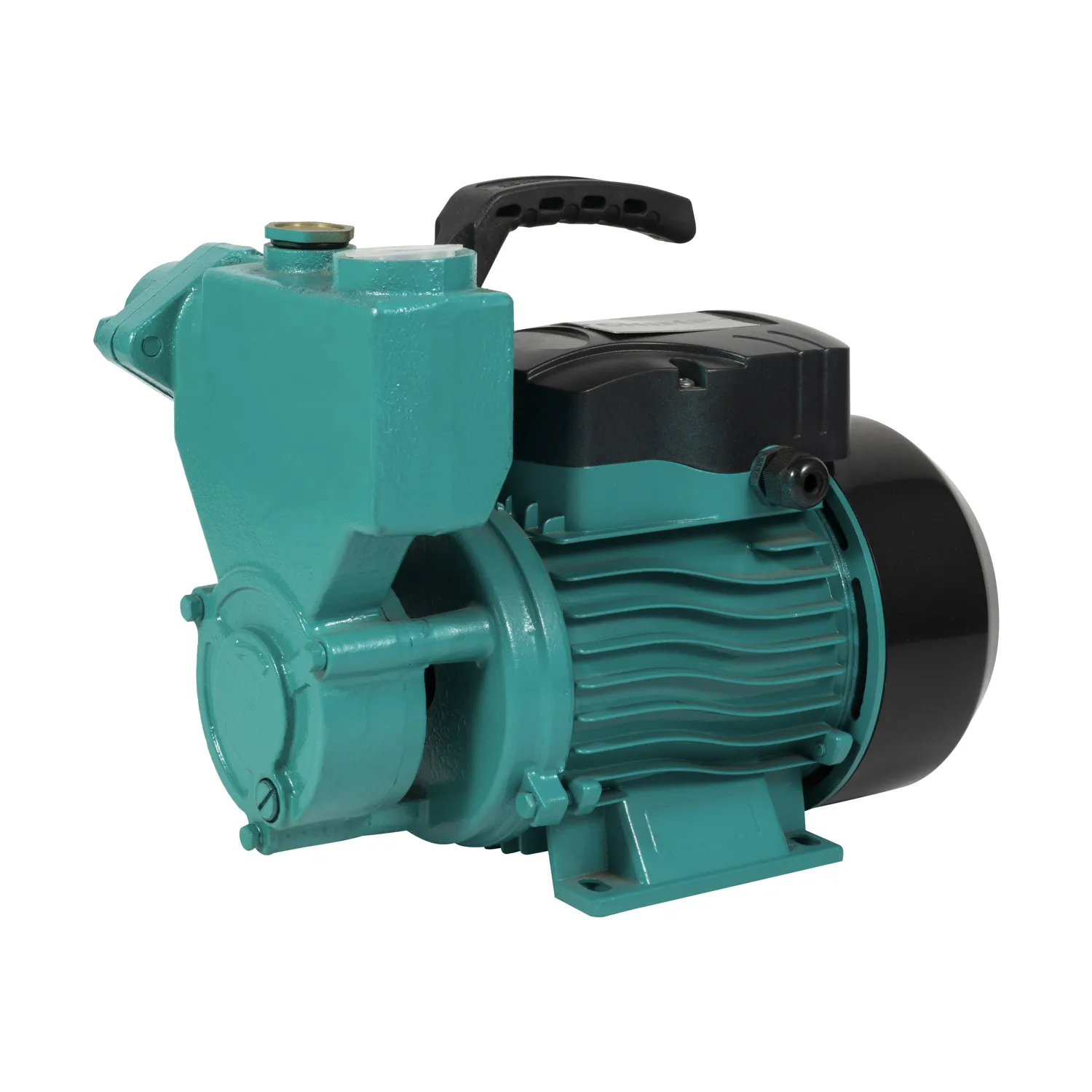

This series of vortex type Electric Water Pump is combined with pump,motor and mechanical seal. It has self-priming function. They are widely used in domestic, well water lifting, water booster, irrigation and etc.
MODEL | POWER | MAX.FLOW | MAX.HEAD | RATED.FLOW | RATED.HEAD | MAX.SUCT | INLET/OUTLET | |
kW | HP | |||||||
QTS-60 | 0.37 | 0.5 | 2.1 | 35 | 1 | 15 | 8 | 25 |
QTS-70 | 0.55 | 0.75 | 2.7 | 55 | 1.5 | 20 | 8 | 25 |
QTS-80 | 0.75 | 1.0 | 3.0 | 65 | 2 | 25 | 8 | 25 |
1WZB-15 | 0.37 | 0.5 | 3.5 | 35 | 1 | 15 | 8 | 25 |
1WZB-20 | 0.55 | 0.75 | 3.5 | 45 | 1.5 | 20 | 8 | 25 |
1WZB-25 | 0.75 | 1.0 | 3.5 | 55 | 2 | 25 | 8 | 25 |
1WZB-30 | 0.75 | 1.0 | 3.5 | 65 | 2 | 30 | 8 | 25 |
1.5WZB-30 | 1.1 | 1.5 | 5 | 65 | 3 | 30 | 8 | 40 |
